2016 china wholesale copper solid wire for power supply

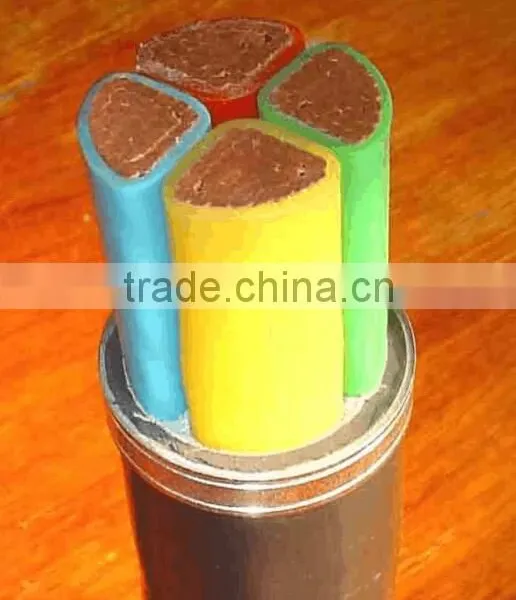

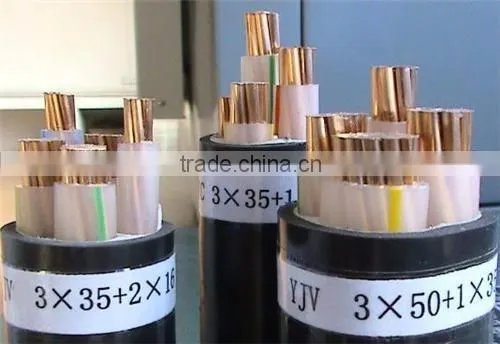

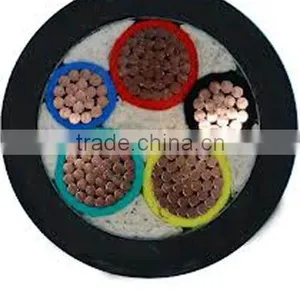

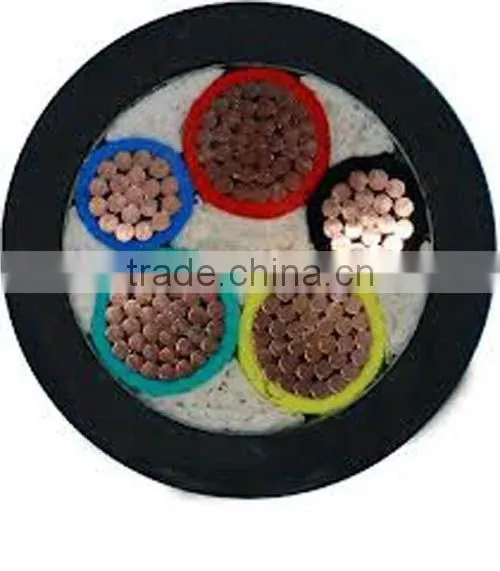

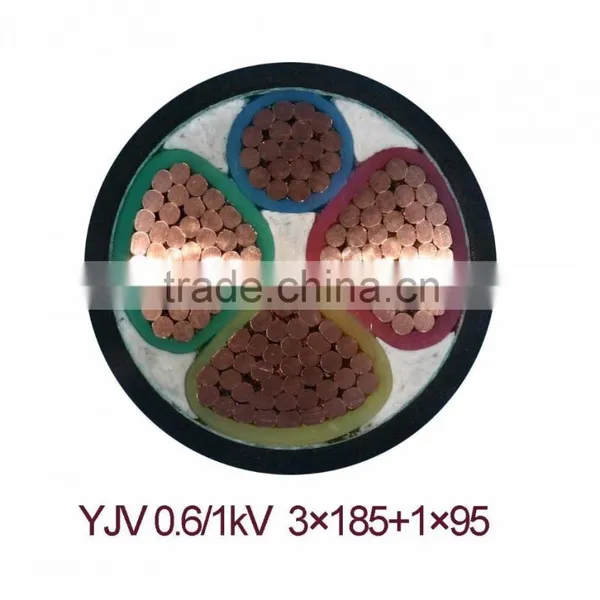

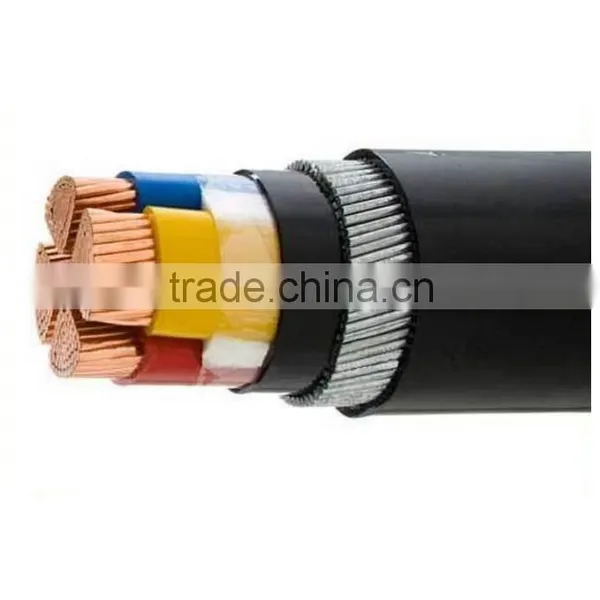

The picture of cross linked polyethylene insulation power cable
The desprition of cross linked polyethylene insulation power cable
Characteristics of Cable
1.Max Long-time operating temperature of PVC insulated cable is 70°C,XLPE 90°C
2.Installing temperature of cable should not be less than 0°C
3.Max short-circuit temperature is:PVC not exceed 160°C,XLPE 250°C,Not more than5 Sec.
4.Permitting bending radius cable: Not less than 10 D times (D:external diameter of cable)
5.Perfect chemical stability, resistant against acids, alkali, grease and organic solvents, and flamer retardant.
Type and Specifiction
PVC Insulation Electric Cable
TYPE |
Description of Cable
|
Main Applications
|
|
CU core |
AL core |
||
VV |
VLV |
Copper/Aluminium core,PVC insulated,PVC sheathed power cable |
Non-armoured PVC cable are suited for laying indoors,In cable trench,On cable racks and in pipes. Unable bear external pressures and tensions. |
VY |
VLY |
Copper/Aluminium core,PVC insulated,PE sheathed power cable |
|
VV22 |
VLV22 |
Copper/Aluminium core,PVC insulated,steel tape armored,PVC sheathed power cable |
Steel-tape armoured PVC cables are suited for vertical burial.Can bear moderate positive pressures,Unable bear tension forces. |
VV23 |
VLV23 |
Copper/Aluminium core,PVC insulated,steel tape armored,PE sheathed power cable |
|
VV32 |
VLV32 |
Copper/Aluminium core,PVC insulated,thin steel wire armored,PVC sheathed power cable |
Thin steel wire armoured PVC cables are used in case of great difference of levels or vertical installation and Can do vertical burial.Can bear moderate positive pressures and tension forces. |
VV33 |
VLV33 |
Copper/Aluminium core,PVC insulated,thin steel wire armored,PE sheathed power cable |
|
VV42 |
VLV42 |
Copper/Aluminium core,PVC insulated,thick steel wire armored,PVC sheathed power cable |
Thick steel wire armoured PVC cables are suited for vertical installation and can be laid water or sea-bottom.Can bear greater positive pressures and tension forces. |
VV43 |
VLV43 |
Copper/Aluminium core,PVC insulated,thick steel wire armored,PE sheathed power cable |
|
XLPE Insulated electric cable
Type |
Description |
Application |
|
Cu Core |
Al Core |
||
|
YJV ZR-YJV |
YJLV ZR-YJLV |
Cu(Al)Core, XLPE Insulated, PVC Sheathed Power Cable Cu(Al)Core, XLPE Insulated, PVC Sheathed flame- retardant Power Cable |
Can be laid in indoor, outdoor, tunnels, cable channels, reinforced concrete pipelines and loose soil. Cable should not bear outer mechanic force, but can bear a certain tractional force. |
|
YJV22 ZR-YJV22 |
YJLV22 ZR-YJLV22 |
Cu(Al)Core, XLPE Insulated, Steel Tape Armored and PVC Sheathed Power Cable Cu(Al)Core, XLPE Insulated, Steel Tape Armored and PVC Sheathed flame- retardant Power Cable |
Laid underground. Cable can bear outer mechanic force, but should not bear large tractional force. |
|
YJV32 ZR-YJV32 |
YJLV32 ZR-YJLV32 |
Cu(Al)Core, XLPE Insulated, Steel Wire Armored and PVC Sheathed Power Cable Cu(Al)Core, XLPE Insulated, Steel Wire Armored and PVC Sheathed flame- retardant Power Cable |
Laid in indoor, tunnels and mines. Cable can bear outer mechanic force and fairly large tractional force. |
|
YJV42 ZR-YJV42 |
YJLV42 ZR-YJLV42 |
Cu(Al)Core, XLPE Insulated, Steel Wire Armored and PVC Sheathed Power Cable Cu(Al)Core, XLPE Insulated, Steel Wire Armored and PVC Sheathed flame- retardant Power Cable |
Can be laid in vertical section, indoor, tunnels and mines. Cable can bear outer mechanic force and very large tractional force. |
Company Introduction
Changfeng Wire & Cable Co., Ltd. was build in 1996, Domestic Sales Head Office is located in Beijing, International Trading Department is in Jinan, and the factory is located in Sha River Bridge Industrial Park, Hejian City, Hebei Province, covering an area of more than 178,000 square meters, the first phase construction area is 78,000 square meters more, registered capital 18 Million USD, project investment 81.8 Million USD. We professionally have engaged in Cable manufacturing for 18 years, our products cover: Power Cable, Mineral Insulated Flexible Fire Proof Cable, Alloy Cable, and ESP Cable for Oil Wells. We are approved by the State Administration for Industry and Commerce bareheaded administrative divisions, with the collection of cable research and development, production, sales in the integration of large international company.
Main Products
LV Power Cable & Control Cable / MV (35kV & below 35kV) Power Cable/ Armoured cable / Signal Cable / Flexible Cable/ Aerial Cable / Building Wire / Aluminum Alloy Cable / UL Wire
ESP Power Cable & Motor Lead Extension Cable / Fireproof cable / Mine Cable / Marine Cable / Railway Vehicle Cable / Rubber Cable etc.
