high precision cold rolled slitter line
Technical parameters:
| 1. | application | Cold rolled steel coils, Galvanzied steel |
| 2. | Thickness of coiled plate | 0.3-3mm |
| 3. | Width of coiled plate | 1500mm |
| 4. | width tolerance | ±0.05mm/2M |
| 5. | Slitting speed | 0-120m/min |
| 6. | Loading capacity | 15T |
| 7. | Coil I.D | 480-510mm |
| 8. | Coil O.D | ≤1800mm |
| 9. | Knife pivot diameter of slitting | 200mm |
| 10. | Slitting blade | 200×340×20 |
| 11. | Material of slitting blade | 6CrW2Si |
| 12. | Hardness of blade | HRC58°—60° |
| 13. | Recoiler I.D | 508mm |
| 14. | Power | 380V three-phase 50Hz |
| 15. | Size | 30mx8m |

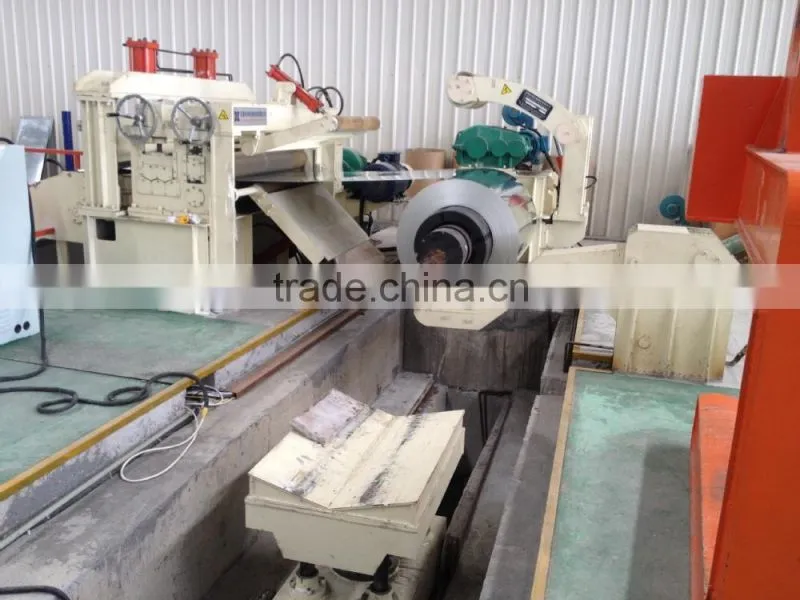

Composed device:
1.Hydraulic coil car
2.Hydraulic decoiler
3.Hydraulic guiding and press, pinch and pre-leveling device
4.Head-cutting machine
5.Looper I
6.Slitting machine
7.Scrap winder
8. Looper II
9.Tension stand---damping device for pre-dividing and pressing
10.Recoiler
11.Hydraulic unload car
12.Elecronic control system
13.Hydraulic system
Brief description of JPX 2x850 automatic high speed straightening machine, straightener:

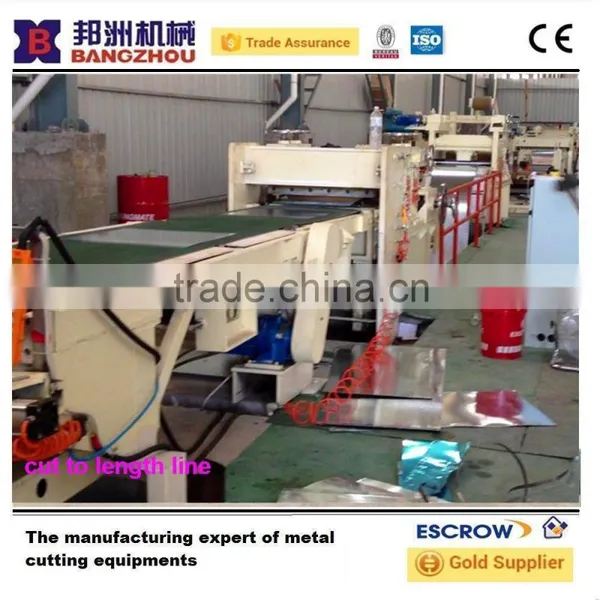

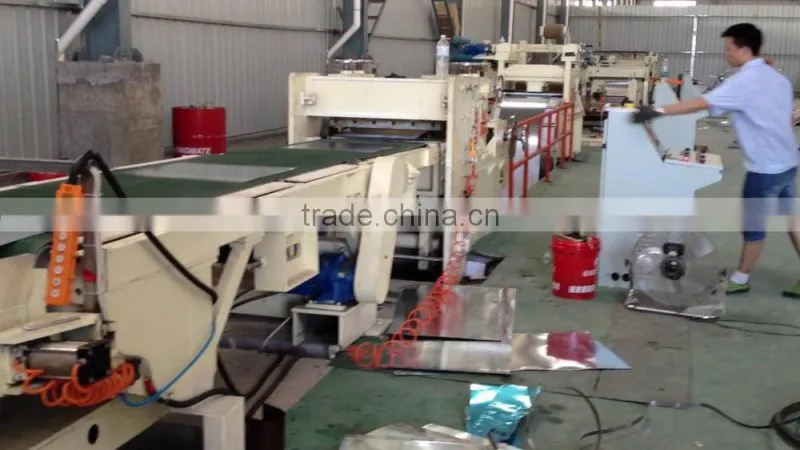

Cut to length line is used for producing flat sheet from steel coils.
This automatic cut to length line is a integration of mechanical, electrical, hydraulic and pneumatic technology. It is easy to operate, and has high production efficiency. It is capable of processing CR coils, HR coils, stainless coils, and colored or plated coils.
2.layout of CTL series
1.Installation:The seller will send technician to buyer's factory, and the buyer should pay for the flight and the food and accommodation. Pay for 80 USD per day for each people .
2.Service promise: The supplier designs and makes the equipment with quality guarantee period of one year. The supplier will provide free maintenance while quality guarantee period,
except for the human mechanical fault; and collect only the part costs and the travel expense of the serviceman
About us
Wuxi Bangzhou Machinery Manufacturing Co., Ltd. is located in Changjing Industrial Park, Jiangyin, Wuxi with beautiful environment and very convenient transportation. We are one of the most professional machinery manufacturers in China
Our main products are Steel coil slitting lines, cut to length lines, Straightening machines, Automatic crosscut units and Hydraulic shearing machines.
Welcome to visit us as them!
workshop:

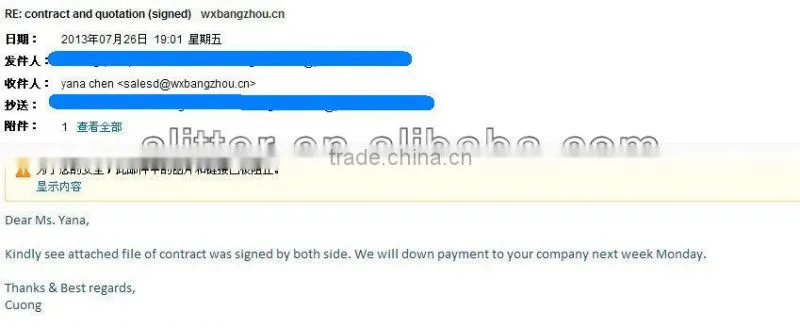

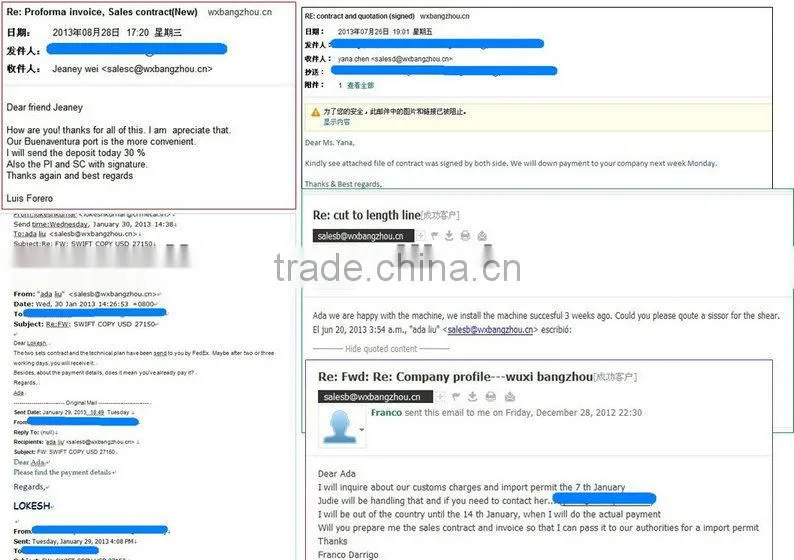

Customer feedback:
What’s more, equipment can be specially designed and manufactured according to the customer’s requirements.
