Technical parameters of 14mm new automatic steel coil straightening and cut to length line
a. application: hot rolled coiles
b. tensile strength : δb≤510Mpa
c. material thickness : 4-14mm
d. material width: 2000mm(Max)
e. coil I.D: φ600-φ800mm
f. coil O.D: φ2200mm(Max)
g. coil weight : 30(Max)
h. diameter of leveling roller: φ180mm
i. distance of leveling roller: 190mm
j. material of leveling roller: 42CrMo, hardness: HRC52-60
2. Other parameters
a. power: 380V/50Hz/3Ph
b. line speed: 0-25m/min
c. total power: about 160Kw
d. area of the producing line(about): 35m (length) X8m (width)
e. operators: one skilled worker and two general workers
f. color of the equipment: as your wish
Composed devices of 14mm new automatic steel coil straightening and cut to length line
- V-shaped coil stacker
- Hydraulic entry coil car
- Hydraulic two head de-coiler
- Press and pinch and feed device
- Transition table
- Side guide device
- Straightening machine
- PLC fixed length control device
- End plate pinch device
- 14mmx2000mm shear machine
- Working table and feeder
- Unload table
- Hydraulic system
- Electrical system
Brief introduction of 14mm new automatic steel coil straightening and cut to length line:
ZJPX-(3-12)×2000 Straightening and cut to length line, mainly used for the uncoiling ,slitting, straightening and cutting to length of carbon steel rolls and preparing the materials for the next processing units

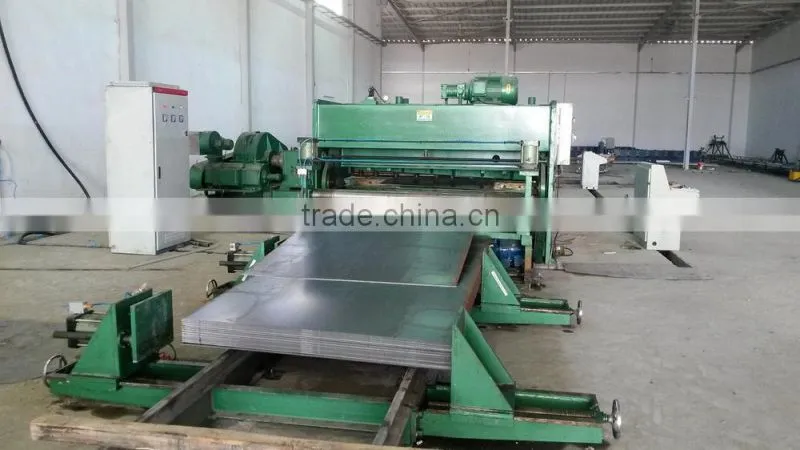

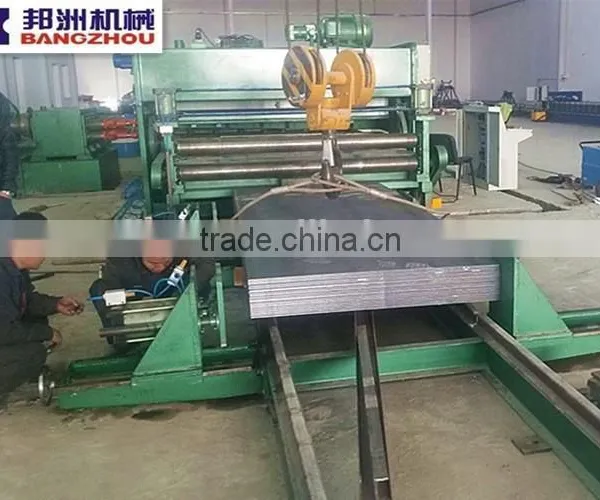

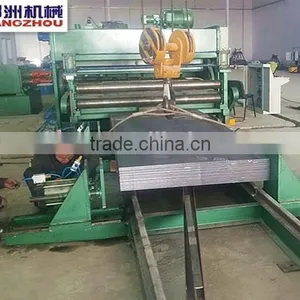

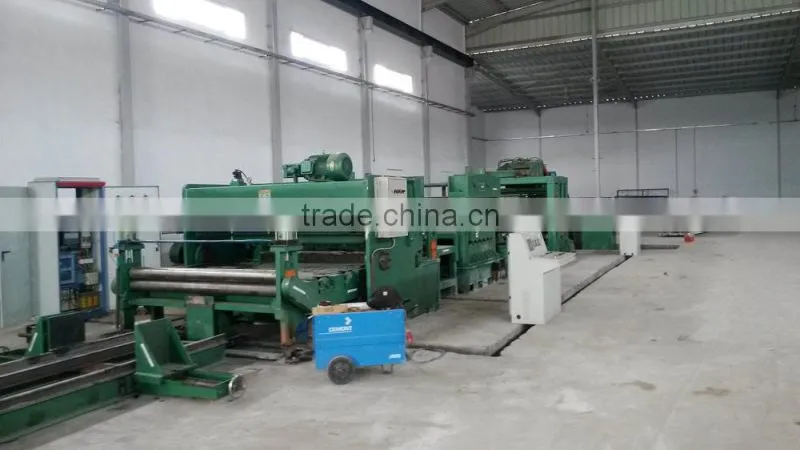

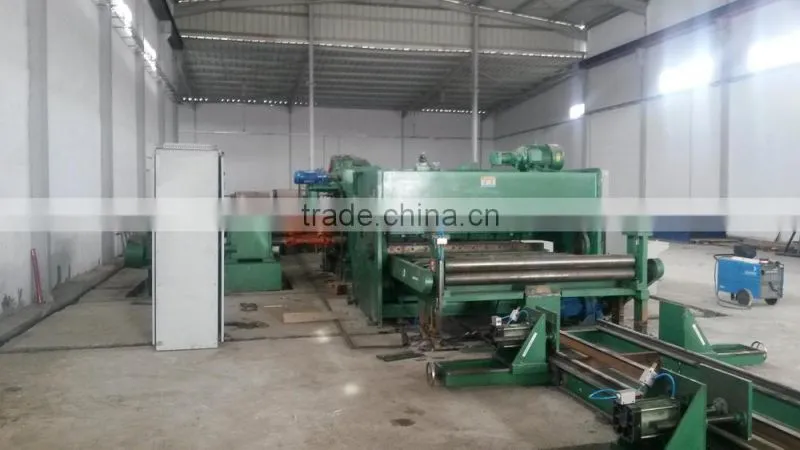

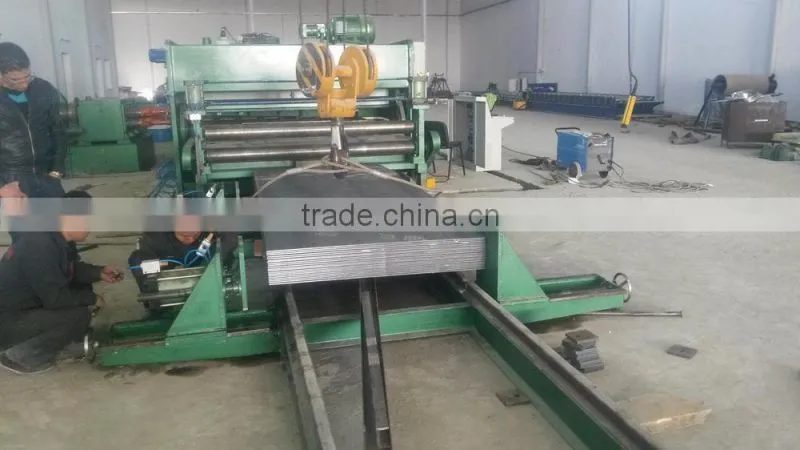

The pictures of 14mm new automatic steel coil straightening and cut to length line:

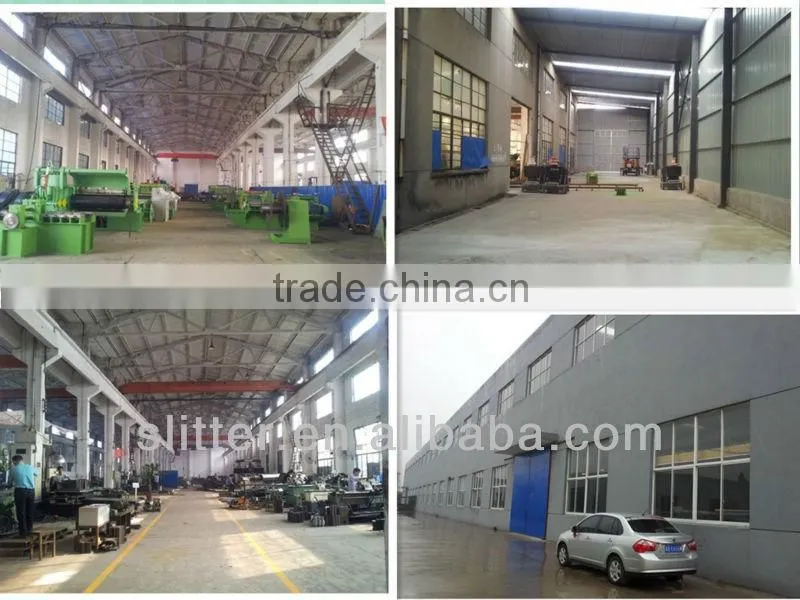

Company information:
Wuxi Bangzhou Machinery Manufacturing Co., Ltd. is located in Changjing Industrial Park, Jiangyin, Wuxi with beautiful environment and very convenient transportation. We are one of the most professional machinery manufacturers in China, integrating design, production, sale and after-sales services.
Our main products are Steel coil slitting lines, cut to length lines, Straightening machines, Automatic crosscut units and Hydraulic shearing machines. Our products are supplied to cold rolling and pipe welding factories and our machine can be also applied to other industril field which connect to the metal material.
With our best service and machines' high quality,we have gained a great reputation in the field and our products are exported to many countries and regions, such as Southeast Asia, Europe, America and Africa.
We welcome all friends to visit us. We are sincerely looking forward to receive your guidance and business cooperation!
What's more, the machine can be designed according to client's special requirment ,the above parameter for referance only.
