Technical Parameters:
- Thickness of coiled plate: 0.5-2mm carbon steel plate ;
- Width of coiled plate: 500-850mm;
- Coil I.D: 508mm;
- Coil E.D: 1600mm;
- Weight of coiled plate: 8T;
- Width of cut to length: 850mm;
- Precision of leveling length tolerance: ±0.5mm/2000mm;
- diagonal tolerance: ±1mm/2000mm;
- unevenness is according to GB stipulations
- Cut to length line: 500-2500mm;
- Material of leveling roller: GCr15;
- Diameter of leveling roller: φ65mm;
- Distance of leveling roller: 70mm;
- Quantity of leveling roller: 17+2
- Hardness of leveling roller surface: HRC56°—60°;
- Leveling speed: 0-60m/min.
- Line length: 2600mm.
♦ hydraulic entry coil car
♦ hydraulic decoiler
♦ straightener with code fixed length cutting system
♦ 2.5x750 hydraulic cutter
♦ stacker with pneumatic
♦ pneumatic system
♦ hydraulic system
♦ electrical system
♦ cable and oil pipe and others
Brief description:

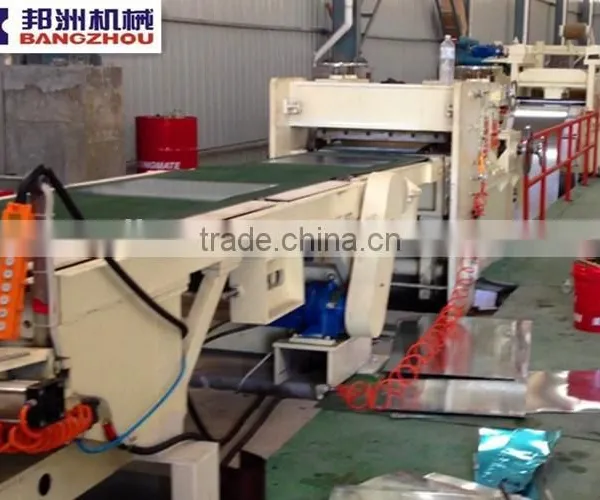

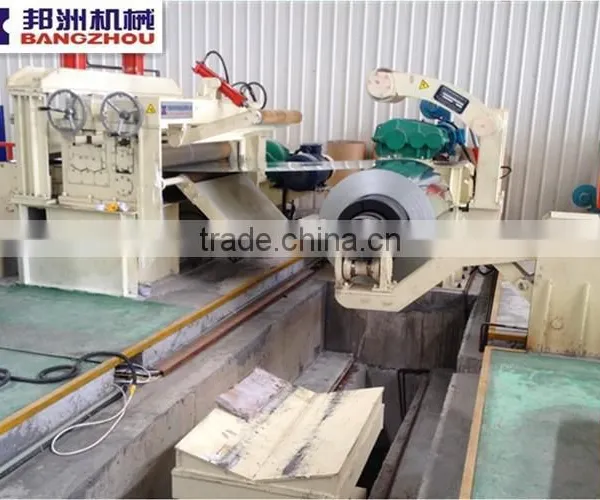

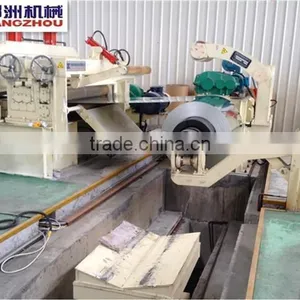

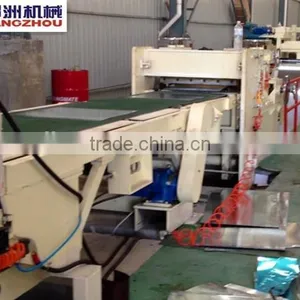

Cut to length line is used for producing flat sheet from steel coils.
This automatic cut to length line is a integration of mechanical, electrical, hydraulic and pneumatic technology. It is easy to operate, and has high production efficiency. It is capable of processing CR coils, HR coils, stainless coils, and colored or plated coils.

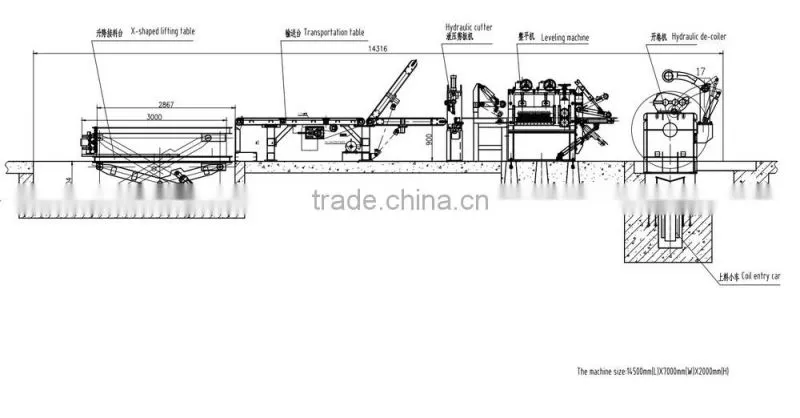

2.layout of CTL series
1.Installation:The seller will send technician to buyer's factory, and the buyer should pay for the flight and the food and accommodation. Pay for 80 USD per day for each people .
2.Service promise: The supplier designs and makes the equipment with quality guarantee period of one year. The supplier will provide free maintenance while quality guarantee period,
except for the human mechanical fault; and collect only the part costs and the travel expense of the serviceman
About us
Wuxi Bangzhou Machinery Manufacturing Co., Ltd. is located in Changjing Industrial Park, Jiangyin, Wuxi with beautiful environment and very convenient transportation. We are one of the most professional machinery manufacturers in China
Our main products are Steel coil slitting lines, cut to length lines, Straightening machines, Automatic crosscut units and Hydraulic shearing machines.
Welcome to visit us as them!
workshop:
Customer feedback:
What’s more, equipment can be specially designed and manufactured according to the customer’s requirements.
