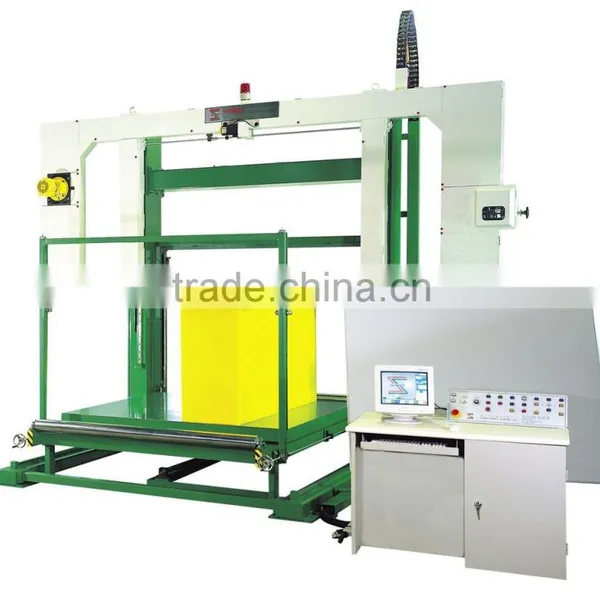

THE 14AK Auto Knife Type CNC Contour Foam Cutting Machine
IS DESIGNED TO CUT SINGLE SHAPE FIGURES USING CAD SOFTWARE TO COMPOSE THE WANTED SHAPE. THE COMPOSED FIGURE CAN BE DUPLICATE ON THE MONITOR SCREEN BY NESTING TO REDUCE THE CUTTING WASTE. THE OPERATOR CAN TEST RUN THE CUTTING ROUTINE ON THE MONITOR, TO MAKE SURE THE PLOTTING IS IDENTICAL TO THE ORIGINAL DESIGN. THE CUTTING KNIFE IS TENSIONED BY PNEUMATIC AND STARTED BY ELECTRONIC PEED CONTROL. THE HOLDING EQUIPMENT OF THE CUTTING TABLE PROVIDE FOAM TO BE MOVE AWAY WHILE IT IS IN CUTTING ACTION.
| CONTOUR FOAM CUTTING MACHINE TECHNICAL DATA: CUTTING SPEED: 0-20 M / MIN. (THE CUTTING SPEED CAN BE PRE-SET TO MEET DIFFERENT RAW MATERIAL REQUIREMENT.)
SUPPOSE THE USER ONLY RECEIVE DRAWING IN PAPER CARD WITHOUT ANY DIMENSIONS. FIX THE PAPER CARD ON THE DIGITIZER TABLE USING CURSOR OR STYLUS PEN TO TRANSMIT EVERY KEY POINTS OF THE LINE SECTIONS ON THE MONITOR, THEN USE CAD PLOTTING FUNCTION TO JOINT THE POINTS TO COMPOSE THE DRAWING.
DIGITIZER: FOR DIGITIZATION DRAWING BOARD SIZE: 40” x 60” (105 x 150 CM) 1 SET OF 4 BUTTON CURSOR
THE CONTROL OF SHAPED PARTS WILL BE CUT ARE PROGRAMMED BY USING A PROFESSIONAL COMPUTER INCLUDES THE FOLLOWING STANDARD ACCESSORIES: - 256MB SDRAM - 80GB HDD HARD DISK - DVD BURNER - 3½”, 1.44MB FDD - 19” SUPER VGA COLOR MONITOR
|
CONTOUR FOAM CUTTING MACHINE OPTIONS:
1. ADD TURN TABLE SYSTEM 2M x 2M
2. INCREASE CUTTING LENGTH TO 2.54M
3. DIGITIZER
