CNC Contour Foam Wire Cutting Machine

Name: CNC Contour Foam Wire Cutting Machine
Brand: SUNKIST
Price: Negotiable

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 0 per Month
Port Any port of Taiwan
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Type:	Other, Foam Cutting Machine	Application:	PU fome
Place of Origin:	Taiwan	Brand Name:	SUNKIST	Model Number:	SA-14B cnc Cutting Machine
Rated Power:	41 KW	Dimensions:	L 1200 x W 900 x H 900 mm	Voltage:	110 V~ 575 V
Power(W):	Electric power	Certification:	CE.UL	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

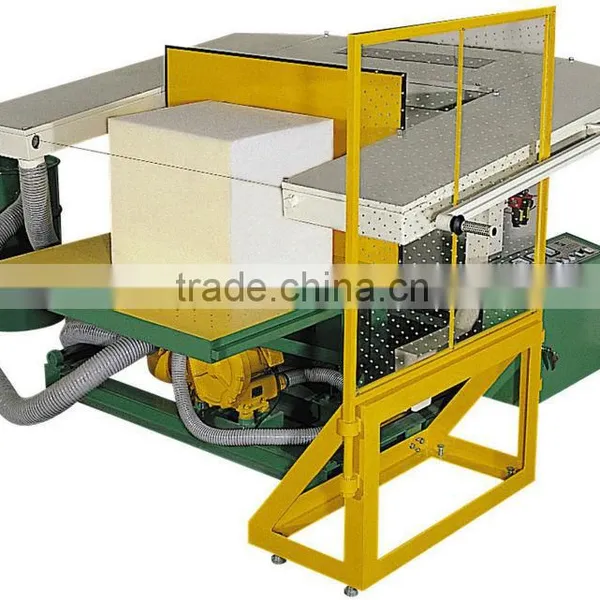

SA-14B CNC Contour Foam Wire Cutting Machine

is a two dimensional contour cutting machine.

Product Description

TECHNICAL DATA:

AVAILABLE CUTTING MATERIAL	FLEXIBLE URETHANE, RIGID URETHANE,PVC FLEXIBLE FOAM.
WIRE DIAMETER	1.2-1.5 mm
WIRE WHEELS	DIA. 400 mm
TABLE HEIGHT	ADJUST BY MOTOR
TABLE VACUUM SYSTEM	BY SUCKING FAN
WORKING AIR PRESSURE	2-3.5 Kgs
POWER REQUIRE	41 kW
FLOOR SPACE	APPROX. L 1200 x W 900 x H 900 mm

Special Feature

1.		The cutting unit consist of a frame with a tracing pin and 4 wheels. the cutting tool is an endless steel wheel wire. the desired foam shape can be cut by tracing along the wooden templet frame with the tracing pin.
2.		The machine is consist of a table with vacuum system for holding the foam block and a collecting system for sucking foam dust.
