EPRC10-EC Solar Controller for Solar Street Light System

Name: EPRC10-EC Solar Controller for Solar Street Light System
Brand: linquan
SKU: 126573581

US$ 25 - 32 MOQ: 5 Pieces

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

linquan

Model Number:

EPRC10-EC

Jinan Linquan Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO/TIANJIN

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name linquan

Model Number EPRC10-EC

Application Lighting Controller

Rated Voltage Other, 12V/24V auto work

Maximum Current 10A

Specifications

EPRC10-EC Solar controller for solar street light system
timer setting
PWM Charge mode
Automatic detection of voltage
10A

EPRC10-EC Solar controller for solar street light system

EPRC10-EC

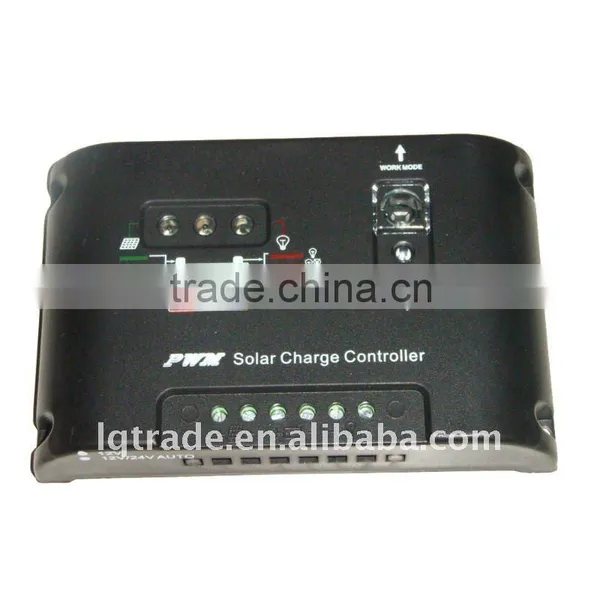

SOLAR CONTROLLER FOR SOLAR STREET LIGHT SYSTEMS
EPRC10-EC series combines SHS design with a microcontroller for
automatic lighting control function.
Widely used for street and pathway lighting, parking area, bus station and signage and etc.
Features
Microcontroller digital accuracy
PWM Charge mode
State of charge (SOC)
Detects day and night using the PV arrays, timer setting
Internal temperature compensation
Automatic detection of the voltage
EPRC10-EC series: 12 VOLT or 12/24 VOLT auto work, 10 AMPS (for PV and load)
Electronic protection
Short circuit protection
Reverse polarity protection
Reverse current protection at night
Over charging or discharging protection, over load protection
Display
4 LED indicators
PV: Green -charging
Battery: Green-Yellow-Red
Load: Red -output on
Red slow flashing&blinking shows mistakes
LED display timers
Technical specification
EPHC-ST series: 12 VOLT or 12/24 VOLT auto work, 10 AMPS (for PV and load)
Equalization voltage:			14.8 Volt
Boost voltage:			14.4 Volt
Float voltage:			13.6 Volt
Low voltage disconnect (LVD)			11.10 Volt
Low voltages reconnect (LVR):			12.6Volt
Temperature compensation:			-30mv/celsius degree/12V
Self-consumption:			6mA maximum
Terminals:			for wire sizes to 2.5 mm2
Temperature:			-35 to +55 celsius degree
Notes: It is for 12V system. Please X2 for 24V system.
WARRANTY: One year warranty period.
