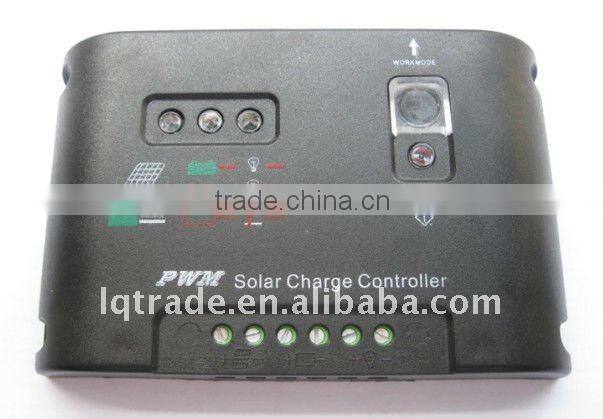

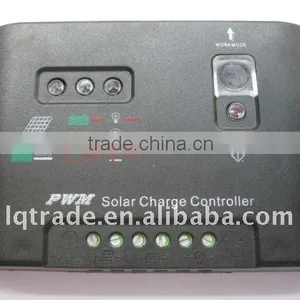

EPHC-EC Solar Home System Controller Regulator

Name: EPHC-EC Solar Home System Controller Regulator
Brand: linquan
SKU: 126573577
Availability: InStock

US$ 18 - 35 MOQ: 5 Pieces

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

linquan

Model Number:

SR-L

Jinan Linquan Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO/TIANJIN

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name linquan

Model Number SR-L

Application Solar System Controller

Rated Voltage Other, 12V/24V auto work

Maximum Current 5A 10A 15A 20A

Specifications

SR-L-Series Solar Charger Controller 5A, 10A, 15A, 20A
Over-charge
over-discharge
short circuit, over-load protection
PWM.

SR-L-Series Solar Charger Controller 5A, 10A, 15A, 20A

Model	SR-L series
rated charging current	5A 10A 15A 20A
Rated discharging current	5A 10A 15A 20A
Voltage	12V ; 24V ; 12V/24V Auto
No load losses	<5mA;
Charging circuit voltage drop	Less than or equal to 0.20V
Discharge circuit voltage drop	Less than or equal to 0.15V
Over voltage protection	17V; ×2/24V;
boost charge voltage	14.6V; ×2/24V (time of duration: 30 minutes)
Direct charge voltage	14.4V; ×2/24V (time of duration: 30 minutes)
Float charge voltage	13.6V; ×2/24V
Charge recover voltage	13.2V; ×2/24V
Over discharge recover voltage	12.5V; ×2/24V
Lower voltage indication	12.0V; ×2/24V
Over discharge voltage	11.1V; ×2/24V
Temperature compensation	-4.0mV/°C/2V(boost voltage, direct charge, float charge and charge return voltage compensation)
Control method	PWM Smart Charging
Working temperature	From -35 to +65 Celsius Degree
Over-load and short circuit protection	Over-load protection: when the current of controller is 1.25 times of the rated current, the controller works for 30 seconds; 1.5 times of rated current, works for 5 seconds Short circuit protection: when the current of controller is more than or equal to 3 times of rated current, the protection starts.
Circuit protection	Over-charge, over-discharge, short circuit and over-load protection	All the protections are harmless to any parts and fuse of controller
