Specifications
1:10A Solar Charge Controller2:with short circuit,over load,over charging ,over dicharging,reverse connection protection
10A Solar Charge Controller is detailed as follow :

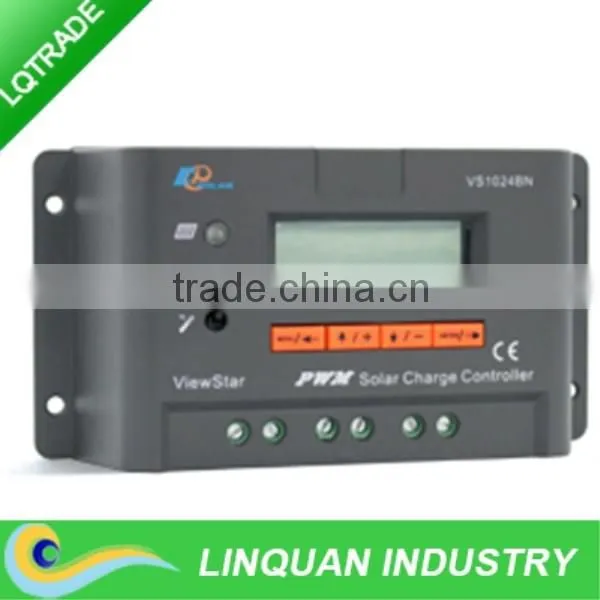

- VS**24BN Solar Charge Controller
- ViewStar series solar controller is our new generation controller for off-grid solar system, such as street light, solar home system or small power station etc.
solar controller,solar system controller designed to reduce pressure loaded,no-load loss.with short circuit protection;reverse current protection, reverse polarity protection; lightning protection; ;overcharge protection ;overdischarge protection etc.
Features:
·Excellent EMC design
·32 bit MCU with high speed
·High efficient Series PWM charging
·Four battery type options: Sealed, Gel, Flooded, and USER
·Intelligent lighting and timer control for solar lighting system
·12 bit A/D high-precision sampling to ensure accuracy
·Use MOSFET as electronic switch
·Full control parameters setting and modification, diversified load control mode
·Humanized design of browser interface, undertake every operating conveniently
·Temperature compensation
·Adopt graphics dot-matrix LCD screen and HMI (human-machine interface) with 4 buttons,integrated menu displaying and operation
·Energy statistics function
·RS485 ports with MODBUS communication protocol
·Optional PC monitoring software and remote meter for real-time monitoring and battery management parameter setting
·Field upgradable firmware
Electronic Protections:
·PV short circuit protection
·PV reverse polarity protection
·Battery overcharge protection
·Battery over discharge protection
·Battery reverse polarity protection
·Load overload protection
·Load short circuit protection
·Overheating protection
