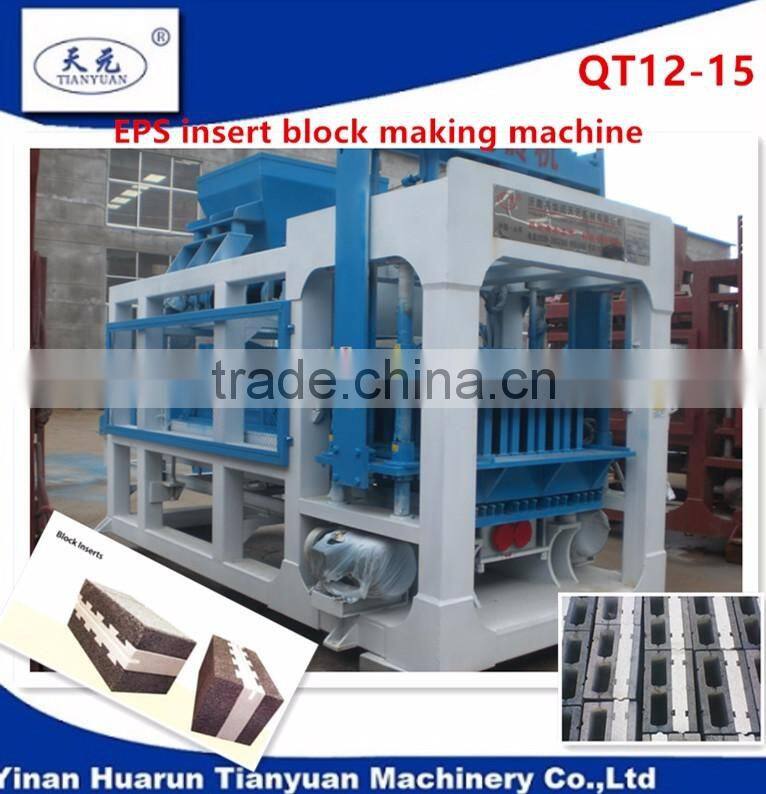

A: Production capacity of QT12-15 as following:
Size(LXWXH) mm |
Pcs/mould |
Pcs/hr |
Pcs/8hr |
390x240x190 |
10 |
1200 |
9600 |
390x190x190 |
12 |
1440 |
11520 |
B: Technical parameters of QT12-15:
Main machine size |
5000x2200x3000mm |
Pallet size |
1350x850mm |
|
Main machine power |
31.7kw |
Weight |
13Ton |
|
Rted pressure |
30Mpa |
Mixer |
JS750 |
|
Vibration forece |
50kn |
Belt conveyor |
8m |
|
Forming cycle |
30seconds |
Voltage |
380v/3phase |

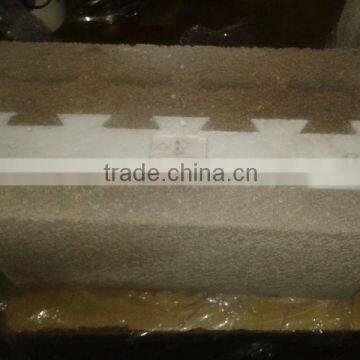

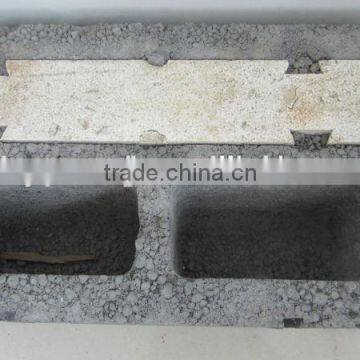

Finished products test report :
Packing:
Nude in container. Or in plastic bag per clients needs.
Shipping:
1: From mixer to stacker need one 40ft high container.
2: If need silo and batching machine too, it will need total 3x40ft high containers.
*Huarun Tianyuan Factory
1* We are the professional manufacturer of AAC Block Plant& Concrete Brick Block machine & Expanded Perlite Slab Molding Machine & EPS Insert Concrete Hllow Block Machine, & Fireproof door core making machine, with high technology research develop teams, more than 15years experience in this fields, cover 80000sqm and more than 400 staffs.
2* Our products with CE/ISO certification had been sold to more than 106 countries, and well received high acceptance.
3* We had successfully designed the Slope protection brick machines for South-to-North water diversion project, this is the biggest water diversion project in China Government.
4* We had successfully designed EPS(polystyrene) insert concrete hollow block machines. For chinese North-East building company.
5* We had successfully designed thermal insulation Expaned Perlite Slab molding machines for outside wall heat insulation. We are top leader in Chinese markets, share more than 95% markets.
6* We ensure our products quality and best after sales service.
We will do the best with clients' advice and susgestion.
1> Certification of ISO 9001. CE(MD+LVD)
2> We have inspections every year by National Quality Technical Supervise Department.
3> Our Quality Inspection Department make test of each machine before loading.
1: Keep the machine in dry environment.
2: Before the first production, please fill hydraulic oil into the tank, keep the oil level higher than 80/180degree. And pay more attention to the oil Pressure.
3: Please check the Sensor position before each shift, and tighten them again.
4: After each shift, please cleaning all the equipments, and lubricating each running parts.
5: Please cut off the Total Power when User maintaining the machine.
6: When need to change mold, please discharge or install them slowly and keep the Up mold foot safety. Please do it as our video.
7: If need technical help, please call 0086-539-3551999, 24hours online service.
Or please chat by Trade manager: cntianyuanzj
Or Send Email: tianyuanzj at .
WhatsApp: 008615006593716
