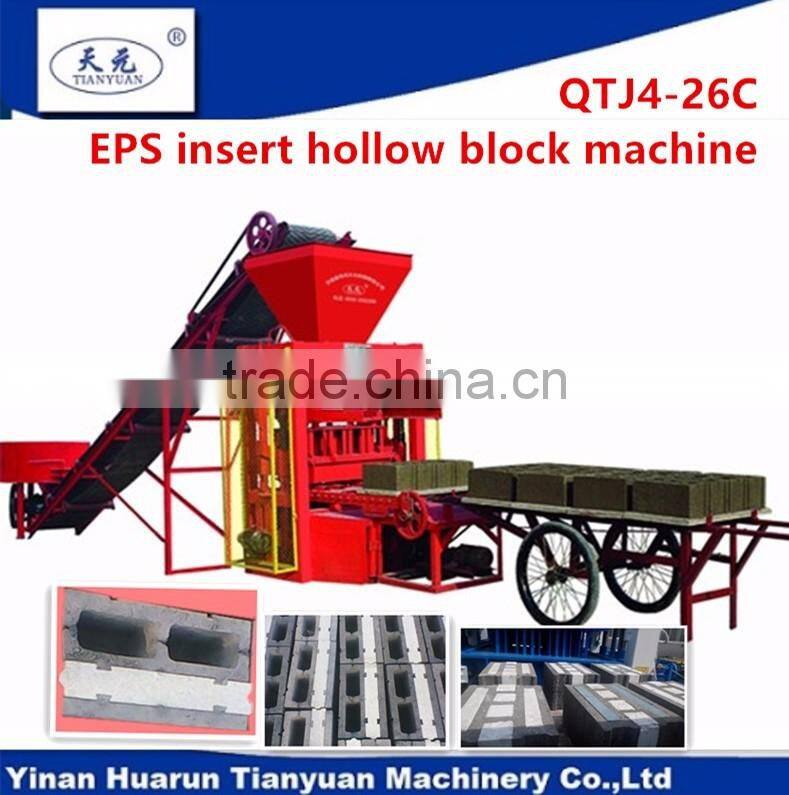

Help CenterSmall Capacity Heat Insulated Eps Insert Concrete Brick Machine QT4-26
Related Products
-
Eps Cement Hollow Brick Machine ( Huarun Tianyuan Factory)US$ 360 - 60,000MOQ: 1 Set -
Specially Designed Insulated Eps Foam Concrete Block Machine Huarun Tianyuan FactoryUS$ 360 - 60,000MOQ: 1 Set
-
Eps Insert Concrete Hollow Brick Block Machine ( Huarun Tianyuan Factory)US$ 360 - 60,000MOQ: 1 Set
-
Top Sellers Thermal Insulated Insert Eps Board Compound Concrete Block MachineUS$ 360 - 60,000MOQ: 1 Set
-
Concrete Block Making Machine for Polystyrene Insulated Wall BuildingUS$ 3,500 - 60,000MOQ: 1 Set
semi autoamtic QT4-26 EPS insualted concrete hollow blcok making line.
A: QT4-26 Production capacity as following:
Size(LXWXH) mm |
Pcs/mould |
Pcs/hr |
Pcs/8hr |
390x240x190 |
3 |
180 |
1440 |
390x190x190 |
4 |
2400 |
1920 |
B: QT4-26 Technical parameters .
Main machine size |
1800x1600x2000mm |
Pallet size |
850x450mm |
|
Main machine power |
30.2kw |
Weight |
3.5Ton |
|
Tested pressure |
16Mpa/cm2 |
Mixer |
1.2m |
|
Vibration forece |
50kn |
Belt conveyor |
6m |
|
Forming cycle |
30-60seconds |
Voltage |
380v/3phase |
Finished products test report:
1> Certification of ISO 9001. CE(MD+LVD)
2> We have inspections every year by National Quality Technical Supervise Department.
3> Our Quality Inspection Department make test of each machine before loading.
*Huarun Tianyuan Factory
1* We are the professional manufacturer of AAC Block Plant& Concrete Brick Block machine & Expanded Perlite Slab Molding Machine & EPS Insert Concrete Hllow Block Machine, & Fireproof door core making machine, with high technology research develop teams, more than 15years experience in this fields, cover 80000sqm and more than 400 staffs.
2* Our products with CE/ISO certification had been sold to more than 106 countries, and well received high acceptance.
3* We had successfully designed the Slope protection brick machines for South-to-North water diversion project, this is the biggest water diversion project in China Government.
4* We had successfully designed EPS(polystyrene) insert concrete hollow block machines. For chinese North-East building company.
5* We had successfully designed thermal insulation Expaned Perlite Slab molding machines for outside wall heat insulation. We are top leader in Chinese markets, share more than 95% markets.
6* We ensure our products quality and best after sales service.
We will do the best with clients' advice and susgestion.
7*24hours online service.
@:Designing ,technical support and project;
@Engineer available for overseas installation and adjustment;
@All necessary documents and drawings and videos for free;
@Warranty one year after delivery.
@ 24hours Online service for all life time.
1: Keep the machine in dry environment.
2: Before the first production, please fill hydraulic oil into the tank, keep the oil level higher than 80/180degree. And pay more attention to the oil Pressure.
3: Please check the Sensor position before each shift, and tighten them again.
4: After each shift, please cleaning all the equipments, and lubricating each running parts.
5: Please cut off the Total Power when User maintaining the machine.
6: When need to change mold, please discharge or install them slowly and keep the Up mold foot safety. Please do it as our video.
7: If need technical help, please call 0086-539-3551999, 24hours online service.
Or please chat by Trade manager: cntianyuanzj
Or Send Email: tianyuanzj at .
WhatsApp: 008615006593716
