Help CenterCDH-2800 High Speed Jumbo Roll Slitting and Rewinding Machine
Related Products
-
CDH-200-2 Box-drawing Face Tissue MachineNegotiableMOQ: 1 Set -
CDH-200-6L Facial Tissue Folding MachineNegotiableMOQ: 1 Set
-
CDH-190-3L Drawing Type Facial Tissue MachineNegotiableMOQ: 1 Set
-
CDH-180-4L Drawing Type Facial Tissue MachineNegotiableMOQ: 1 Set
-
CDH-236 Auotmatic Box Sealing MachineNegotiableMOQ: 1 Set
Specifications
Nice output.faster speed.
competitive price
Good after service

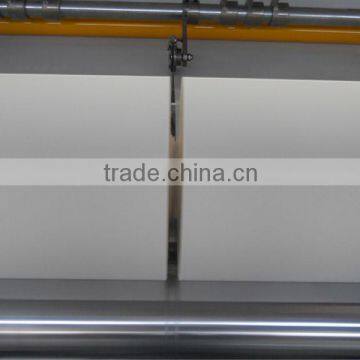

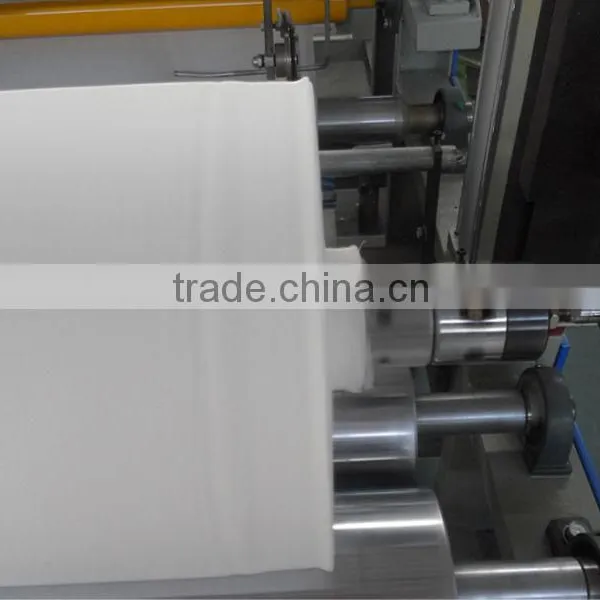

CDH-2800 High Speed Jumbo Roll Slitting & Rewinding Machine is slitting from single ply big Jumbo roll into several small 2,3,4 layers paper rolls. The final products can become the raw materials for folding tissue machines, napkin tissue machines, box facial tissue machines, and so on. It has the reasonable and durable structure in machine, with pneumatic device. The easy operation and high speed running of machine caster for many customers in the world.
Main Feature:
- 1. It adopts the timing belt driving. Although it runs the fastest speed, there is lowest noisy.
- 2. The back final product stand has the ultra-width belt which improve the speed of transfer the Jumbo roll.
- 3. It is very continence to adjust the width of final products by the new fit device.
- 4. It has the pneumatic up the Jumbo roll and vacuum absorb edge device.
- 5. Avoiding the changing the shape, which has the back final product stand device.
Main Technical Parameter
Machine Model |
2800 |
Width of Jumbo Roll(mm) |
2750 |
Speed |
200-400m/min |
Diameter of final product(mm) |
Dia1300mm |
Width Slitting (mm) |
Adjust |
Diameter core of final product(mm) |
Dia76.2mm(customize) |
Diameter of Jumbo Roll(mm) |
1300(customize) |
Diameter core of Jumbo Roll(mm) |
Dia76.2mm(customize) |
Back final product stand |
1-3 layers(customize) |
Jumbo roll core shelf |
Air-shelf |
Rewinding system |
Pneumatic synchronous rewinding |
Slitting system |
big diameter slitting round blade |
Feeding system |
Automatic feeding roll |
Slitting edge system |
Vacuum slitting edge2.2KW |
Power |
Frequency conversion speed regulator 11KW |
Pneumatic system |
5 HP air compressor, above air pressure:5kg/cm2 Pa (provided by customer) |
Machine dimension(mm) |
8500*4000*2100 |
Machine weight |
5000kg |
