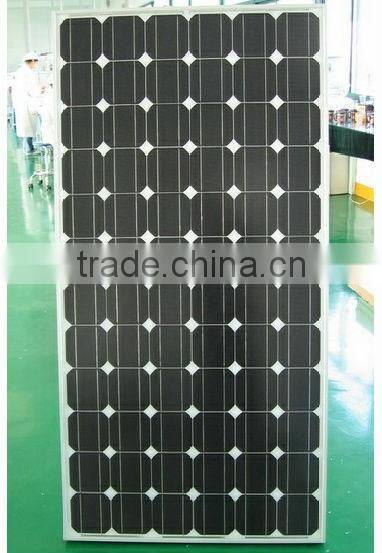

Chinese Best 310W Solar Panel, Photovoltaic Panel,PV Module
- 100000 Piece / Pieces per Month
- FOB China
- T/T Credit Card PayPal
- 12V Portable Mini Air Pump
- DC 12V Portable Heavy Duty Plastic Shell Air Compressor with Light Quality Choice
- Electric Portable Heavy Duty Plastic Shell Air Compressor -30mm 2 Cylinder
- 12V Heavy Duty Plastic Shell Air Compressor with Light
- 12V Mini Heavy Duty Plastic Shell Air Compressor Price
- 12V Heavy Duty Car Air Compressor /Tire Inflators with light - 30mm Cylinder
Product Details
Place of Origin: | Shandong, China | Brand Name: | Power World | Model Number: | PW310-72 |
Material: | Polycrystalline Silicon | Size: | 1950X990X40mm | Number of Cells: | 72 |
Max. Power: | 320W |
Product Description
Chinese Best 310W Solar Panel, Photovoltaic Panel,PV Module
Structure:
1. Front Material: 3.2MM low-iron toughened matte glass porcelain
2. Back Material: White TPTTPE
3. Bondable Barrier Film: EVA
4. Frame: Aluminum alloy plated with oxidation film
5. The warranty of a standard about 25 years/80% efficiency on maximum output
10 years /90% efficiency on maximum and 10 years warranty on workmanship
6. Module size can be changed according to the customers' requirement.
7. Standard testing conditions: Am1.5 25℃ 1000W/m2
Specifications and Parameters :
NO. | TYPE | PW 310Wp | |||
1 | Peak Power(Pm) | 310W | |||
2 | efficiency rate | 16.0% | |||
3 | Power Tolerance | ±3% | |||
4 | Open circuit Voltatge(VOC) | 44.88V | |||
5 | Short Circuit Current(ISC) | 8.98 | |||
6 | Maximum Power Voltage(Vmp) | 36.54V | |||
7 | Maximum Power Current(Imp) | 8.49A | |||

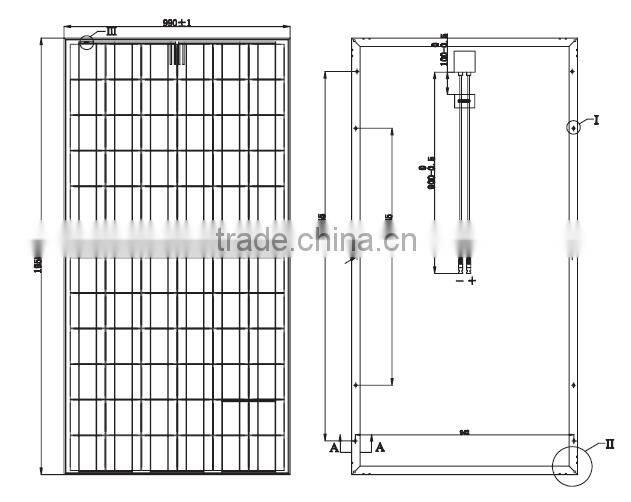

8 | Size of Module | 1950×990×40mm | |||
9 | Cell Type | Polycrystalline | |||
10 | Quantity and Dimession of Cell | 72pcs,156×156mm | |||
11 | Glass type and Thickness | Low iron tempered 3.2mm | |||
12 | Maximum System Voltage(V) | 1000V | |||
13 | Temperature coefficiencent Isc (%) | +0.04±0.015 % / °C | |||
14 | Temperature coefficiencent Voc (%) | -(0.35±0.02)% / °C | |||
15 | Temperature coefficiencent Pm (%) | -(0.5±0.05)% / °C | |||
16 | Temperature coefficiencent Im (%) | +0.04% / °C | |||
17 | Temperature coefficiencent Vm (%) | -0.38% / °C | |||
18 | Operating temperatures | -40°C ~+90 °C | |||
19 | Surface pressure | 60m/s (200kg /m2) | |||
20 | Weight | about 24.0kg |
| |||||||||||
|
