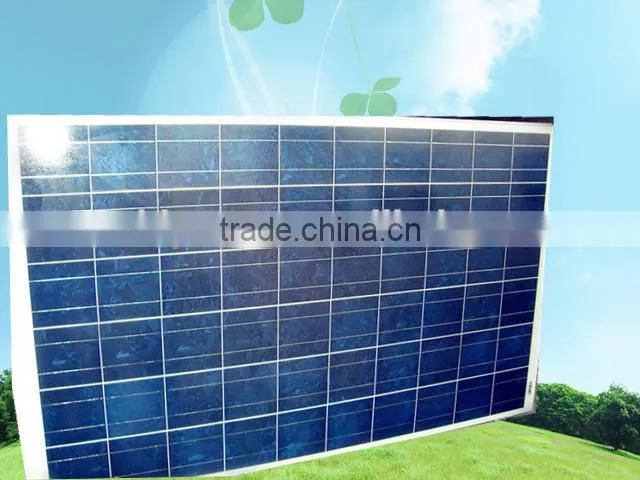

China Land 200W 220W 230W 240W12V 24V Solar Panels With MCS UL TUV CE Certificate
- 100000 Piece / Pieces per Month
- FOB China
- T/T Credit Card PayPal
- 12V Portable Mini Air Pump
- DC 12V Portable Heavy Duty Plastic Shell Air Compressor with Light Quality Choice
- Electric Portable Heavy Duty Plastic Shell Air Compressor -30mm 2 Cylinder
- 12V Heavy Duty Plastic Shell Air Compressor with Light
- 12V Mini Heavy Duty Plastic Shell Air Compressor Price
- 12V Heavy Duty Car Air Compressor /Tire Inflators with light - 30mm Cylinder
Product Details
Place of Origin: | Shandong, China | Brand Name: | Power World | Model Number: | PW240-96 |
Material: | Monocrystalline Silicon | Size: | 1590X1060X45mm | Number of Cells: | 96 |
Max. Power: | 250 |
Product Description
China Land 200W 220W 230W 240W12V 24V Solar Panels With MCS UL TUV CE Certificate
NO. | TYPE | PW240M-96 | |||
1 | Peak Power(Pm) | 240W | |||
2 | efficiency rate | 14.2% | |||
3 | Power Tolerance | ±3% | |||
4 | Open circuit Voltatge(VOC) | 57.6V±0.5 | |||
5 | Short Circuit Current(ISC) | 5.6A±0.2 | |||
6 | Maximum Power Voltage(Vmp) | 48V±0.5 | |||
7 | Maximum Power Current(Imp) | 5A±0.2 | |||
8 | Size of Module | 1590×1060×45mm | |||

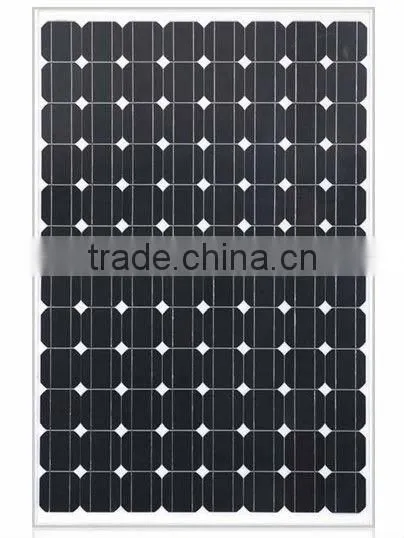

9 | Cell Type | Monocrystalline | |||
10 | Quantity and Dimession of Cell | 96pcs,125×125mm | |||
11 | Glass type and Thickness | Low iron tempered 3.2mm | |||
12 | Maximum System Voltage | 1000V DC | |||
13 | Maximum Series Fuse Rating | 15A | |||
14 | Temperature Coefficients of Pmax | -0.34%/°C | |||
15 | Temperature Coefficients of Voc | -0.32%/°C | |||
16 | Temperature Coefficients of Isc | -0.04%/°C | |||
17 | Nominal Operating Cell Temperature | 45 ± 2/°C | |||
18 | Weight | about 23kg |
| |||||||||||
| |||||||||||
|
New Product :
