China Land 150W 12V 24V 36V Solar Panels With MCS UL TUV CE Certificate,PV Module

China Land 150W 12V 24V 36V Solar Panels With MCS UL TUV CE Certificate,PV Module thumbnail-1
China Land 150W 12V 24V 36V Solar Panels With MCS UL TUV CE Certificate,PV Module thumbnail-2
China Land 150W 12V 24V 36V Solar Panels With MCS UL TUV CE Certificate,PV Module thumbnail-3
China Land 150W 12V 24V 36V Solar Panels With MCS UL TUV CE Certificate,PV Module thumbnail-4
China Land 150W 12V 24V 36V Solar Panels With MCS UL TUV CE Certificate,PV Module thumbnail-5
China Land 150W 12V 24V 36V Solar Panels With MCS UL TUV CE Certificate,PV Module thumbnail-6
China Land 150W 12V 24V 36V Solar Panels With MCS UL TUV CE Certificate,PV Module photo-1
China Land 150W 12V 24V 36V Solar Panels With MCS UL TUV CE Certificate,PV Module photo-2

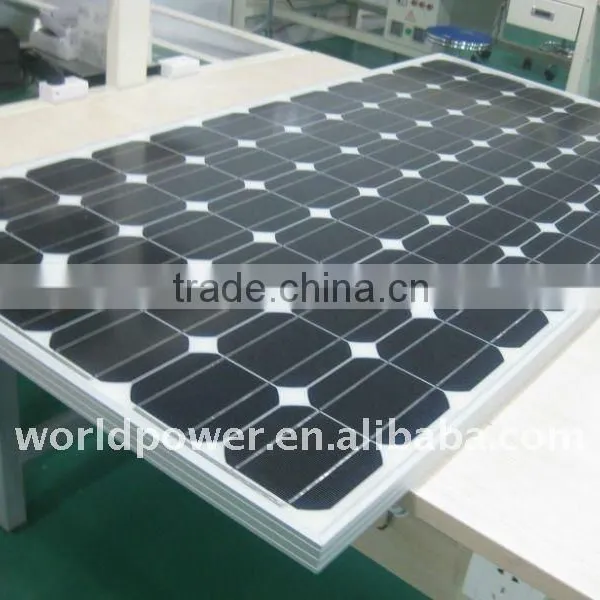

China Land 150W 12V 24V 36V Solar Panels With MCS UL TUV CE Certificate,PV Module photo-3
China Land 150W 12V 24V 36V Solar Panels With MCS UL TUV CE Certificate,PV Module photo-4
China Land 150W 12V 24V 36V Solar Panels With MCS UL TUV CE Certificate,PV Module photo-5
China Land 150W 12V 24V 36V Solar Panels With MCS UL TUV CE Certificate,PV Module photo-6
US$ 0.37 - 0.5 MOQ: 1000 Watts
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
PW
Model Number:
PW150-156-36P
Contact Supplier Request Quote Chat Now
Qingdao Power World Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name PW
Model Number PW150-156-36P
Material Polycrystalline Silicon
Size 1480*670*30mm
Number of Cells 36pcs
Max. Power 155W

China Land 150W 12V 24V 36V Solar Panels With MCS UL TUV CE Certificate,PV Module



Technical Data


STC
PW130-156-36P
PW135-156-
36P
PW140-156-
36P
PW145-156-
36P
PW150-156-
36P
PW155-156
-36P
PW160-156-
36P
Maximum Power
135W
140W
145W
150W
155W
160W
165W
Module Efficiency
14.10%
14.35%
14.66%
14.96%
15.3%
15.60%
16.00%
Max Power Current
7.70A
      8.15A
8.20A
8.28A
8.33A
8.50A
8.63A
Max Power Voltage
17.05V
17.15V
17.50V
17.73V
18.00V
18.25V
18.52V
Short Circuit Current
8.87A
9.04A
9.15A
9.24A
9.35A
9.47A
9.60A
Open Circuit Voltage
21.84V
21.95V
22.05V
22.14V
22.20V
22.26V
22.32V
Power Tolerance
0~+5W
Values at Standard Test Conditions STC(Air Mass AM1.5, Irradiance 1000W/m²,Cell Temperature 25℃)

Mechanical Characteristics

Cell Type
 Polycrystalline 156 X 156mm, 60(6 X 10)pcs in series
Glass
 High Transmissivity, Low Iron, Tempered Glas
Frame
 Anodized Aluminium Alloy
Junction box
 IP65/IP67 rated,with bypass diodes
Dimension
 1480*670*30/35/40mm
Output Cable
 90mm, 4mm2(EU)/12AWG(US),1000mm
Weight
 14.50KGS
No. of Bypass Diodes
 3/6

Packing Info

Container 20'GP 40'GP 40'HQ
Pallets per Container
12
28
28
Pieces per Container
312
728
770

Shipping

By Sea Delivery from Chinese Main seaport, Like Shanghai, Ningbo etc. It takes 10 - 30 days from China to Europe, North Amercia, South Amercia, Africa, Asia etc.
By Air Departure from Chinese Main airport, Like Shanghai, Ningbo etc. It takes 5 - 10 days from China to Europe, North Amercia, South Amercia, Africa, Asia etc.
By Express Post by DHL, Fedex and so on. It takes 3 - 5 days from China to the customer's address.

Payment Terms

T/T TT 30% as Deposit, Blance to be paid before the shipment
L/C The total cost for Letters of Credit is above US$50,000 then we can accept L/C @ sight or TT 20% as Deposit, Blance against L/C @sight
West Union Total Value is lower than US$5000
Alibaba Escrow Total Value is lower than US$5000

Delivery Time

10 - 15 working days after received the payment for 1 X 40HQ container

Warranty

10 years warranty on workmanship,10 years 90% & 25 years 80% Of The Power Output

Bill of Material

Solar Cell We use Chinese top suppliers of solar cell, like Jinko, GPPV, JA Solar, Motech
Tempered Glass We use Chinese top suppliers of tempered glass, like Golden Glass, CSG Holding, Puyang, Xingyi
EVA We use Chinese top suppliers of EVA, like First, Huafeng
TPT We use Chinese top suppliers of TPT, like First, Coveme, FSC
Junction Box  We use Chinese top suppliers of junction box, like Renhe, GZX
Aluminum Frame We use Chinese top suppliers of aluminum, like Baocheng, Xiefeng
Silica Gel We use Chinese top suppliers of silica Gel, like Tianshan, Huitian, Tiansheng

Workshop pics

 China Land 150W 12V 24V 36V Solar Panels With MCS UL TUV CE Certificate,PV Module  China Land 150W 12V 24V 36V Solar Panels With MCS UL TUV CE Certificate,PV Module
 China Land 150W 12V 24V 36V Solar Panels With MCS UL TUV CE Certificate,PV Module  China Land 150W 12V 24V 36V Solar Panels With MCS UL TUV CE Certificate,PV Module

Projects Pics

 China Land 150W 12V 24V 36V Solar Panels With MCS UL TUV CE Certificate,PV Module  China Land 150W 12V 24V 36V Solar Panels With MCS UL TUV CE Certificate,PV Module
 China Land 150W 12V 24V 36V Solar Panels With MCS UL TUV CE Certificate,PV Module  China Land 150W 12V 24V 36V Solar Panels With MCS UL TUV CE Certificate,PV Module

FQA

Q: Are you manufacturer or trading company?

A: We are manufacturer and trader. Both of them.

Q: How many employees in your company?

A: We have about 50~100 employees, including office staff, R & D engineers, production line workers.

Q: Which certificates do you have?

A: We have CE, TUV, IEC, CEC, MCS, UL.

Q: Which countries or regions have you exported to?

A: Aisa like South Korea, Sri Lanka, Thailand, Vietnam, India, Pakistan, UAE, Russia; Europe like Germany, France, Beligum; North America like USA, Mexico; South America like Peru, Chile; Africa like South Africa, Mali, Tunisia and Australia etc.

Q: What is your advantage product?

A: Solar Panel. We have different quality grade solar panel for different markets and customers. OEM & customer customized is welcome.

Q: Does your company also provide other solar products except solar panel?

A: We also supply BIPV, LED, solar pumps and the related solar products.

Q: How can we get some samples to test?

A: Sample order is ok for us. Usually we use DHL, Fedex to you, which is quick but a bit expensive.

Q: How can we get the cheaper price?

A: As long as MOQ is more than 100pcs then we would like to try our best to give you the best price to avoid bargain again and again.

Q: We need C/O. Can you supply?

A: Yes, we have the related experiences to supply C/O, FORM A, FORM F and so on.

Why Choose us

Professional manufactures, strict quality control & full automatic production equipment
Professional salesmans, who have more than 10 years international business experiences
High vonversion efficiency, high transmisson rate, low iron tempered anti-reflecting/coating film 3.2mm glass
Anti-aging & high visosity EVA
High frame resistant & double-sided flourine TPT
Anodized aluminum alloy high thickness frame
3 or 6 bypass diodes, 90mm 4m2 cable, MC4 connectors & waterproof junction box
Long life, easy installation, high wind and hail impact resistance etc advantage
ISO 9001:2008/ISO14001:2004, CE/TUV/CEC/IEC 61215/IEC61730
10 years warranty on workmanship,10 years 90% & 25 years 80% Of The Power Output
