| Model | DE-27W/DY | DE-36W/DY | DE-46W/DY | DE-52W/DY | DE-75W/DY | DE-92W/DY | DE-105W/DY | DE-150W/DY | DE-180W/DY | DE-225W/DY | DE-270W/DY |
| Power supply(V/ph/Hz) | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 |
| Compressor rated power(kw) | 2.7 | 3.6 | 4.6 | 5.2 | 7.5 | 9.2 | 10.5 | 15 | 18 | 22.5 | 27 |
| Heating capacity(kw) | 11 | 14.5 | 18 | 22 | 31 | 39 | 46.5 | 62 | 74 | 110 | 148 |
| Power input(kw) | 1.9 | 2.7 | 3.1 | 3.7 | 5.5 | 6.7 | 8.2 | 11.3 | 13.5 | 20 | 27 |
| Refrigerant | R417A | ||||||||||
| Refrigerant weigh(g) | 1850 | 2000 | 2300 | 2500 | 2200*2 | 2300*2 | 2500*2 | 2300*3 | 2300*4 | 2500*4 | 3450*4 |
| Max.current(A) | 7.5 | 10 | 13 | 15 | 21 | 25 | 30 | 25 | 29 | 37 | 49 |
| Rated water temp.(℃) | 28 | 28 | 28 | 28 | 28 | 28 | 28 | 28 | 28 | 28 | 28 |
| Level against electric shock | I | I | I | I | I | I | I | I | I | I | I |
| Water-proof grade | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 |
| Net weight(kg) | 90 | 120 | 130 | 140 | 260 | 250 | 290 | 495 | 622 | 670 | 893 |
| Net size(mm) | 700*690*860 | 800*780*1000 | 800*780*1000 | 800*780*1000 | 1200*920*1225 | 1200*920*1225 | 1200*920*1425 | 2046*1180*1750 | 2400*1130*2300 | 2400*1130*2300 | 2400*1400*2300 |
| Required water flow rate(m3/h) | 4.5 | 6 | 7.5 | 9 | 12 | 15 | 15 | 18 | 20 | 25 | 30 |
| Water connection(mm) | 50mm | 50mm | 50mm | 50mm | 63mm | 63mm | 63mm | 90mm | 90mm | 110mm | 110mm |
| Operation temp.range(℃) | -10-45 | -10-45 | -10-45 | -10-45 | -10-45 | -10-45 | -10-45 | -10-45 | -10-45 | -10-45 | -10-45 |
| Noise dB(A) | ≤60 | ≤64 | ≤64 | ≤64 | ≤65 | ≤65 | ≤65 | ≤68 | ≤68 | ≤68 | ≤68 |
| Test condition | Ambient temp.(DB/WB):20℃/15℃ Water temp.(Initial/Final):15℃/28℃ |
||||||||||
Features:
Brief introduction:
1. Deron swimming pool/spa heat pump applies the heat pump technology
which moves heat from the surroundings into the pool/spa water to keep a comfortable temperature (heating or cooling) for people.
2. The adoption of pure titanium heat exchanger, not only because of its superb resistance to corrosive water, but also its higher heat exchanger rate. It's widely used in house, villa,
and hotel swimming pool etc..
3. This unit could be installed in outdoors,
as floating support for compressor to reduce vibration at the most extent and noise insulation inside the cabinet as well as noise jacket for compressor.

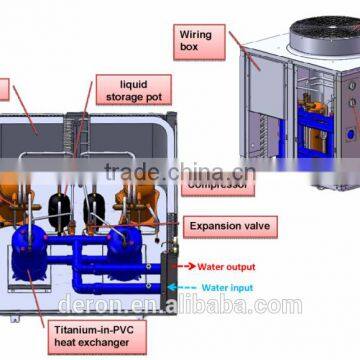

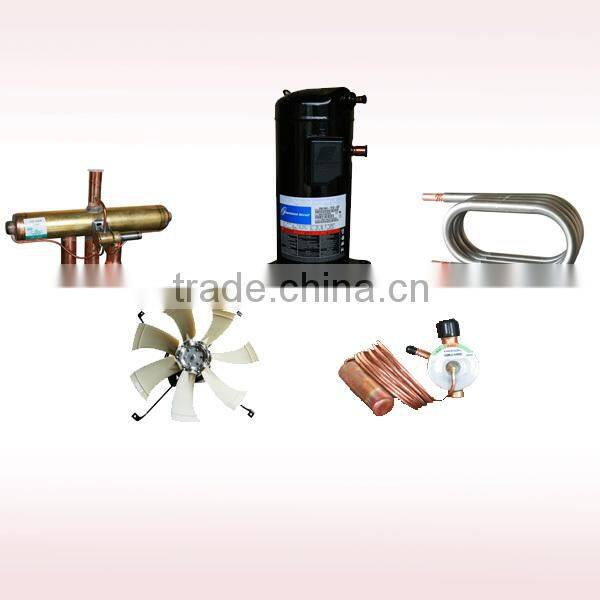

4.The compact design heat pump is built-in Copeland or Daikin scroll type compressor,Titanium-in-PVC heat exchanger (swimming pool use, max output water temp.
up to 45℃)or titanium-in-steel(tube in tube titanium) heat exchanger(spa use, max. output water temp. up to 60℃),
5. Emerson thermal expansion valve and Saginomiya four-way valve to ensure it work smoothly and efficiently.
Why Choose Us?
1) More than 9 years heat pump manufacturer;
2) Materials are inported from USA ans japan, reliable to the end.
3) OEM& ODM; One-stop service; from design to packaging;
4) Strong R&D ability ( New products will be dasigned each year)
Model: DE-150LW/BP Model: DE-92W/D Model: DE-36WB
Model: DE-92W/DK Model: DE-46W/DY Model: DE-46W/S

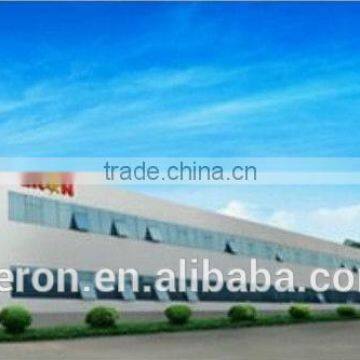

Guangzhou Deron Heat Source Facilities Co., Ltd. is one of national key enterprises in Panyu Energy-saving Science & Technology Industrial Park. The company devotes to researching heat pump technique independently, and specializes in manufacturing energy-efficient heat pump and hot water unit, mainly for guesthouses, hotels, schools, offices, factories, hospitals and family villas all over the world, to provide energy-saving central heating and hot water systems solution, of which the rate can be 75% or higher.
Production Line:

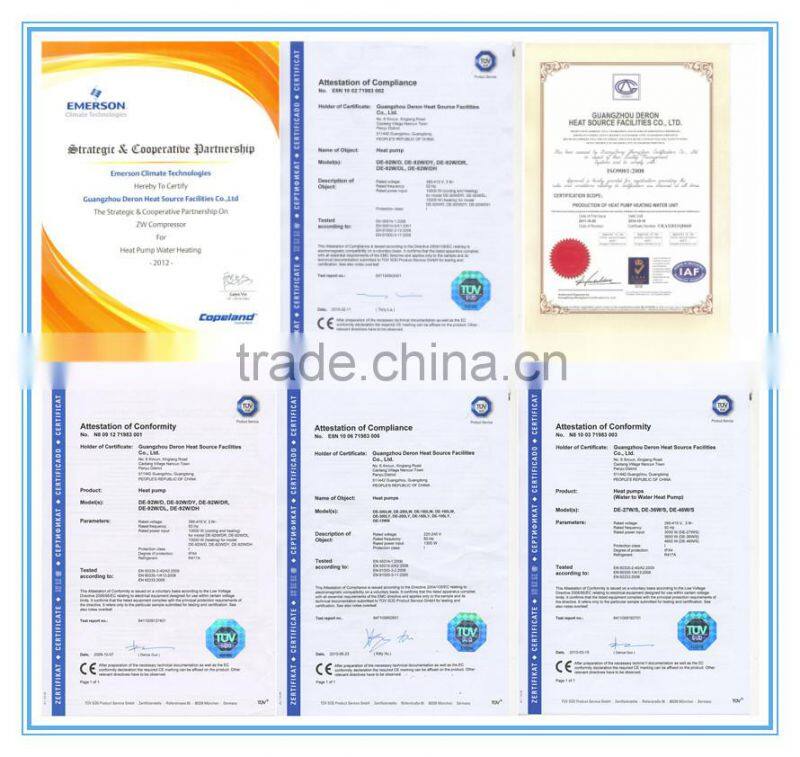

Certifications:
