Air Source Heat Pump System Special For The Aquarium & Swimming Pool
FEATURES
1) Amazingly Nice Looking with Special Air Outlet
2) Compared structure and good demountability
3) Patented 100% Titanium Heat Exchanger in PVC & INOX Shell
4) High efficiency compressor with R410A or R417 refregerant for choice
5) Flow switch for water flow protection
6) Intelligent controller
9) Air exchanger (fin-coil) with hydrophilic coating
10) Automatic defrosting function included ( with reverse cycle valve inside )
11) General and operational test carried out for every unit before package in the factory
Titanium Heat Exchanger

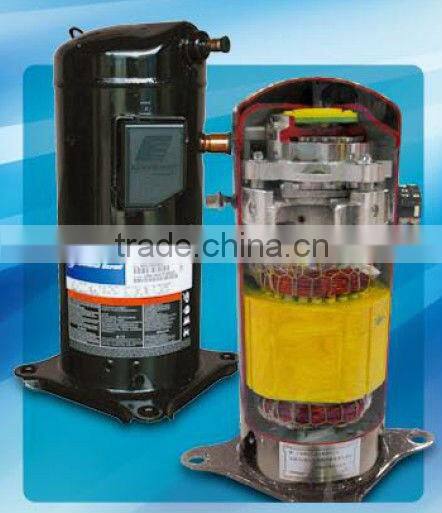

ZW Series EVI Technology Compressor
Air Source Heat Pump System Special For The Aquarium & Swimming Pool
Parametres:
| Model | DE-46W/DY |
| Power supply(V/ph/Hz) | 380/3/50 |
| Compressor rated power(kw) | 4.6 |
| Heating capacity(kw) | 18 |
| Power input(kw) | 3.1 |
| Refrigerant | R417A |
| Refrigerant weigh(g) | 2300 |
| Max.current(A) | 13 |
| Rated water temp.(°C) | 28 |
| Level against electric shock | I |
| Water-proof grade | IPX4 |
| Net weight(kg) | 130 |
| Net size(mm)-(L*W*H) | 800*780*1000 |
| Required water flow rate(m3/h) | 7.5 |
| Water connection(mm) | 50mm |
| Operation temp.range(°C) | -10-45 |
| Noise dB(A) | ≤64 |
Test condition: Ambient temp.(DB/WB):20°C/15°C
Water temp.(Initial/Final):15°C/28°C
.
INSTALLATION

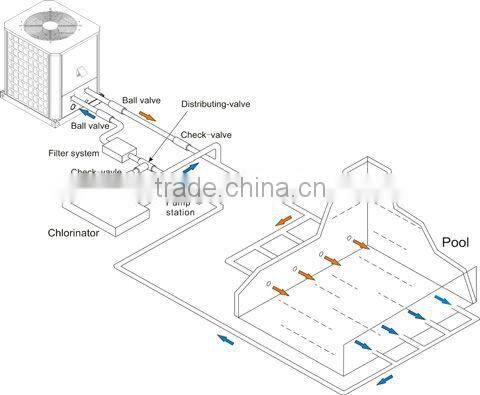

Installation Sketch Map
CERTIFICATES
We offer OEM service, if you want to know more information about our products welcome to contact us or visit our factory in anytime, we display more new design in our showroom.
