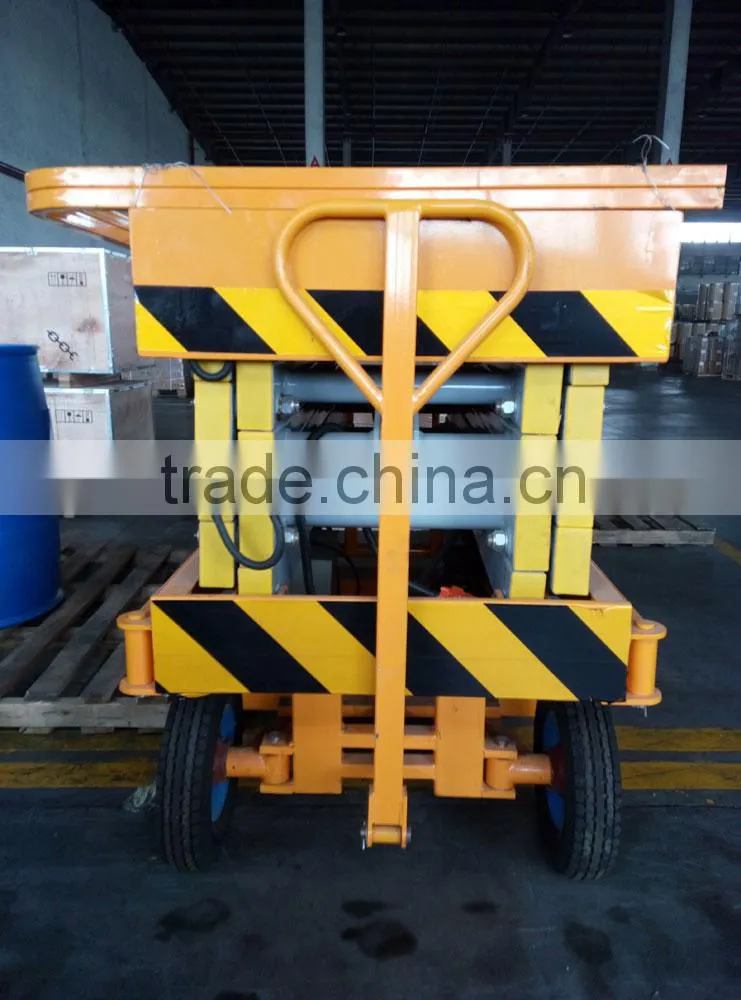

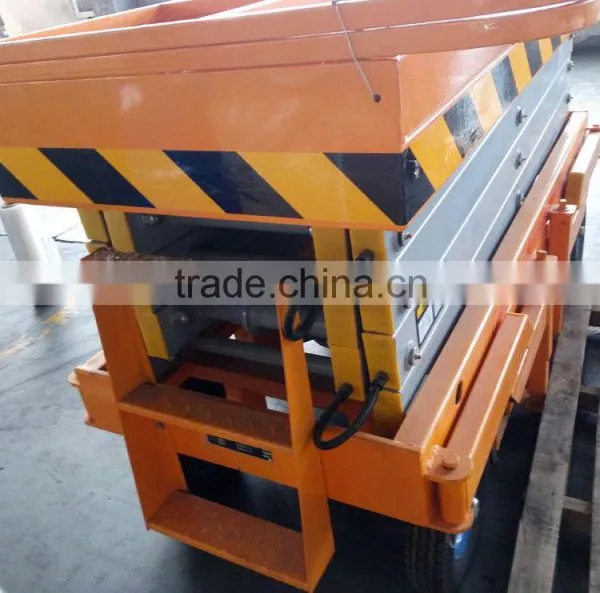

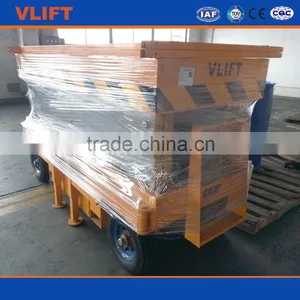

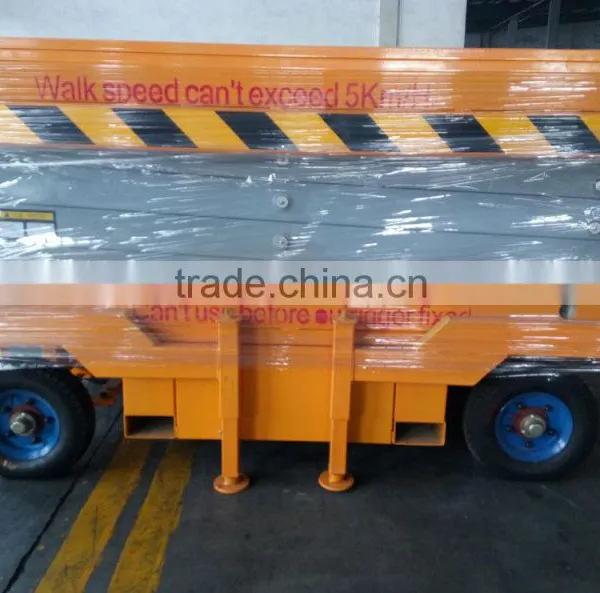

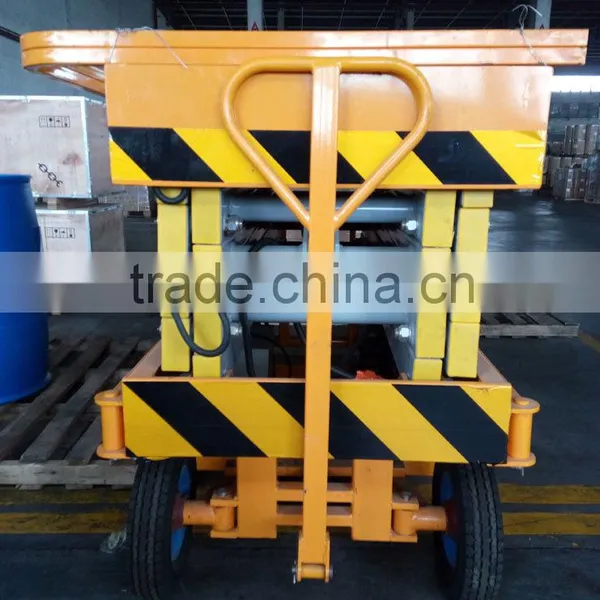

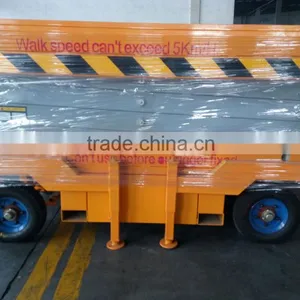

14m Hydraulic Scissor Lift Capacity 500kg With High Quality

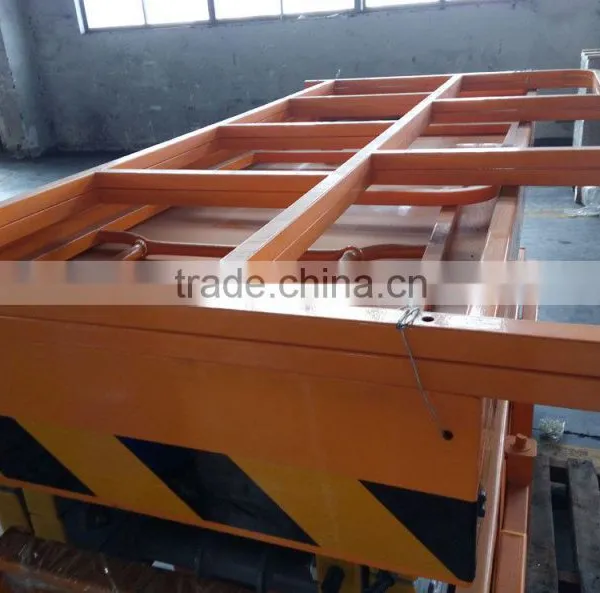

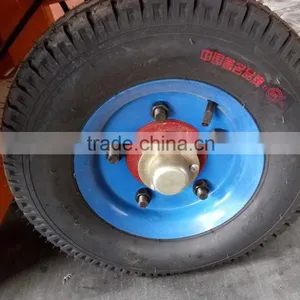

The series scissor lift include: 4-wheel moving, 3-wheel auto-moving, 2-wheel drawing, the main structure is made of manganese steel rectangle pipe which is made from Shanghai Baosteel Group. The lifting and droping of the table is by electric or manual, by which there is a better performance in moving, lifting, operation and loading. The power input can be designed according to customers’ requests, the hydralic pumps are from Italy or Chinese famous manufacturer. On the operation table, there is slideproof and insulation rubber plate, which is beautiful and easy replacing. Mainly used for aerial operation in mining plants, work shops, ship plants and dock etc.
| Specification for Scissor lift VHSL series | |||||
| Model | Platform size | Loading capacity | Lifting height | Overall dimension(mm) | Self-weight (Kg) |
| Loading capacity : 300KG | |||||
| VHSL0.3-4 | 2100*820mm | 300kg | 4m | 2200*980*1100 | 750 |
| VHSL0.3-6 | 2100*820mm | 300kg | 6m | 2200*950*1200 | 850 |
| VHSL0.3-7 | 2100*820mm | 300kg | 7m | 2200*950*1280 | 900 |
| VHSL0.3-8 | 2100*900mm | 300kg | 8m | 2200*1060*1380 | 1050 |
| VHSL0.3-9 | 2100*900mm | 300kg | 9m | 2200*1060*1500 | 1200 |
| VHSL0.3-10 | 2100*1200mm | 300kg | 10m | 2200*1350*1530 | 1450 |
| VHSL0.3-11 | 2100*1200mm | 300kg | 11m | 2200*1400*1650 | 1650 |
| VHSL0.3-12 | 2550*1500mm | 300kg | 12m | 2720*1670*1750 | 2400 |
| VHSL0.3-14 | 2550*1500mm | 300kg | 14m | 2800*1800*1950 | 2750 |
| VHSL0.3-16 | 3070*1600mm | 300kg | 16m | 3250*1800*1920 | 3400 |
| VHSL0.3-18 | 3070*1600mm | 300kg | 18m | 3250*1800*2080 | 3600 |
| Loading capacity : 500KG | |||||
| VHSL0.5-4 | 2100*800 | 500 | 4m | 2200*1100*1300 | 830kg |
| VHSL0.5-6 | 2100*800 | 500 | 6m | 2200*1100*1300 | 900kg |
| VHSL0.5-7 | 2100*800 | 500 | 7m | 2200*1100*1350 | 950kg |
| VHSL0.5-8 | 2100*900 | 500 | 8m | 2200*1200*1450 | 1100kg |
| VHSL0.5-9 | 2100*900 | 500 | 9m | 2200*1200*1500 | 1260kg |
| VHSL0.5-10 | 2100*1200 | 500 | 10m | 2200*1400*1550 | 1500kg |
| VHSL0.5-11 | 2100*1200 | 500 | 11m | 2200*1400*1700 | 1700kg |
| VHSL0.5-12 | 2550*1500 | 500 | 12m | 2800*1800*1750 | 2480kg |
| VHSL0.5-14 | 2550*1500 | 500 | 14m | 2800*1800*1750 | 2800kg |
| VHSL0.5-16 | 3220*1650 | 500 | 16m | 3600*1950*2200 | 4500kg |
| VHSL0.5-18 | 3220*1650 | 500 | 18m | 3600*1950*2400 | 4800kg |
Shanghai Vlift Equipment Co., Ltd. is one of the leading suppliers of diesel forklifts, gasoline/LPG forklifts, electric forklift, electric pallet trucks, electric stackers, manual pallet trucks, manual stackers, oil drum carriers, container ramps, work platforms, and lift tables.
Vlift aims at provide you high quality, high performance material handling equipment.
Everywhere in the world you can see products made in China, and Vlift has the responsibility to offer you the satisfactory equipments at good price.
|
|
|
|
|
|
