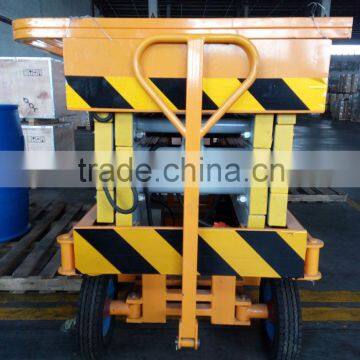

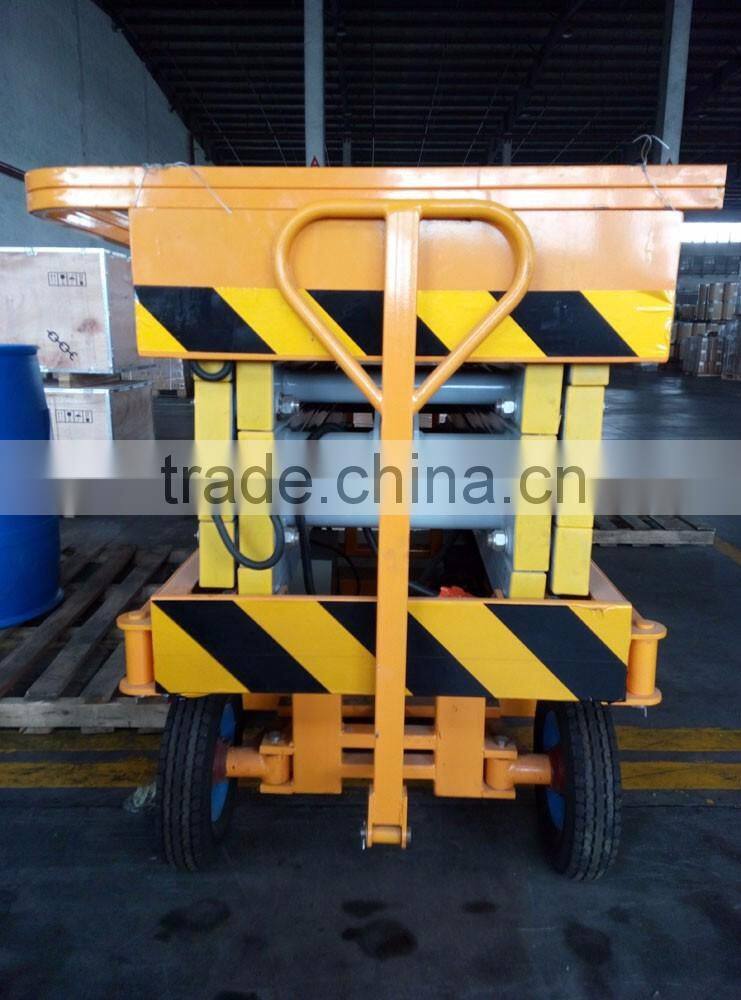

7m Hydraulic Scissor Lift Platform Capacity 500kg
The series scissor lift include: 4-wheel moving, 3-wheel auto-moving, 2-wheel drawing, the main structure is made of manganese steel rectangle pipe which is made from Shanghai Baosteel Group. The lifting and droping of the table is by electric or manual, by which there is a better performance in moving, lifting, operation and loading. The power input can be designed according to customers’ requests, the hydralic pumps are from Italy or Chinese famous manufacturer. On the operation table, there is slideproof and insulation rubber plate, which is beautiful and easy replacing. Mainly used for aerial operation in mining plants, work shops, ship plants and dock etc.
| Specification for Scissor lift VHSL series | |||||
| Model | Platform size | Loading capacity | Lifting height | Overall dimension(mm) | Self-weight (Kg) |
| Loading capacity : 300KG | |||||
| VHSL0.3-4 | 2100*820mm | 300kg | 4m | 2200*980*1100 | 750 |
| VHSL0.3-6 | 2100*820mm | 300kg | 6m | 2200*950*1200 | 850 |
| VHSL0.3-7 | 2100*820mm | 300kg | 7m | 2200*950*1280 | 900 |
| VHSL0.3-8 | 2100*900mm | 300kg | 8m | 2200*1060*1380 | 1050 |
| VHSL0.3-9 | 2100*900mm | 300kg | 9m | 2200*1060*1500 | 1200 |
| VHSL0.3-10 | 2100*1200mm | 300kg | 10m | 2200*1350*1530 | 1450 |
| VHSL0.3-11 | 2100*1200mm | 300kg | 11m | 2200*1400*1650 | 1650 |
| VHSL0.3-12 | 2550*1500mm | 300kg | 12m | 2720*1670*1750 | 2400 |
| VHSL0.3-14 | 2550*1500mm | 300kg | 14m | 2800*1800*1950 | 2750 |
| VHSL0.3-16 | 3070*1600mm | 300kg | 16m | 3250*1800*1920 | 3400 |
| VHSL0.3-18 | 3070*1600mm | 300kg | 18m | 3250*1800*2080 | 3600 |
| Loading capacity : 500KG | |||||
| VHSL0.5-4 | 2100*800 | 500 | 4m | 2200*1100*1300 | 830kg |
| VHSL0.5-6 | 2100*800 | 500 | 6m | 2200*1100*1300 | 900kg |
| VHSL0.5-7 | 2100*800 | 500 | 7m | 2200*1100*1350 | 950kg |
| VHSL0.5-8 | 2100*900 | 500 | 8m | 2200*1200*1450 | 1100kg |
| VHSL0.5-9 | 2100*900 | 500 | 9m | 2200*1200*1500 | 1260kg |
| VHSL0.5-10 | 2100*1200 | 500 | 10m | 2200*1400*1550 | 1500kg |
| VHSL0.5-11 | 2100*1200 | 500 | 11m | 2200*1400*1700 | 1700kg |
| VHSL0.5-12 | 2550*1500 | 500 | 12m | 2800*1800*1750 | 2480kg |
| VHSL0.5-14 | 2550*1500 | 500 | 14m | 2800*1800*1750 | 2800kg |
| VHSL0.5-16 | 3220*1650 | 500 | 16m | 3600*1950*2200 | 4500kg |
| VHSL0.5-18 | 3220*1650 | 500 | 18m | 3600*1950*2400 | 4800kg |
