2.5 Ton Hydraulic Diesel Forklift Truck With Japanese Isuzu Engine

2.5 Ton Hydraulic Diesel Forklift Truck With Japanese Isuzu Engine thumbnail-1
2.5 Ton Hydraulic Diesel Forklift Truck With Japanese Isuzu Engine thumbnail-2

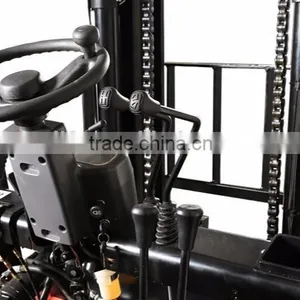

2.5 Ton Hydraulic Diesel Forklift Truck With Japanese Isuzu Engine thumbnail-3
2.5 Ton Hydraulic Diesel Forklift Truck With Japanese Isuzu Engine thumbnail-4

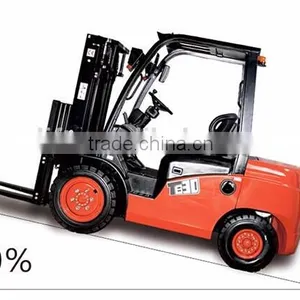

2.5 Ton Hydraulic Diesel Forklift Truck With Japanese Isuzu Engine thumbnail-5

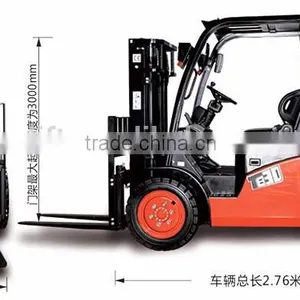

2.5 Ton Hydraulic Diesel Forklift Truck With Japanese Isuzu Engine thumbnail-6
2.5 Ton Hydraulic Diesel Forklift Truck With Japanese Isuzu Engine photo-1

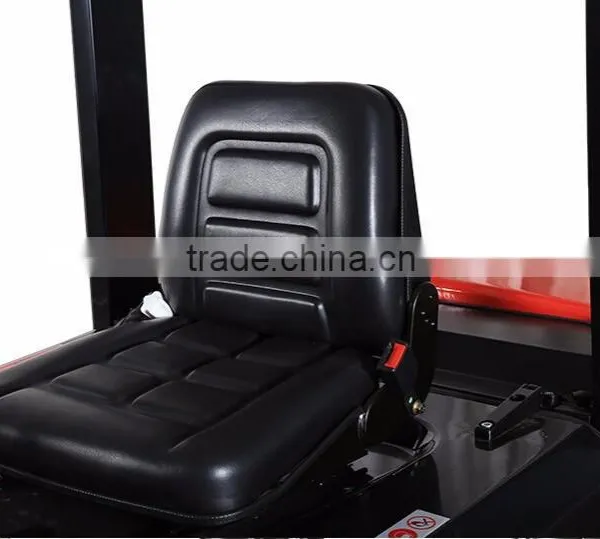

2.5 Ton Hydraulic Diesel Forklift Truck With Japanese Isuzu Engine photo-2

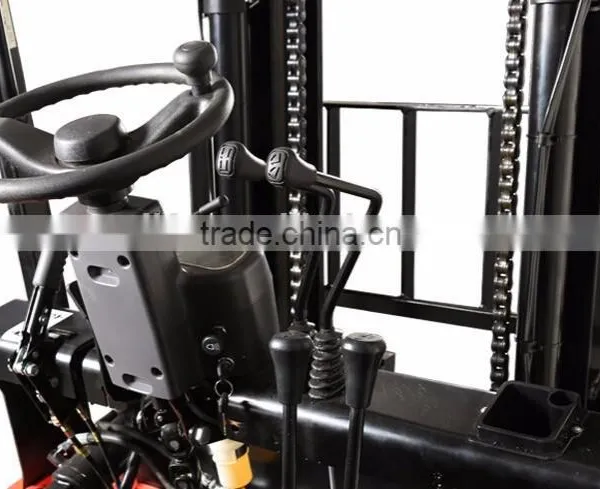

2.5 Ton Hydraulic Diesel Forklift Truck With Japanese Isuzu Engine photo-3

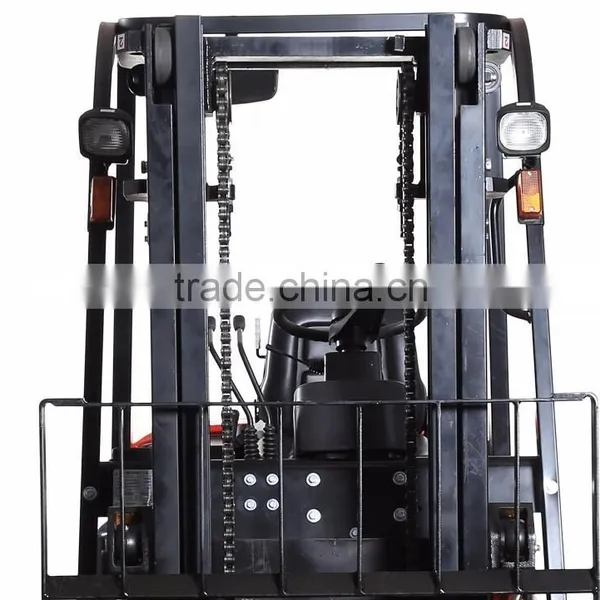

2.5 Ton Hydraulic Diesel Forklift Truck With Japanese Isuzu Engine photo-4

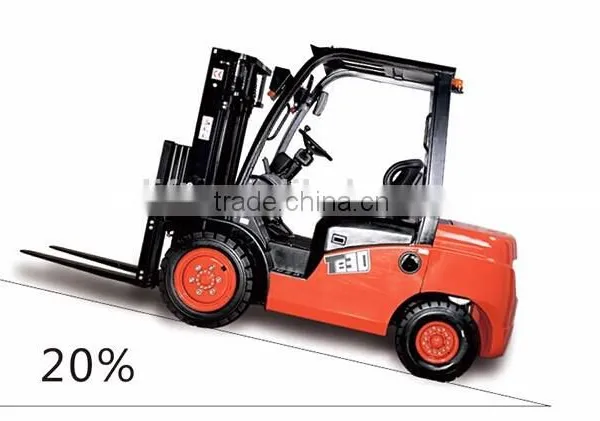

2.5 Ton Hydraulic Diesel Forklift Truck With Japanese Isuzu Engine photo-5

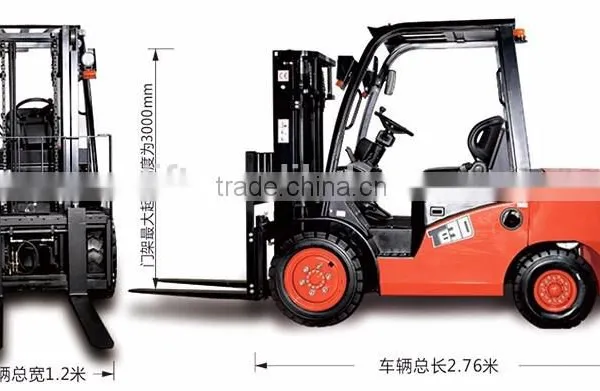

2.5 Ton Hydraulic Diesel Forklift Truck With Japanese Isuzu Engine photo-6
US$ 9,300 - 9,500 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
VLIFT
Contact Supplier Request Quote Chat Now
Shanghai Vlift Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao Ningbo port for forklift
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Brand Name VLIFT
Model Number CPCD25
Type Other, forklift
Power Souce Diesel Engine
Rated Loading Capacity 2500kg
Max. Lifting Height 4030mm
Min. Lifting Height 1995mm
Fork Length 1070mm
Fork Width 120mm
Overall Dimensions 2530*1150*1995mm
Certification CE ISO SGS
After-sales Service Provided Engineers available to service machinery overseas

2.5 Ton Hydraulic Diesel Forklift Truck With Japanese Isuzu Engine
2.5 Ton Hydraulic Diesel Forklift Truck With Japanese Isuzu Engine



CPCD25 Technology Specification
Manufacturer VLIFT
Model Power shift CPCD25
Load capacity kg 2500
Load center   mm 500
Power unit   Diesel
Operator type Driver/seat
Tire type Pneumatic
Wheel    Front/rear 2/2
Max. lifting height mm 3000
Free lift mm 160
Fork size               L*W*T mm 1070*122*40
Tilt range   Mast forward/backward deg 6/12
Overall length(without fork) mm 2530
Total width mm 1150
Mast height (fork lowering) mm 1995
Overall height fork raised With backrest mm 4030
Height to head guard mm 2120
Turning raduis(outside) mm 2240
Front face of fork to front axle mm 450
Min. right angle stacking aisle without load length&clearence                      mm 2690
Speed Max Travelling full/no load km/h 17/19
Lifting full/no load mm/s 550/580
Lowering full/no load mm/s 450/550
Max.drawbar pull Power shift T/M full/no load kg 1670/830
Gradeability at 1.6km/h Power shift T/M full/no load % 23/18
Truck weight kg 3670
Weight  distribution Full  load
front/rear		 kg 5410/760
No  load
front/rear		 kg 1430/2240
Tires Number  front/rear 2/2
Model front axle   7.00-12-12PR
rear axle  6.00-9-10PR
Wheelbase mm 1600
Tread Front/rear mm 970/970
Ground clearence At lowest point(mast) mm 110
Frame mm 115
Brake Service  brake Hydraulic-foot pedal
Parking brake  Mechanical-hand lever
Battery Voltage/capacity V/AH 12/80
Engine Model  isuzu C240
Rated power kw/rpm 34.3/2500
Rated torque N.m 138/1800
Number of cylinders  4
Placement  L 2.369
Fuel tank capacity L 70
Transmission Speed forward/backward Power shift 1-1 power shift
Operating pressure Hydraulic system pressure kg/cm² 180





2.5 Ton Hydraulic Diesel Forklift Truck With Japanese Isuzu Engine2.5 Ton Hydraulic Diesel Forklift Truck With Japanese Isuzu Engine2.5 Ton Hydraulic Diesel Forklift Truck With Japanese Isuzu Engine

2.5 Ton Hydraulic Diesel Forklift Truck With Japanese Isuzu Engine

2.5 Ton Hydraulic Diesel Forklift Truck With Japanese Isuzu Engine

2.5 Ton Hydraulic Diesel Forklift Truck With Japanese Isuzu Engine





Certifications

2.5 Ton Hydraulic Diesel Forklift Truck With Japanese Isuzu Engine

FAQ

1. How long it will take to deliver the product after I pay for it?

Above price valid time is 25 days.

2. What is the payment term?

Our Payment: T/T, L/C, etc.

3. How long is the warranty period any forklift, pallet truck, stacker, scissor lift etc?

Our equipment quality warranty is 1 year or 2000 hours which comes first.

4. What kinds of engine do you have and any gurantee?

Chinese engine, Japanese ISUZU, Mitsubishi, YANMAR, Nissan K21, Nissan K25 engine as per your request. Absolutely high quality.

5. How many colors of forklift you can supply?

Sliver, Orange, Yellow, Red. As Per Your Request.

6,What is the forklift standard configuration and spare parts?

Wide vision mast,standard fork,standard seat,direction switch,backrest,reversing lights,reversing buzzer,back-up mirror,light switch,light armor rack,klaxon,two pieces of multi-way valve,electric control,rear combination lamp,overhead guard,rain cover,urable tyre,lasso-parking brake,lifting and tilt joystick,rate-limiting valve of lifting,draebar pin,lighting,adjustable steering wheel,lilt line self-lock valve,full hydraulic power steering,handle,tool box,combination instrument,hydraulic return filter,hydraulic oil suction filter,hydraulic vernier,switch,brake,turning indicator.
