Home > Transportation > Forklifts & Parts > Forklift > 1.5ton China Hydraulic Diesel Forklift Truck for Sale

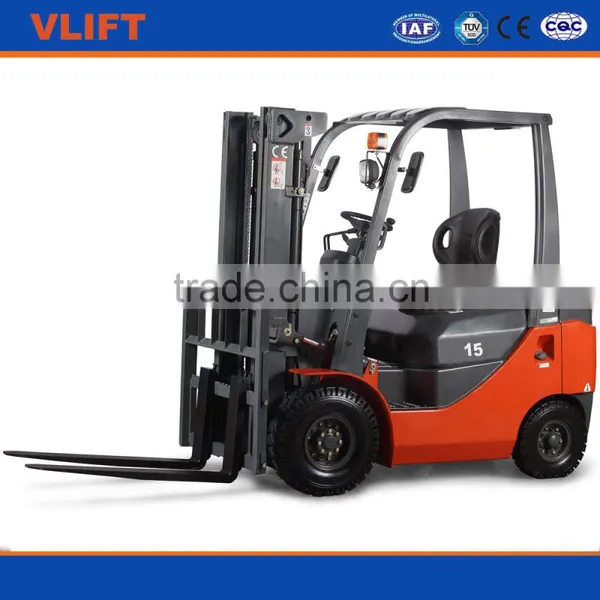

1.5ton China Hydraulic Diesel Forklift Truck for Sale
US$ 6,800 - 6,900
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
VLIFT
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao Ningbo port for forklift
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2ton China Hydraulic Diesel Forklift Truck for Sale With Isuzu EngineUS$ 8,300 - 9,800MOQ: 1 Piece -
2.5ton China Hydraulic Diesel Forklift Truck for SaleUS$ 7,400 - 9,800MOQ: 1 Piece
-
3ton China Hydraulic Diesel Forklift Truck for Sale With ISUZU EngineUS$ 8,572 - 9,800MOQ: 1 Piece
-
Hydraulic Diesel Forklift Truck 3.5ton for SaleUS$ 7,800 - 9,800MOQ: 1 Piece
-
Hydraulic Diesel Forklift Truck 3.5ton (red Colour)for SaleUS$ 7,800 - 9,800MOQ: 1 Piece
Condition
New
Place of Origin
Jiangsu, China
Brand Name
VLIFT
Model Number
CPCD15
Type
Manual Pallet Truck
Power Souce
Diesel Engine
Rated Loading Capacity
1500kg
Max. Lifting Height
3000mm
Min. Lifting Height
1995mm
Fork Length
920mm
Fork Width
120mm
Overall Dimensions
2295*1086*1995mm
Certification
CE ISO SGS
After-sales Service Provided
Engineers available to service machinery overseas

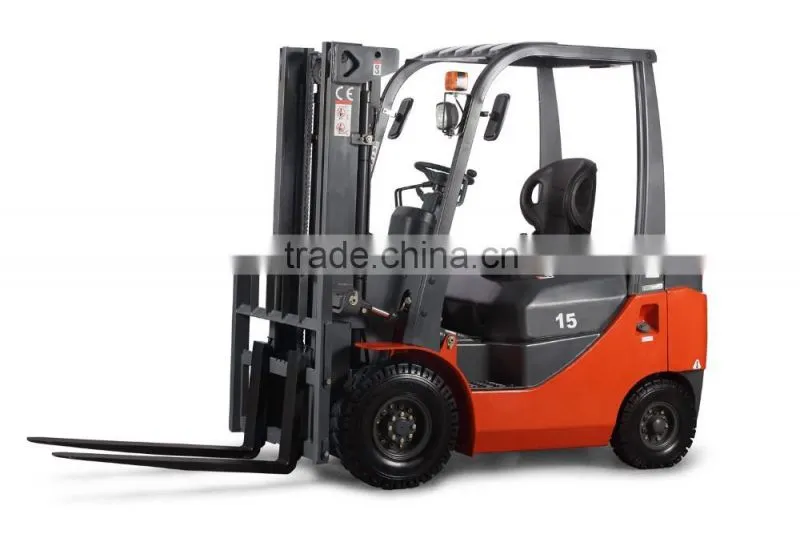

1.5ton hydraulic diesel forklift truck
Product Description
| CPCD 15 Technology Specification | |||
| Manufacturer | VLIFT | ||
| Model | Power shift | CPCD15 | |
| Load capacity | kg | 1500 | |
| Load center | mm | 500 | |
| Power unit | diesel | ||
| Operator type | Driver/seat | ||
| Tire type | Pnenumatic | ||
| Wheel | Front/rear | 2/2 | |
| Max. lifting height | mm | 3000 | |
| Free lift | mm | 155 | |
| Fork size | L×W×T | mm | 920*100*35 |
| Tilt range | Mast forward/backward | deg | 6/12 |
| Overall length(without fork) | mm | 2245 | |
| Total width | mm | 1070 | |
| Mast height ( fork lowering) | mm | 1995 | |
| Overall height fork raised ( with backrest) | mm | 4030 | |
| Height to head guard | mm | 2060 | |
| Turning raduis(outside) | mm | 2040 | |
| Front face of fork to front axle | mm | 395 | |
| Min. right angle stacking aisle | mm | 2435 | |
| Speed | Max Travelling | (full load)km/h | 14 |
| km/h(no load) | 14.5 | ||
| Lifting | (full load)mm/s | 440 | |
| (no load)mm/s | 500 | ||
| Lowering | (full load)mm/s | 370 | |
| mm/s | 530 | ||
| Max.drawbar pull | full/no load | Kg | 1130/690 |
| Gradeability at 1.6km/h | full/no load | % | 21/18 |
| Truck weight | kg | 2550 | |
| Weight distribution |
full load | (front )kg | 3580 |
| (rear )kg | 470 | ||
| no load | (front )kg | 1110 | |
| (rear )kg | 1440 | ||
| front wheel | 6.50-10-10PR | ||
| rear wheel | 5.00-8-10PR | ||
| Wheelbase | mm | 1425 | |
| Tread | front | mm | 890 |
| rear | mm | 900 | |
| Ground clearence |
At lowest point(mast) | mm | 115 |
| Frame | mm | 105 | |
| Brake | Service brake | Hydraulic-foot pedal | |
| Parking brake | Mechanical-hand lever | ||
| Battery | Voltage/capacity | 12/80 | |

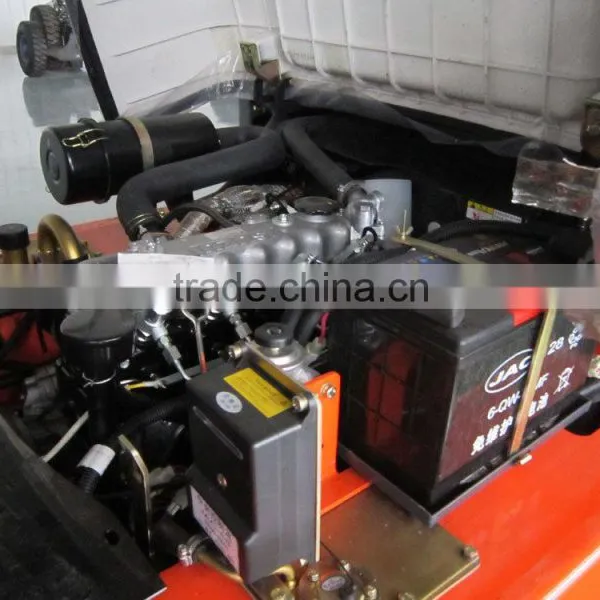

| Engine | Model | XINCHAI NC485 | |
| Rated power | kw/rpm | 34.3/2500 | |
| Rated torque | Nm/rpm | 138/1800 | |
| Number of cylinders | 4 | ||
| Placement | L | 2.369 | |
| Fuel tank capacity | L | 50 | |
| Transmission | Speed forward/backward | 1-1 power shift | |
| Operating pressure | Hydraulic system pressure | Kg/cm² | 180 |
Packaging & Shipping
Vlift forklift export standard package; Full set documents including spare parts list, operate maintenance manual and engine operate manual; One set of inspeciton certificate issued by manufacturer; One set of common use tools; All above mentioned will be put in tool box.
Certifications
Our Factory Show
Shanghai Vlift Equipment Co., Ltd. is one of the leading suppliers of diesel forklifts, gasoline/LPG forklifts, electric forklift, electric pallet trucks, electric stackers, manual pallet trucks, manual stackers, oil drum carriers, container ramps, work platforms, and lift tables.
Vlift aims at provide you high quality, high performance material handling equipment.
Everywhere in the world you can see products made in China, and Vlift has the responsibility to offer you the satisfactory equipments at good price.
