1.2 Ton Electric Forklift Trucks WIth Low Price
US$ 6,500 - 6,800
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
VLIFT
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai qingdao ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2 Ton Electric Forklift Trucks With High Quality And Low PriceUS$ 9,900 - 9,950MOQ: 1 Set -
4-Direction Reach Truck 1.5-2.5ton With AC/DC SystemUS$ 20,000 - 30,000MOQ: 1 Set
-
4ton Electric Forklift Truck for SaleUS$ 9,000 - 17,000MOQ: 1 Piece
-
4-Direction Reach Truck 1.5ton 2.5tonUS$ 20,000 - 30,000MOQ: 1 Set
-
1.0 Ton Toyota Electric ForkliftUS$ 6,000 - 6,500MOQ: 1 Set
Condition
New
Place of Origin
Jiangsu, China
Brand Name
VLIFT
Model Number
CPCD12 electric forklift
Type
Powered Pallet Truck
Power Souce
AC Motor
Rated Loading Capacity
1200kg
Max. Lifting Height
3885
Min. Lifting Height
1960
Fork Length
920mm
Fork Width
100mm
Overall Dimensions
2535*948*3885mm(L*W*H)
Certification
ISO Certificate
After-sales Service Provided
Engineers available to service machinery overseas

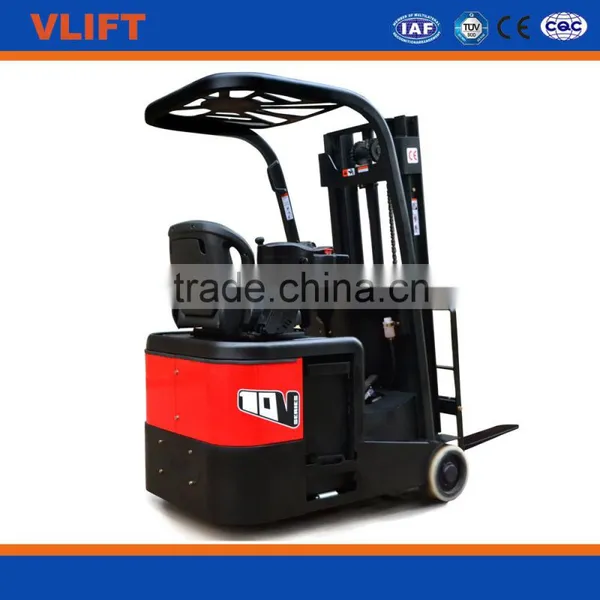

1.2 Ton Electric Forklift
Product Description
| Characteristics | ||||
| 1.2 | Model designation | CPCD10 | CPCD12 | |
| 1.3 | Drive unit | Battery | Battery | |
| 1.4 | Operator type | Rider seated | Rider seated | |
| 1.5 | Load capacity | Q (kg) | 1000 | 1200 |
| 1.6 | Load center | c (mm) | 400 | 500 |
| 1.8 | Wheelbase | x (mm) | 225 | 225 |
| 1.9 | Load distance | y (mm) | 1150 | 1150 |
| Weights | ||||
| 2.1 | Service weight (Incl. battery) | kg | 1830 | 1940 |
| 2.2 | Axle loading, loaded front/ rear | kg | 2470/360 | 2670/470 |
| 2.3 | Axle loading, unloaded front/ rear | kg | 800/1030 | 800/1140 |
| Wheels, Chassis | ||||
| 3.1 | Tyre type | PU | PU | |
| 3.2 | Tyre size, operator side | 285/108 | 285/108 | |
| 3.3 | Tyre size, load side | 230/75 | 230/75 | |
| 3.5 | Wheels, number front/ rear (x=drive wheels) | 2/1 | 2/1 | |
| 3.6 | Tread, front | b10 (mm) | 830 | 830 |
| 3.7 | Tread, rear | b11 (mm) | —— | —— |
| Dimensions | ||||
| 4.1 | Mast/ fork carriage tilt, forward/ backward | α/ β (°) | 2°/2° | 2°/ 2° |
| 4.2 | Height, mast lowered | h1 (mm) | 1980 | 1980 |
| 4.3 | Free lift | h2 (mm) | 120 | 120 |
| 4.4 | Lift height | h3 (mm) | 2930 | 2930 |
| 4.5 | Height, mast extended | h4 (mm) | 3885 | 3885 |
| 4.7 | Height of overhead guard (cabin) | h6 (mm) | 1985 | 1985 |
| 4.8 | Seat height | h7 (mm) | 970 | 970 |
| 4.12 | Tow coupling height | h10 (mm) | —— | —— |
| 4.19 | Overall length | l1 (mm) | 2530 | 2530 |
| 4.2 | Length to face of forks | l2 (mm) | 1610 | 1610 |
| 4.21 | Overall width | b1/ b2 (mm) | 948 | 948 |
| 4.22 | Fork dimensions | s/ e/ l (mm) | 920×100×35 | 920×100×35 |
| 4.23 | Fork carriage type | 2A | 2A | |
| 4.24 | Fork carriage width | b3 (mm) | 800 | 800 |
| 4.31 | Ground clearance, loaded, below mast | m1 (mm) | 85 | 85 |
| 4.32 | Ground clearance, center of wheelbase | m2 (mm) | 95 | 95 |
| 4.33 | Aisle width, 1000×1200 pallet crossways | Ast (mm) | 3100 | 3160 |
| 4.34 | Aisle width, 800×1200 pallet lengthways | Ast (mm) | 2850 | 3000 |
| 4.35 | Outer turning radius | Wa (mm) | 1450 | 1450 |
| Performance | ||||
| 5.1 | Travel speed, loaded/ unloaded | km/ h | 6/6.5 | 6/6.5 |
| 5.2 | Lifting speed, loaded/ unloaded | m/ s | 0.13/0.2 | 0.12/0.2 |
| 5.3 | Reach speed,loaded/ unloaded | m/ s | 0.14/0.125 | 0.14/0.125 |
| 5.5 | Drawbar pull(loaded/unloaded) | N | —— | —— |
| 5.6 | Maximum drawbar pull, loaded S2 5 min. | N | —— | —— |
| 5.7 | Gradeability(loaded/unloaded) | % | 6/8 | 6/8 |
| 5.8 | Maximum gradeability, loaded/ unloaded S2 5 min. | % | —— | —— |
| 5.9 | accelerating time, loaded/unloaded | s | —— | —— |
| 5.1 | Service brake | Hydraulic/mechanical | Hydraulic/mechanical | |
| Drive | ||||
| 6.1 | Drive motor rating S2 60 min. | kW | 1.5 | 1.5 |
| 6.2 | Lift motor rating at S3 15% | kW | 3 | 3 |
| 6.3 | Battery standard | —— | —— | |
| 6.4 | Battery voltage/ rated capacity | V/ Ah | 24/ 360 | 24/ 360 |
| 6.5 | Battery weight | kg | 360 | 360 |
| Battery dimensions l/ w/ h | mm | —— | —— | |
| 6.6 | Energy consumption | Kw/ h | —— | —— |
| Others | ||||
| 8.1 | Type of drive control | AC | AC | |
| 8.2 | Operating pressure for attachment | bar | —— | —— |
| 8.3 | Hydraulic oil volume of attachments | l/ min | —— | —— |
| 8.4 | Sound level at operator's ear | dB (A) | 70 | 70 |
| 8.5 | Tow bolt | —— | —— | |
Packaging & Shipping
Vlift forklift export standard package; Full set documents including spare parts list, operate maintenance manual and engine operate manual; One set of inspeciton certificate issued by manufacturer; One set of common use tools; All above mentioned will be put in tool box.
Certifications
Our Factory Show
Shanghai Vlift Equipment Co., Ltd. is one of the leading suppliers of diesel forklifts, gasoline/LPG forklifts, electric forklift, electric pallet trucks, electric stackers, manual pallet trucks, manual stackers, oil drum carriers, container ramps, work platforms, and lift tables.
Vlift aims at provide you high quality, high performance material handling equipment.
Everywhere in the world you can see products made in China, and Vlift has the responsibility to offer you the satisfactory equipments at good price.
