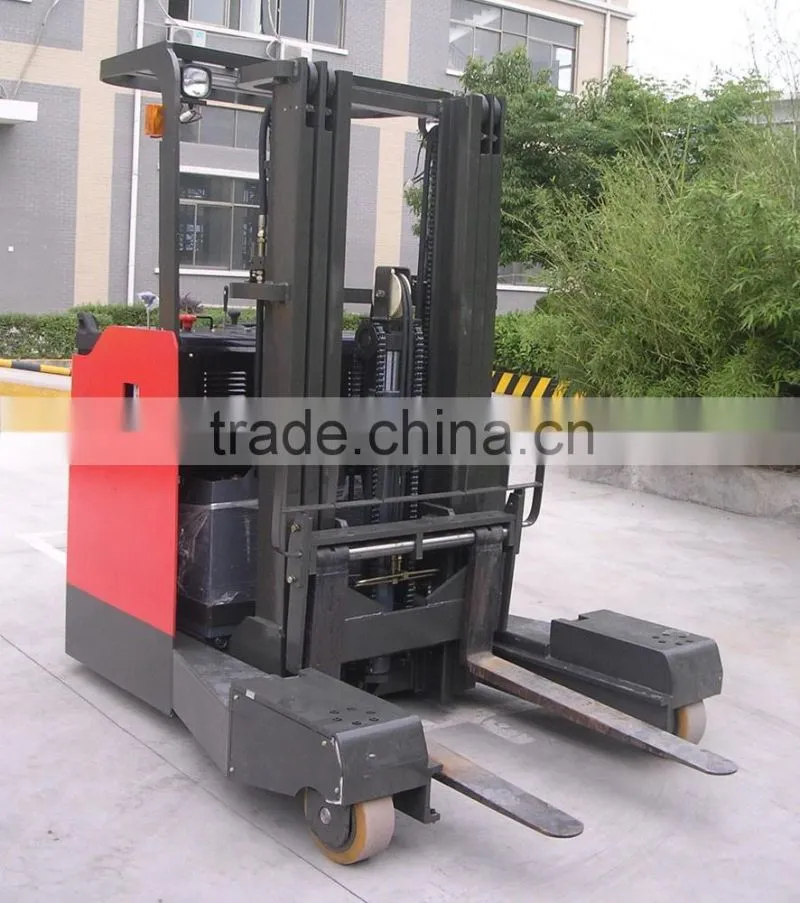

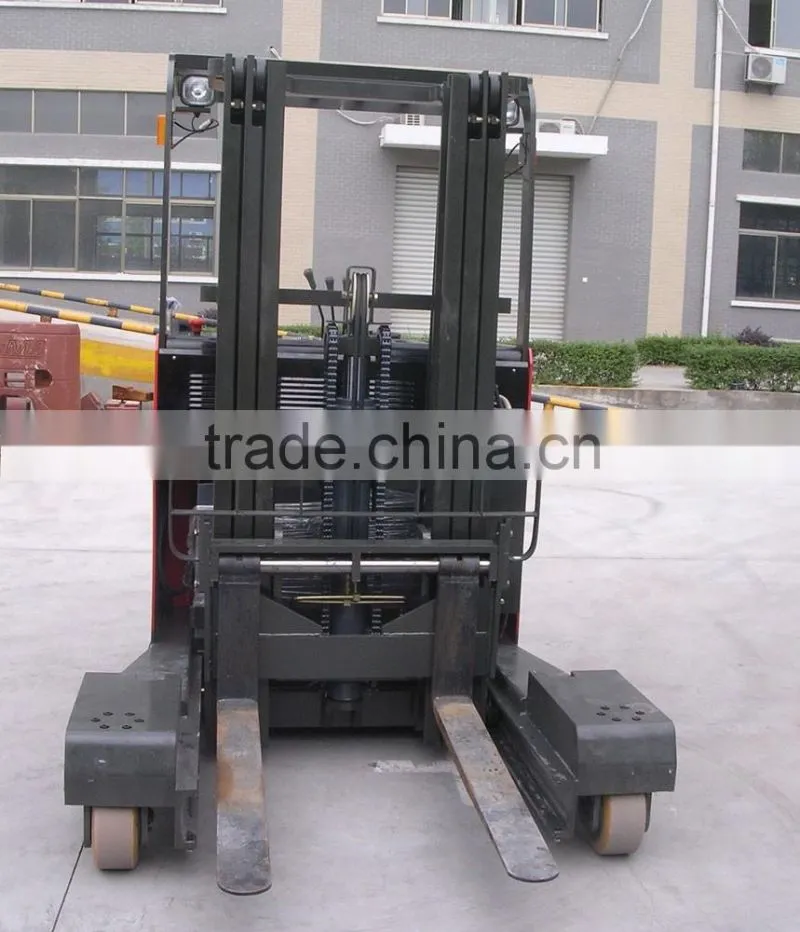

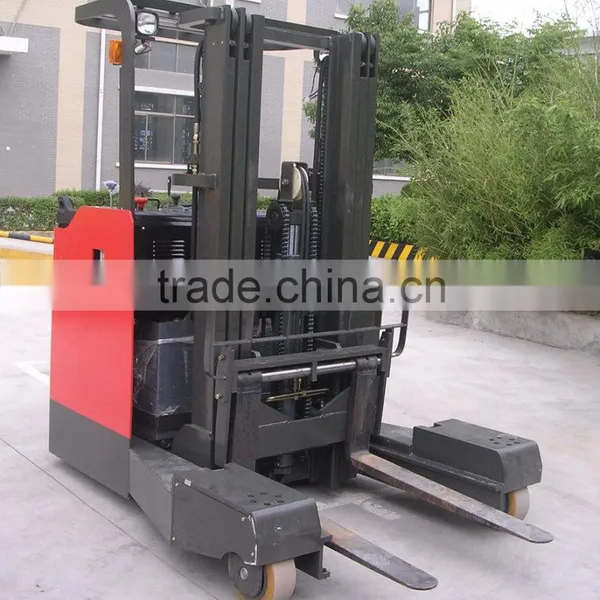

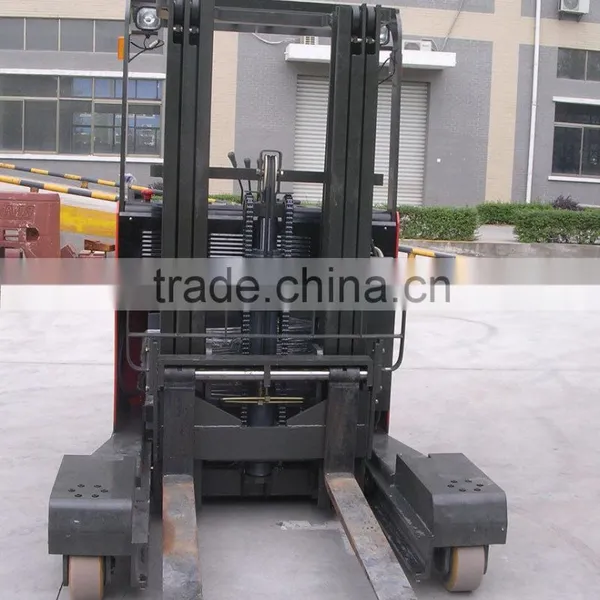

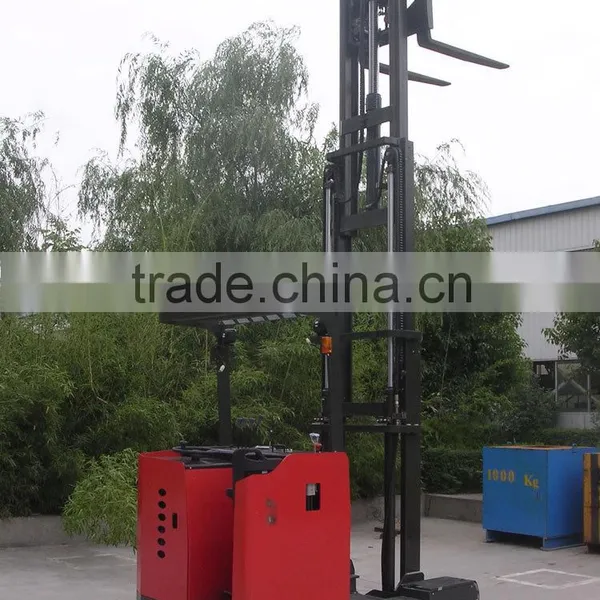

4-Direction Reach Truck 1.5-2.5ton with AC/DC systerm
Features:
1. Safety Device for neutral position to increase the safety of forklift;
2. High Strength frame to protect the operator;
3. Oil-way stop Valve,to protect the operator and goods;
4. AC electric controller with multiple automatic safety protection settings, to reduce the operation accident by misoperation;
5. Inching capacity, the forklift can finish the extremely adjustment during moving;
6. With Imported AC motor without Carbon brush, dustproof, damp proofing,long working life, lower use-cost, controlled voltage/frequency;
7. To use water-proof and dust-proof design for all circuit, to aviod the shortcircuiting happened;
8. To use intelligent charger, auto analysis the residual energy and optimizing the charging process, without manual operation and extend the battery working life effectivly;
9. High Speed Limited, the forklift will reduce the lift speed when lift to a high position;
10. High Strength overhead guard to protect the operator.
| Standard | ||||
| 1.1 | Brand | VLIFT | VLIFT | |
| 1.2 | Model | TFB15 | TFB25 | |
| 1.3 | Power type | Battery | Battery | |
| 1.4 | Operation mode | Stand-on | Stand-on | |
| 1.5 | Loading capacity | Q(kg) | 1500 | 2500 |
| 1.6 | Loading center | C(mm) | 500 | 500 |
| 1.7 | Installation grade | 2A | 2A | |
| Tire, Rim | ||||
| 2.1 | Tire typefront/rear | Solid PU/Solid PU | Solid PU/Solid PU | |
| 2.2 | Left front wheel(Diameter*Width) | mm | 267×65 | 267×65 |
| Right front wheel(D*W) | mm | 267×135 | 267×135 | |
| 2.3 | Driving wheel(D*W) | mm | 343×108 | 380×165 |
| 2.4 | Balance wheel(D*W) | mm | 180×76 | 204×76 |
| 2.5 | Tire quantityfront/rear(X=driving) | 2 / 1X | 2 / 1X | |
| Dimension | ||||
| 3.1 | Forks tiltingforward/backward | α/β(°) | 3/5 | 3/5 |
| 3.2 | Lifting height | h1(mm) | 3000 | 3000 |
| 3.3 | Free lifting height | h2(mm) | 100 | 100 |
| 3.4 | Mast height(closed) | h3(mm) | 2080 | 2085 |
| 3.5 | Mast height(open) | h4(mm) | 3910 | 3920 |
| 3.6 | Overhead guard height | h5(mm) | 2320 | 2320 |
| 3.7 | Distance from pedal to overhead guard | h6(mm) | 1887 | 1887 |
| 3.8 | Min under-clearance | h7(mm) | 80 | 80 |
| 3.9 | Overall length | l1(mm) | 2267 | 2488 |
| 3.10 | Forwarding length | l2(mm) | 545 | 710 |
| 3.11 | Wheelbase | y(mm) | 1350 | 1700 |
| 3.12 | Forward overhang | x(mm) | 175 | 192 |
| 3.13 | Overall width | b1/b2(mm) | 1640 | 1800 |
| 3.14 | Wheeltrackfront/rear | b3/b4(mm) | 1283/680 | 1452/726 |
| 3.15 | Fork size | l/e/s(mm) | 1070×100×35 | 1070×100×45 |
| 3.16 | Fork spread | b5(mm) | 220~662 | 247~780 |
| 3.17 | Aisle(1000×1000 pallet) | Ast(mm) | 2645 | 3084 |
| 3.18 | Aisle width when side driving(1000×1000 pallet) | 2671 | 2887 | |
| 3.19 | Turning radius | Wa(mm) | 1615 | 1979 |
| Function | ||||
| 4.1 | Driving speed load/unload | km/h | 7.5/8.5 | 7.8/9.0 |
| 4.2 | Lifting speed load/unload | mm/s | 117/243 | 110/243 |
| 4.3 | Lowering speedload/unload | mm/s | / | / |
| 4.4 | Towing(S2 5)load/unload | N | / | / |
| 4.5 | Grade ability(S2 5)load/unload | % | ≤10 | ≤10 |
| Power | ||||
| 5.1 | Driving motor type | AC | AC | |
| 5.2 | Driving motor power((S2 60) | kw | 5.5 | 5.5 |
| 5.3 | Lifting motor type | DC | DC | |
| 5.4 | Lifitng motor power(S3 15%) | kw | 6.3 | 7.5 |
| 5.5 | BatteryV/AH | V/Ah | 48/300 | 48/400 |
| Weight | ||||
| 6.1 | Battery weight | kg | 486 | 650 |
| 6.2 | Total weight(include battery) | kg | 2808 | 3814 |
| 6.3 | Axle-load(load)front/rear | kg | / | / |
| 6.4 | Axle-load(unload)front/rear | kg | / | / |
| Steering,Braking | ||||
| 7.1 | Steering type | Full hydraulic | Full hydraulic | |
| 7.2 | Service brake type | Electromagnetic braking | Electromagnetic braking | |
| 7.3 | Service brake mode | Foot step type | Foot step type | |
| 7.4 | Parking brake type | Foot step type | Foot step type | |
| Other | ||||
| 8.1 | Battery placement mode | Side haul | Side haul | |
| 8.2 | ||||
Export standard package; Full set documents including spare parts list, operate maintenance manual and engine operate manual; One set of inspeciton certificate issued by manufacturer; One set of common use tools; All above mentioned will be put in tool box.
