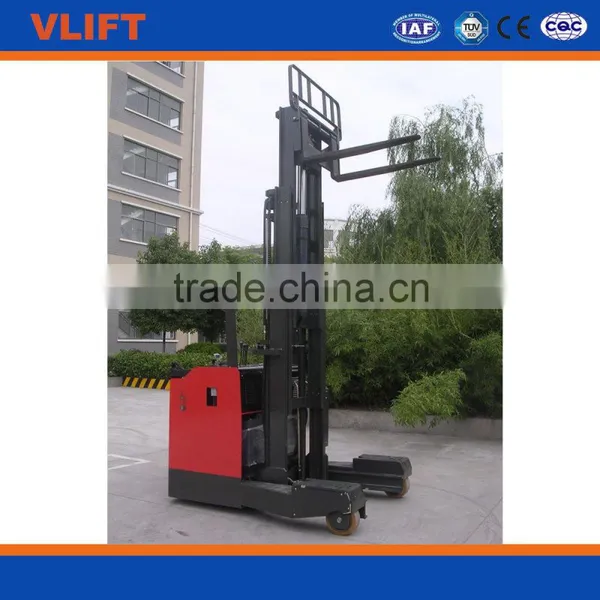

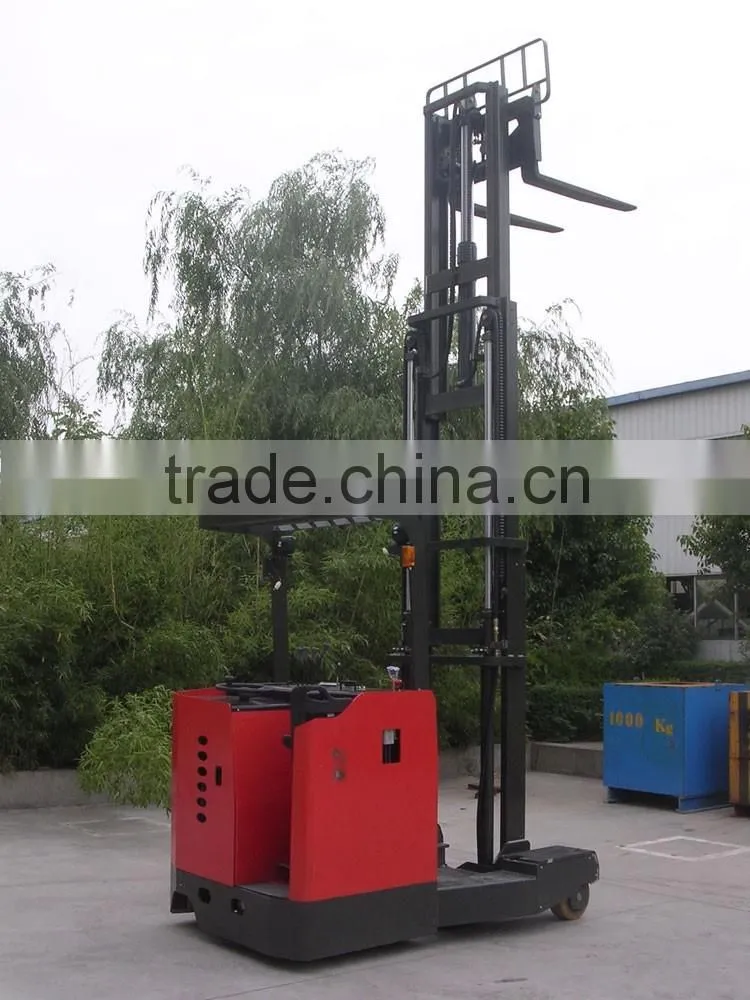

4-Direction Reach Truck 1.5-2.5ton with AC/DC systerm
| Standard | ||||
| 1.1 | Brand | VLIFT | VLIFT | |
| 1.2 | Model | TFB15 | TFB25 | |
| 1.3 | Power type | Battery | Battery | |
| 1.4 | Operation mode | Stand-on | Stand-on | |
| 1.5 | Loading capacity | Q(kg) | 1500 | 2500 |
| 1.6 | Loading center | C(mm) | 500 | 500 |
| 1.7 | Installation grade | 2A | 2A | |
| Tire, Rim | ||||
| 2.1 | Tire typefront/rear | Solid PU/Solid PU | Solid PU/Solid PU | |
| 2.2 | Left front wheel(Diameter*Width) | mm | 267×65 | 267×65 |
| Right front wheel(D*W) | mm | 267×135 | 267×135 | |
| 2.3 | Driving wheel(D*W) | mm | 343×108 | 380×165 |
| 2.4 | Balance wheel(D*W) | mm | 180×76 | 204×76 |
| 2.5 | Tire quantityfront/rear(X=driving) | 2 / 1X | 2 / 1X | |
| Dimension | ||||
| 3.1 | Forks tiltingforward/backward | α/β(°) | 3/5 | 3/5 |
| 3.2 | Lifting height | h1(mm) | 3000 | 3000 |
| 3.3 | Free lifting height | h2(mm) | 100 | 100 |
| 3.4 | Mast height(closed) | h3(mm) | 2080 | 2085 |
| 3.5 | Mast height(open) | h4(mm) | 3910 | 3920 |
| 3.6 | Overhead guard height | h5(mm) | 2320 | 2320 |
| 3.7 | Distance from pedal to overhead guard | h6(mm) | 1887 | 1887 |
| 3.8 | Min under-clearance | h7(mm) | 80 | 80 |
| 3.9 | Overall length | l1(mm) | 2267 | 2488 |
| 3.10 | Forwarding length | l2(mm) | 545 | 710 |
| 3.11 | Wheelbase | y(mm) | 1350 | 1700 |
| 3.12 | Forward overhang | x(mm) | 175 | 192 |
| 3.13 | Overall width | b1/b2(mm) | 1640 | 1800 |
| 3.14 | Wheeltrackfront/rear | b3/b4(mm) | 1283/680 | 1452/726 |
| 3.15 | Fork size | l/e/s(mm) | 1070×100×35 | 1070×100×45 |
| 3.16 | Fork spread | b5(mm) | 220~662 | 247~780 |
| 3.17 | Aisle(1000×1000 pallet) | Ast(mm) | 2645 | 3084 |
| 3.18 | Aisle width when side driving(1000×1000 pallet) | 2671 | 2887 | |
| 3.19 | Turning radius | Wa(mm) | 1615 | 1979 |
| Function | ||||
| 4.1 | Driving speed load/unload | km/h | 7.5/8.5 | 7.8/9.0 |
| 4.2 | Lifting speed load/unload | mm/s | 117/243 | 110/243 |
| 4.3 | Lowering speedload/unload | mm/s | / | / |
| 4.4 | Towing(S2 5)load/unload | N | / | / |
| 4.5 | Grade ability(S2 5)load/unload | % | ≤10 | ≤10 |
| Power | ||||
| 5.1 | Driving motor type | AC | AC | |
| 5.2 | Driving motor power((S2 60) | kw | 5.5 | 5.5 |
| 5.3 | Lifting motor type | DC | DC | |
| 5.4 | Lifitng motor power(S3 15%) | kw | 6.3 | 7.5 |
| 5.5 | BatteryV/AH | V/Ah | 48/300 | 48/400 |
| Weight | ||||
| 6.1 | Battery weight | kg | 486 | 650 |
| 6.2 | Total weight(include battery) | kg | 2808 | 3814 |
| 6.3 | Axle-load(load)front/rear | kg | / | / |
| 6.4 | Axle-load(unload)front/rear | kg | / | / |
| Steering,Braking | ||||
| 7.1 | Steering type | Full hydraulic | Full hydraulic | |
| 7.2 | Service brake type | Electromagnetic braking | Electromagnetic braking | |
| 7.3 | Service brake mode | Foot step type | Foot step type | |
| 7.4 | Parking brake type | Foot step type | Foot step type | |
| Other | ||||
| 8.1 | Battery placement mode | Side haul | Side haul | |
| 8.2 | |
|||
Features:
1. Safety Device for neutral position to increase the safety of forklift;
2. High Strength frame to protect the operator;
3. Oil-way stop Valve,to protect the operator and goods;
4. AC electric controller with multiple automatic safety protection settings, to reduce the operation accident by misoperation;
5. Inching capacity, the forklift can finish the extremely adjustment during moving;
6. With Imported AC motor without Carbon brush, dustproof, damp proofing,long working life, lower use-cost, controlled voltage/frequency;
7. To use water-proof and dust-proof design for all circuit, to aviod the shortcircuiting happened;
8. To use intelligent charger, auto analysis the residual energy and optimizing the charging process, without manual operation and extend the battery working life effectivly;
9. High Speed Limited, the forklift will reduce the lift speed when lift to a high position;
10. High Strength overhead guard to protect the operator.
Export standard package; Full set documents including spare parts list, operate maintenance manual and engine operate manual; One set of inspeciton certificate issued by manufacturer; One set of common use tools; All above mentioned will be put in tool box.
Our equipment quality warranty is 1 year or 2000 hours which comes first.
|
|
|
|
|
|
| diesel forklift | electric forklift | electric stacker | manual stacker | scissor lift | dock ramp |

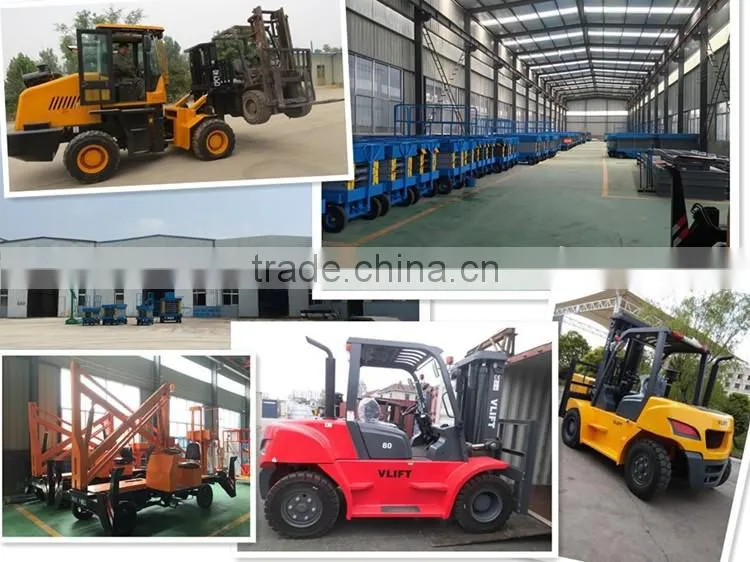

Shanghai Vlift Equipment Co., Ltd. is one of the leading suppliers of diesel forklifts, gasoline/LPG forklifts, electric forklift, electric pallet trucks, electric stackers, manual pallet trucks, manual stackers, oil drum carriers, container ramps, work platforms, and lift tables.
Vlift aims at provide you high quality, high performance material handling equipment.
Everywhere in the world you can see products made in China, and Vlift has the responsibility to offer you the satisfactory equipments at good price.
1. How long it will take to deliver the product after I pay for it?
Above price valid time is 25Days-50Days.
2. What is the payment term?
Our Payment: T/T ,L/C, Western Union, Paypal etc.
3. How long is the warranty period any forklift, pallet truck, stacker, scissor lift etc?
Our equipment quality warranty is 1 year or 2000 hours which comes first.
4. What kinds pf engine do you have and any gurantee?
Chinese engine, Japanese ISUZU And YANMAR engine as your request. Absolutely high quality.
5. How many colors of forklift you can supply?
Sliver, Orange, Yellow, Red. As Your Request.
6,What is the forklift standard configuration and spare parts?
Wide vision mast,standard fork,standard seat,direction switch,backrest,reversing lights,reversing buzzer,back-up mirror,light switch,light armor rack,klaxon,two pieces of multi-way valve,electric control,rear combination lamp,overhead guard,rain cover,urable tyre,lasso-parking brake,lifting and tilt joystick,rate-limiting valve of lifting,draebar pin,lighting,adjustable steering wheel,lilt line self-lock valve,full hydraulic power steering,handle,tool box,combination instrument,hydraulic return filter,hydraulic oil suction filter,hydraulic vernier,switch,brake,turning indicator.
