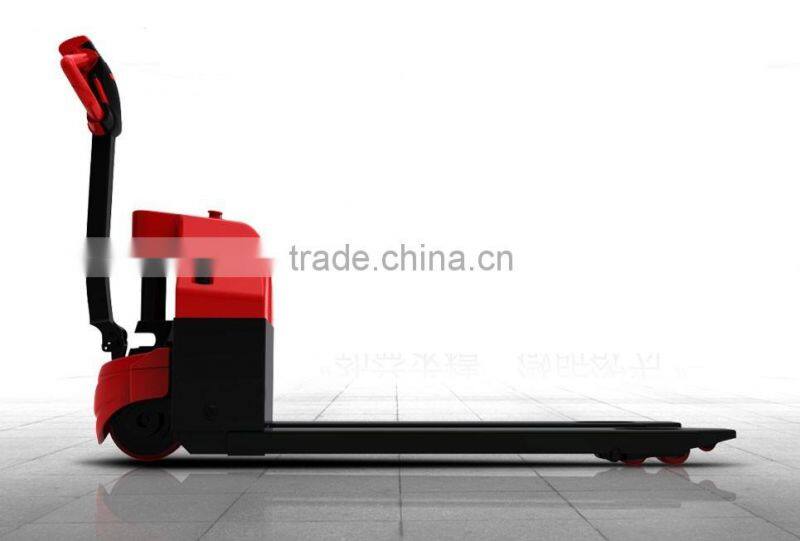

1.5t Electric Pallet Truck With Electronic Scales
US$ 1,800 - 2,500
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
VLIFT
Model Number:
VPT20-15ET
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai qingdao guangzhou ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1.5ton Narrow Aisle Lift Truck Offer Smallest Trunning RadiusUS$ 21,000 - 24,000MOQ: 1 Set -
1Ton Single Column Electric Straddle Stacker With Smallest Working SpaceUS$ 2,500 - 3,500MOQ: 1 Set
-
Electric Sit-down Reach Forklift TruckUS$ 18,000 - 18,000MOQ: 1 Set
-
Electric Sit-down Reach Forklift Truck Free Lift 6mUS$ 10,000 - 15,000MOQ: 1 Set
-
Electric Pallet Truck 2.0 Ton 2.5 TonUS$ 3,400 - 3,600MOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
VLIFT
Model Number
VPT20-15ET
After-sales Service Provided
Engineers available to service machinery overseas
1.5t Electric Pallet Truck with electronic scales
| Characteristics | |||
| 1.2 | Model designation | VPT20-15ET | |
| 1.3 | Drive unit | Battery | |
| 1.4 | Operator type | Walkie | |
| 1.5 | Load capacity | Q (kg) | 1500 |
| 1.6 | Load center | c (mm) | 600 |
| 1.8 | Load distance (Raised/ Lowered) | x (mm) | 883/946 |
| 1.9 | Wheelbase | y (mm) | 1250 |
| Weights | |||
| 2.1 | Service weight (Incl. battery) | kg | 205 |
| 2.2 | Axle loading, laden operator/load side | kg | 500/1005 |
| 2.3 | Axle loading, unladen operator/load side | kg | 25/180 |
| Wheels, Chassis | |||
| 3.1 | Tyre type | PU/ PU | |
| 3.2 | Tyre size, operator side | 210x70 | |
| 3.3 | Tyre size, load side | 2x80x60 | |
| 3.5 | Wheels, number operator/load side (x=drive wheels) | 1x/ 4 | |
| 3.7 | Tread, load side | b11 (mm) | 380 |
| Dimensions | |||
| 4.4 | Lift height | h3 (mm) | 115 |
| 4.9 | Height of tiller arm in operating position, min/ max | h14 (mm) | 820/1170 |
| 4.15 | Fork height, lowered | h13 (mm) | 85 |
| 4.19 | Overall length | l1 (mm) | 1600 |
| 4.20 | Length to face of forks | l2 (mm) | 450 |
| 4.21 | Overall width | b1/ b2 (mm) | 560 685 |
| 4.22 | Fork dimensions | s/ e/ l (mm) | 55/ 150/ 1150 |
| 4.25 | Fork spread, min/ max | b5 (mm) | 560 |
| 4.32 | Ground clearance, center of wheelbase | m2 (mm) | 35 |
| 4.33 | Aisle width, 1000×1200 pallet crossways | Ast (mm) | 1779 |
| 4.34 | Aisle width, 800×1200 pallet lengthways | Ast (mm) | 1929 |
| 4.35 | Outer turning radius | Wa (mm) | 1475 |
| Performance | |||
| 5.1 | Travel speed, laden/ unladen | km/ h | 3.5/ 4 |
| 5.2 | Lifting speed, laden/ unladen | m/ s | 0.051/ 0.060 |
| 5.3 | Lowering speed, laden/ unladen | m/ s | 0.052/ 0.059 |
| 5.8 | Maximum gradeability, laden/ unladen S2 5 min. | % | 2/ 6 |
| 5.10 | Service brake | Electromagnetic | |
| Drive | |||
| 6.1 | Drive motor rating S2 60 min. | kW | 0.65 |
| 6.2 | Lift motor rating at S3 15% | kW | 0.84 |
| 6.4 | Battery voltage/ rated capacity (5h) | V/ Ah | 24/ 60 |
| 6.5 | Battery weight | kg | 45 |
| Battery compartment dimensions l/ w/ h | mm | 260/168/ 212 | |
| Battery type | Maintenance free battery | ||
| Others | |||
| 8.1 | Type of drive control | DC | |
| Manufacturer | CURTIS | ||
| 8.4 | Sound level at operator's ear | dB (A) | 74 |
