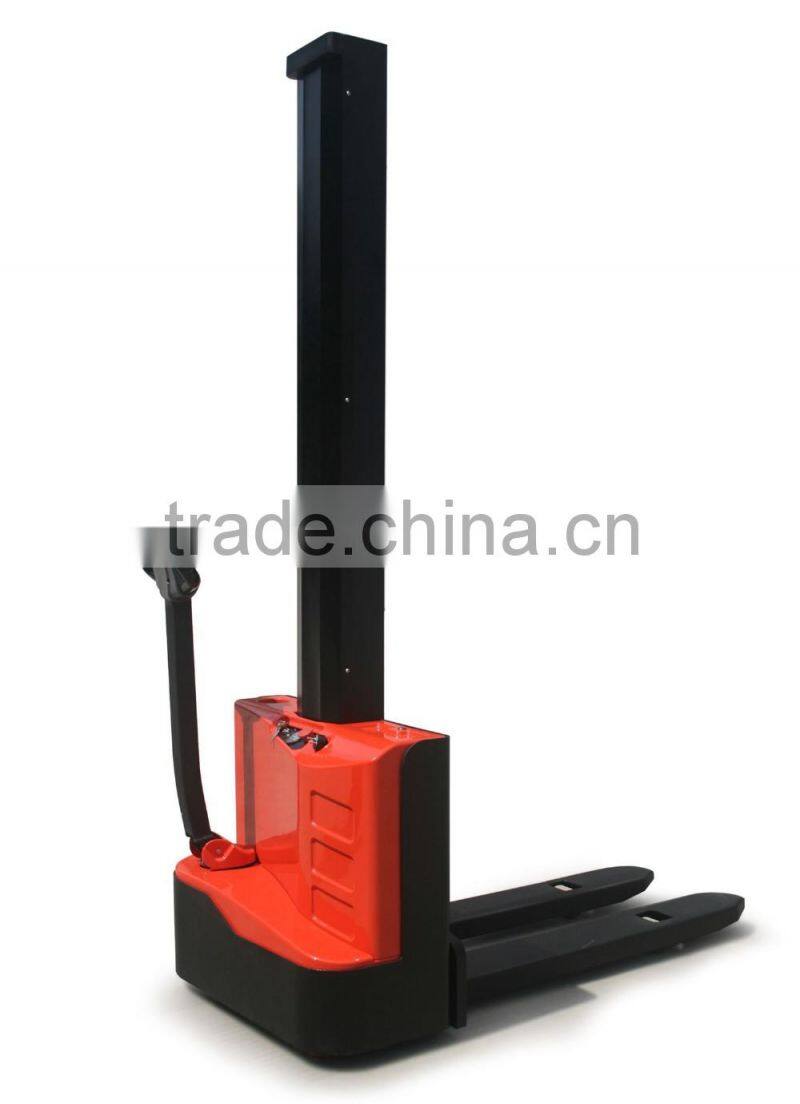

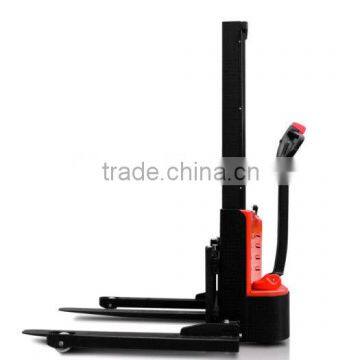

1Ton Single Column Electric Straddle Stacker with smallest working space
| Characteristics | |||
| 1.1 | Manufacturer | VLIFT | |
| 1.2 | Model designation | VS10-10M | |
| 1.4 | Operator type | pedestrian | |
| 1.5 | Load capacity | Q (kg) | 1000 |
| 1.6 | Load center | c (mm) | 600 |
| 1.8 | Load distance | x(mm) | 850 |
| 1.9 | Wheelbase | y(mm) | 1210 |
| Weights | |||
| 2.1 | Service weight (Incl. battery) | kg | 540 |
| 2.2 | Axle loading, laden operator/load side | kg | 680/860 |
| 2.3 | Axle loading, unladen operator/load side | kg | 417 / 123 |
| Wheels, Chassis | |||
| 3.1 | Tyre type | PU/ PU | |
| 3.2 | Tyre size, operator side | mm | Φ210x70 |
| 3.3 | Tyre size, load side | mm | Φ100x50 |
| 3.4 | Balance wheels(dimensions) | mm | Φ100x50 |
| 3.5 | Wheels, number operator/load side (x=drive wheels) | mm | 1x+1/4 |
| 3.6 | Tread,operator side | b10(mm) | 533 |
| 3.7 | Tread, load side | b11(mm) | 1060/1160/1260/1360 |
| Dimensions | |||
| 4.2 | Height, mast lowered | h1 (mm) | 1940 |
| 4.3 | Free lift | h2 (mm) | 1407 |
| 4.4 | Lift height | h3 (mm) | 1520 |
| 4.5 | Height, mast extended | h4 (mm) | 2053 |
| 4.9 | Height of tiller arm in operating position, min/ max | h14(mm) | 860/1200 |
| 4.15 | Fork height, lowered | h13 (mm) | 50 |
| 4.19 | Overall length | l1 (mm) | 1570 |
| 4.20 | Length to face of forks | l2 (mm) | 500 |
| 4.21 | Overall width | b1/ b2 (mm) | 1135/1235/ 1335/1435 |
| 4.22 | Fork dimensions | s/ e/ l (mm) | 35/100/1070 |
| 4.25 | Outside fork width, minimum/ maximum | b5 (mm) | 200~700 |
| 4.32 | Ground clearance | m2 (mm) | 40 |
| 4.33 | Aisle width, 1000×1200 pallet crossways | Ast(mm) | 2175 |
| 4.34 | Aisle width, 800×1200 pallet lengthways | Ast(mm) | 2100 |
| 4.35 | Outer turning radius | Wa/(mm) | 1329 |
| Performance | |||
| 5.1 | Travel speed, laden/ unladen | km/ h | 3.5/4 |
| 5.2 | Lifting speed, laden/ unladen | m/s | 0.12/0.22 |
| 5.3 | Lowering speed, laden/ unladen | m/s | 0.12/0.11 |
| 5.8 | Maximum gradeability, laden/ unladen S2 5 min. | % | 3/ 10 |
| 5.10 | Service brake | Electromagnetic | |
| Drive | |||
| 6.1 | Drive motor rating S2 60 min. | kw | 0.65 |
| 6.2 | Lift motor rating at S3 15% | kw | 2.2 |
| 6.4 | Battery voltage/ rated capacity (5h) | V/Ah | 2×12/80 |
| 6.5 | Battery weight (with box) | kg | 2x20 |
| Battery compartment dimensions l/ w/ h | mm | 260/172/215 | |
| Battery type | Industrial battery | ||
| Others | |||
| 8.1 | Type of drive control | DC CURTIS | |
| 8.4 | Sound level at operator's ear | dB(A) | 74 |
Shanghai Vlift Equipment Co., Ltd. is one of the leading suppliers of diesel forklifts, gasoline/LPG forklifts, electric forklift, electric pallet trucks, electric stackers, manual pallet trucks, manual stackers, oil drum carriers, container ramps, work platforms, and lift tables.
Vlift aims at provide you high quality, high performance material handling equipment.
Everywhere in the world you can see products made in China, and Vlift has the responsibility to offer you the satisfactory equipments at good price.
We not only offer customers from every country in the world professional mhe equipments, but also make friends with machinery customers globally.
Our Strengths are as follows:
(I) Six years professional experience in international trading and rich knowledge in material handling machines & construction machinery, which enable us to turn customer inquiries into final products and export them to numerous countries and regions without barriers;
(II) A well educated and friendly sales team with international vision.
(III) Strong long term dealership from various top manufacturers, assuring that all our products are original brand new ones with competitive price;
(IV) Excellent logistics services (by sea, air, railway or road), ensuring timely delivery of consignments all over the world;
(V) Comprehensive after-sales service, including one year warranty, spare parts supply, installment and maintenance, and training;
(VI) An expertly managed ERP system and a well coordinated quality control system to satisfy various client requirements.
We won the good reputation from reliable quality, competitive price and excellent after-sales service. Our export revenue increases constantly every year, and our products have already entered nearly 100 countries across the continents of South America, Africa, Middle East, Australia, Russia, Middle Asia, South Asia, Southeast Asia, and East Europe. We sincerely hope to cooperate, develop together and build a good future with you. Please feel free to contact us for more information about our products and services.
