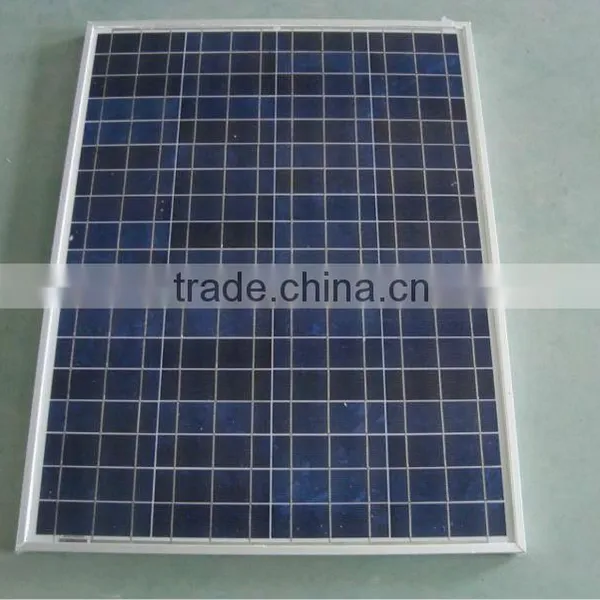

TOP 350w Solar Panel Solar Panel

US$ 0.5 - 0.7 MOQ: 20 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

OEM

Model Number:

1960*992*50

Haining Green Technology Import & Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name OEM

Model Number 1960*992*50

Specification Mini

Application Commercial

Output Voltage (V) 40

Load Power (W) 300

350w solar panel;
High Efficiency solar Cell ;
25 years Warranty ;
ISO9001,ISO14001,CE/TUV/UL Certificate

Poly-Crystalline Module, Poly 156 cell,72pcs .

Power range 260Wp-300Wp , 350w solar panel

Quality and Safety

Rigorous quality control meeting the highest international standards

High-transmissivity low-iron tempered glass, strong aluminium frame

Using UV-resistant silicon

ISO 9001:2008 and ISO 14001:2004

IEC61215, IEC61730, Safety Class Inconformity to CE

Features

Aesthetic appearance with excellent efficiency based on innovative

photovoltaic technologies

Strong frame, passing mechanical load test of 5400Pa, instead of the normal

2400Pa,to withstand heavier snow load and higher wind-pressure

Warranties

10 years limited product warranty

15 years at 90% of the minimal rated power output

25 years at 80% of the minimal rated power output

Electrical Characteristics,Mechanical Characteristics and Temperature Coefficient Features

ITEM NO.:	Poly 156*156 cell ,72pcs . Power range from 260Wp-300Wp
Maximum Power(W)	260	265	270	275	280	285	290	295	300
Optimum Power Voltage(Vmp)	34.7	34.9	35.0	35.2	35.3	35.4	35.6	35.8	36.0
Optimum Operatige Current(Imp)	7.50	7.60	7.72	7.82	7.94	8.05	8.15	8.24	8.33
Open Circuit Voltage(Voc)	43.5	43.6	43.7	43.8	44.0	44.1	44.3	44.5	44.8
Short Circuit Current(Isc)	8.21	8.31	8.40	8.48	8.58	8.67	8.75	8.82	8.90
Solar Cell:	156*156 Poly
Number of Cell(pcs)	6*10
Brand Name of Solar Cells	JA Cell, Bluesun Cell
Size of Module(mm)	196099250
Caple & Connector Type	Pass the TUV Certificate
Frame(Material Corners,etc.)	Aluminium-alloy
Backing (Brand Type)	TPT
Cell Efficiency for 300W(%)	15.6%
Weight Per Piece(KG)	26.35KG
FF (%)	70-76%
Junction Box Type	Pass the TUV Certificate
Tolerance Wattage(e.g.+/-5%)	±3%, or 0-3%
Front Glass Thikness(mm)	3.2
Temperature Coefficients of Isc(%)	+0.04
Temperature Coefficients of Voc(%)	-0.38
Temperature Coefficients of Pm(%)	-0.47
Temperature Coefficients of Im(%)	+0.04
Temperature Coefficients of Vm(%)	-0.38
Temperature Range	-40°C to +85°C
Surface Maximum Load Capacity	2400Pa
Allowable Hail Load	23m/s ,7.53g
Bypass Diode Rating(A)	12
Warranty	90% of 10 years,80% of 25 years.
Standard Test Conditions	AM1.5 1000W/ 25 +/-2°C
Packing	carton or pallet
1*20'	20 Pallets / 250pcs
1*40'STD	20 Pallets / 500pcs
