Help CenterHot Selling-230W Poly Crystalline Solar Panel, PV Module, TUV, IEC, CE, CEC Certified
Related Products
230W Poly crystalline solar panel
1. A grade solar cells.
2. TUV/IEC/CE/CEC
3. Fast shipment
4. 25 years guarantee

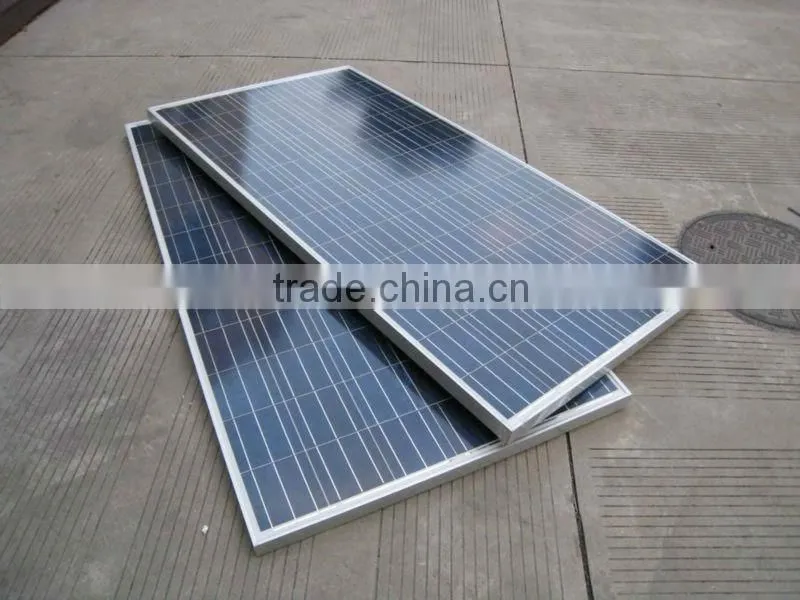

Hot selling-230W Poly crystalline solar panel, PV module, TUV, IEC, CE, CEC certified
FEATURES
`Long Service Life
`High Efficiency Solar Cells
`Special Aluminum Frame Design
`High Transmission, Low Iron Tempered Glass
`Advanced Cell Encapsulation
APPLICATIONS
`Solar power stations
`Rural electrification, Small home power systems
`Power supply for traffic, security, gas industry
`12V and 24V battery charging system
`Other industrial and commercial applications
Module |
|
Type (60 series) |
||||||||||
Encapsulation |
|
Glass/EVA/Cells/EVA/TPT |
||||||||||
Parameters |
|
SNM-P200 |
SNM-P205 |
SNM-P210 |
SNM-P215 |
SNM-P220 |
SNM-P225 |
SNM-P230 |
SNM-P235 |
SNM-P240 |
SNM-P245 |
|
Max power |
Pm(W) |
200W |
205W |
210W |
215W |
220W |
225W |
230W |
235W |
240W |
245W |
|
Tolerance |
|
+/-3% |
||||||||||
Open circuit voltage |
Voc(V) |
35.3 |
35.3 |
36.0 |
36.0 |
36.0 |
36.6 |
36.6 |
37.2 |
37.2 |
37.2 |
|
Short circuit current |
Isc(A) |
7.58 |
7.77 |
7.82 |
8.01 |
8.19 |
8.24 |
8.34 |
8.46 |
8.65 |
8.79 |
|
Max. power voltage |
Vmp(V) |
28.5 |
28.5 |
29 |
29 |
29 |
29.5 |
29.5 |
30 |
30 |
30 |
|
Max. power current |
Imp(A) |
7.02 |
7.19 |
7.24 |
7.41 |
7.59 |
7.63 |
7.79 |
7.83 |
8.0 |
8.2 |
|
Practical Module Efficiency |
Ηc(%) |
12.2% |
12.5% |
12.8% |
13.1% |
13.4% |
13.7% |
14.1% |
14.3% |
14.7% |
15% |
|
Dimensions |
(L*W*H) |
1650×992×45mm |
||||||||||
Net Weight |
(kg) |
19.5 |
||||||||||
Max. system voltage |
(V) |
1000V DC |
||||||||||
Operate Temp. Scope |
|
-40/+85'C |
||||||||||
Resistance |
|
227g steel ball fall down from 1m height and 120m/s wind |
||||||||||
Warranty |
|
Pm is no less 90% in 10 years and no less 80% in 25 years |
||||||||||
STC |
|
(Standard Test Condition: 1000W/m2, AM1.5, and 25'C) |
||||||||||
