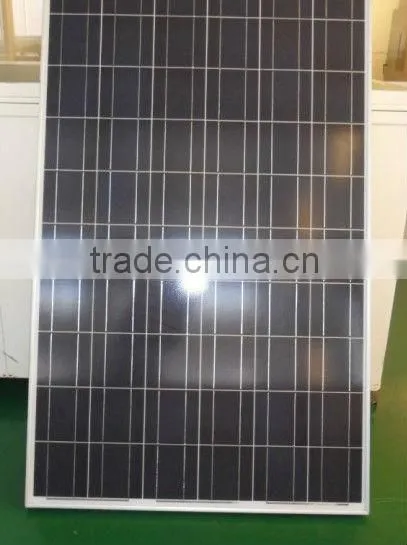

Wholesale Price Mono 260w Solar Panel
US$ 0.4 - 0.6
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
OEM
Model Number:
230W Poly
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
OEM
Model Number
230W Poly
Material
Polycrystalline Silicon
Size
1650 992 45
Number of Cells
60
Max. Power
245
High quality/good price/quick delivery
| SPECIFICATION | Mono 156*156 type | ||||
| Pmax | 245Wp | 250 Wp | 255 Wp | 290Wp | 295Wp |
| Vmp(V) | 30.2 V | 30..7 V | 30.7V | 36.2V | 36.7V |
| Imp(A) | 8.11A | 8.15 A | 8.31 A | 8.01A | 8.07A |
| Voc(V) | 37.4 V | 38.1 V | 38.1 V | 44.9V | 45.4V |
| Isc(A) | 8.76 A | 8.80 A | 8.97 A | 8.65A | 8.68A |
| Operating temp | -40ºC to +85ºC | -40ºC to +85ºC | |||
| Maximum system voltage |
1000 V DC | 1000 V DC | |||
| Maximum fusing rating |
15 A | 15 A | |||
| Power tolerance | 0~5W, ±3% | 0~5W, ±3% | |||
| Number of diodes | 3 | 3 | |||
| No of cell | 60 (6*10) | 72 (6*12) | |||
| Dimension(mm) | 1650*992*50mm | 1952*990*50mm | |||
| Weight | 19.5kgs | 23kgs | |||
| Front & Rear wind load test |
2400Pa | 2400Pa | |||
| Front snow load test | 5400 Pa | 5400 Pa | |||
| Output Cables | 4mm2, 900mm | 4mm2, 900mm | |||
| Nominal Operating Cell Temp |
45ºC ± 3ºC | 45ºC ± 3ºC | |||
| Temp. coefficient of Pm | -0.45 %/ºC | -0.45%/ºC | |||
| Temp. coefficient of Voc | -0.34 %/ºC | -0.34%/ºC | |||
| Temp. coefficient of Isc | 0.045 %/ºC | 0.054%/ºC | |||
Send Inquiry to This Supplier
Business Type
Manufacturer, Trading Company
Year Established
2012
Factory Size
3,000-5,000 square meters
Total Employees
11 - 50 People
