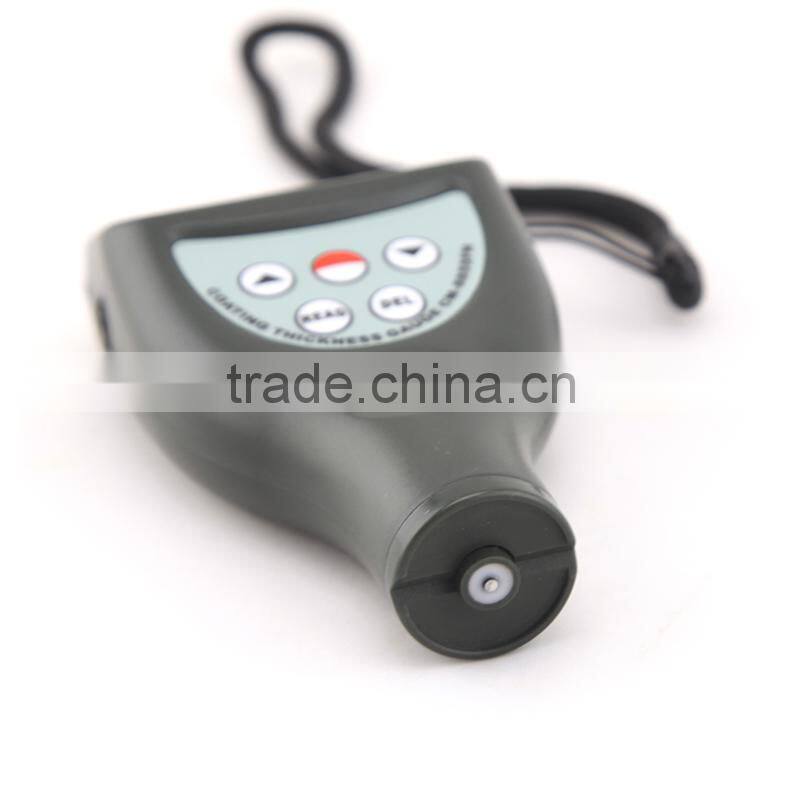

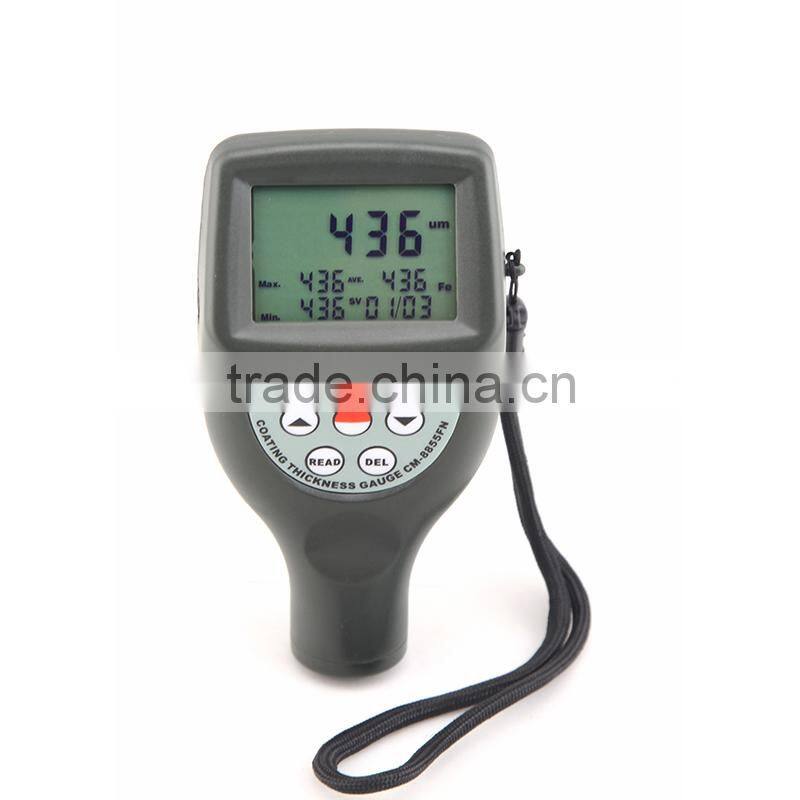

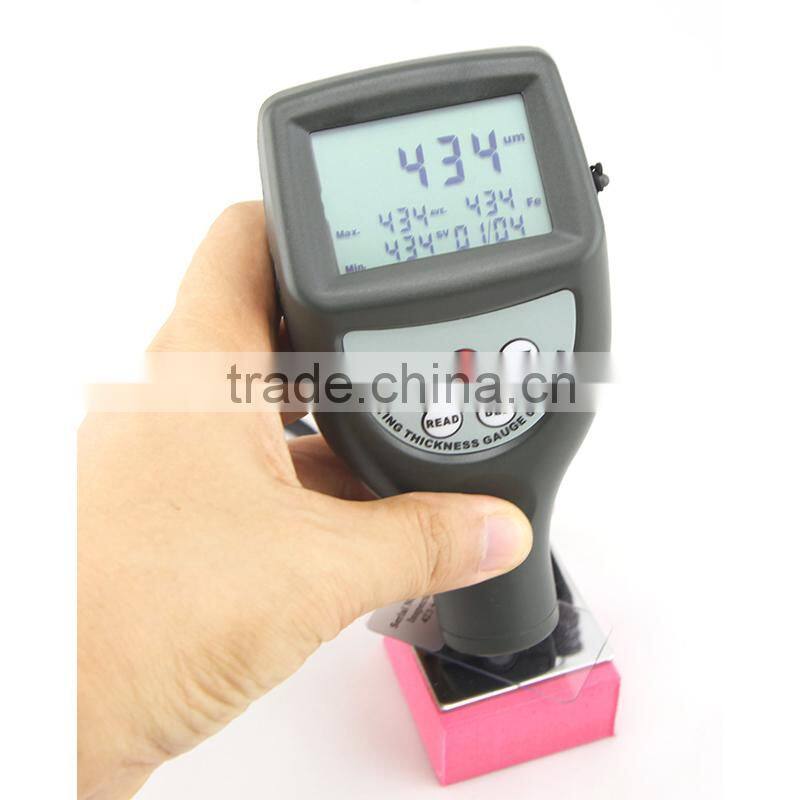

CM8855 Statistical Type Digital Portable Chrome Coating thickness gauge meter
The F probes measure the thickness of non-magnetic materials (e.g. paint, plastic, porcelain enamel, copper, zinc, aluminium, chrome etc.) on magnetic materials (e.g. iron, nickle etc.) . often used to measure the thickness of galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminium tile, some alloy tile, paper etc.
The N probes measure the thickness of non-magnetic coatings on non-magnetic metals. It is used on anodizing, varnish, paint, enamel, plastic coatings, powder, etc. applied to aluminum, brass, non-magnetic stainless steel, etc.
* Can store the new data in 99 groups.
* Two measurement mode: Single and Continuous(Notice:Continuous mode is convenient to measure the
coating thickness of curved objects and tiny objects.)
* Metric/imperial system selectable.
* Operation process have buzzing reminder,while no buzzing in continuous mode.
* Use “USB data output” and “RS-232 data output” to connect with PC.
users can get continuous, good repetitive and precise measurements.
| Operating Principle | Magnetic Induction / Eddy Current (F / NF) |
| Measuring Range | 0~1250 um / 0~50 mil |
| Resolution | 0.1 um / 1 um |
| Min. Radius Workpiece | F Type: convex 1.5 mm / concave 25 mm NF Type: convex 3 mm / concave 50 mm |
| Min. Measuring Area | 6 mm |
| Min. Sample Thickness | 0.3 mm |
| Accuracy | ± 1~3%n or ± 2.5 um |
| Auto Power Off | |
| Metric / Imperial | Convertible |
| Battery Indicator | Low Battery Indicator |
| Operating Conditions | Temp. 0~40 °C, Humidity: 10~90 %RH |

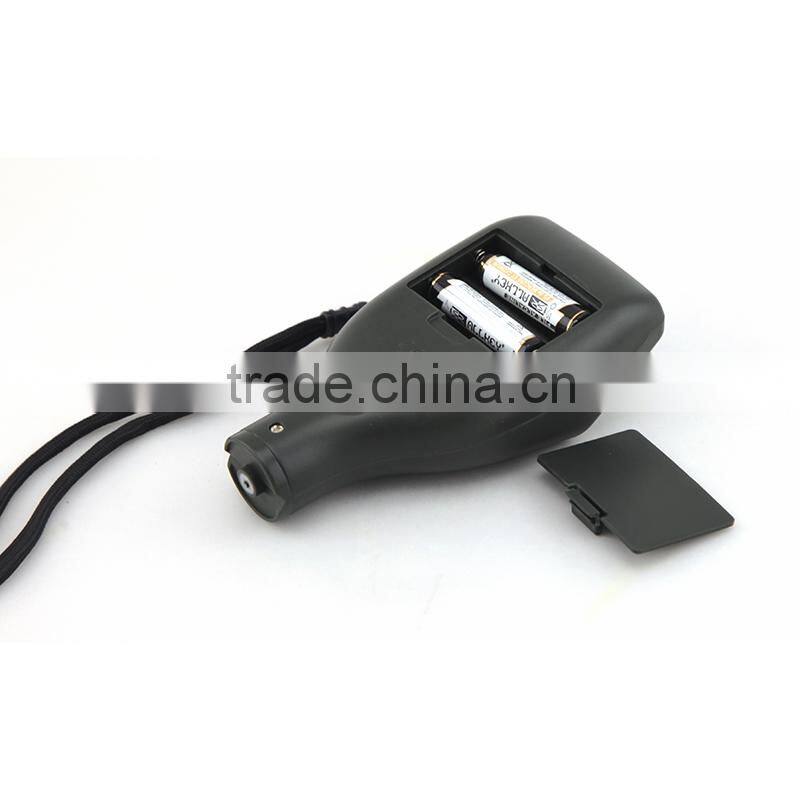

| Power Supply | 2 x 1.5 V AAA (UM-4) Battery |
| Dimensions | 126 x 65 x 35 mm |
| Weight | 81 g (Not Including Batteries) |

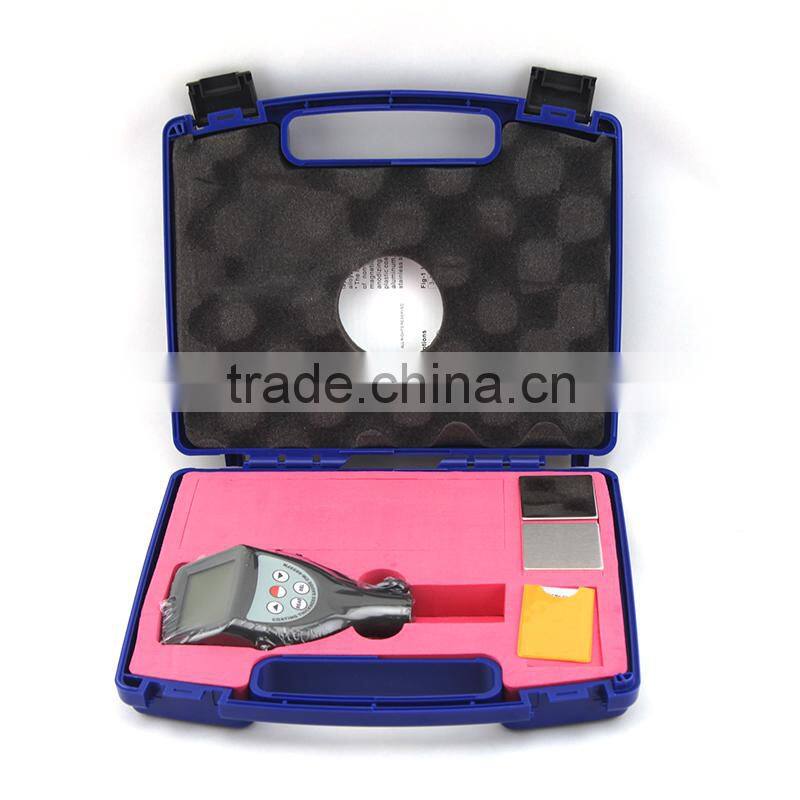

Standard Accessories:
1. Main Unit

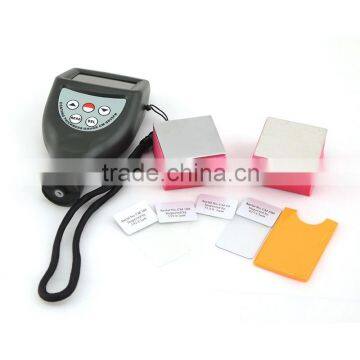

2. Calibration Base Set (F Type / NF Type) CTG-BS
3. Calibration Foils CTG-CF (1 set, 4 pieces)
4. Carrying Case
5. Operation Manual
Optional accessories:
2. Bluetooth data out put with software
