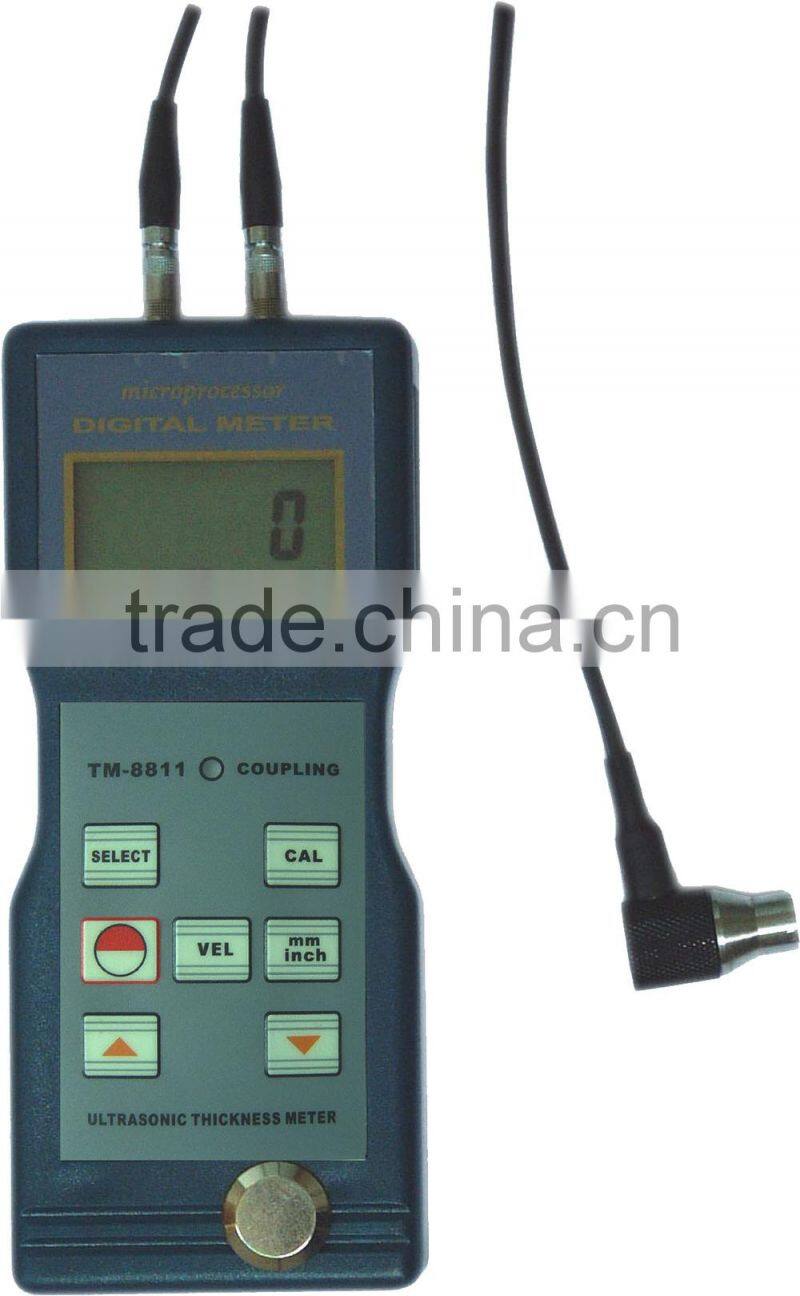

High-precision and Large Testing Range portable Digital Ultrasonic Thickness Gauge
Applications:
Used for measuring thickness and corrosion of pressure vessels,chemical equipment,boilers,oil orage tanks,etc.in industries of petroleum, shipbuilding,power station,and machine manufacturing
Features:
* Wide Measuring Range and high resolution. With high power emission and broad band receiving sensitivity, the gauge can match probes of different frequencies. That makes it easy to measure the rough surface, even cast iron. It is widely used in almost all kinds of industries.
* Applicable to measure the thickness of many materials, e. g. Steel, Cast iron, Aluminum, Red copper, Brass, Zinc, Quartz glass, Polyethylene, PVC, Gray cast iron, Nodular cast iron.
* Used the exclusive Micro-computer LSI circuit and crystal time base to offer high accuracy measurement & fast measuring time.
* Automatic power off to conserve power.
* Digital display gives exact reading with no guessing or errors.
Details:
| Display | 4 Digit, 10 mm LCD |
| Operating Principle | Ultrasonic |
| Measuring Range (metric / Imperial) | 1.2~200 mm / 0.05~8 inch |
| Battery Indication | Low Battery Indication |
| Sound Velocity | 1000~9000 m/s |
| Lower Limit Steel Pipes | Determined By Transducer |
| Calibration Block | Included |
| Resolution | 0.1 mm |
| Accuracy | ± (0.5%n + 0.2) |
| Operating Conditions | Temperature: 0~40 °C, Humidity: < 85 %RH |
| Power Supply | 4 x 1.5 V AA (UM-3) Battery |
| Dimensions | 160 x 68 x 32 mm (5.5 x 2.8 x 1.2 inch) |
| Weight | About 208 g (Not Including Batteries) |
standard Accessories:
1. Main Unit
2. 5M Φ8 Standard Sensor
3. Coupling Agent
4. Carrying Case
5. Operating Manual
Optional Accessories:
1. 6M Φ6 mm thin Material Probe: Measuring range (steel): 1.0~50.0 mm Operating temperature: -10~60°C
2. 5M Φ 12 mm High Temperature Probe: Measuring range (steel): 1.0~225.0 mm (normal temperature) Measuring range (steel) : 4.0~100.0 mm (high temperature) Operating temperature: -10~300°C
3. Curved Surface Probe
Standard Accessories:
1. Main Unit
2. 5M Diameter 8 Standard Sensor
3. Coupling Agent
4. Carrying Case
5. Operating Manual
Optional Accessories:
1. 6M Diameter 6 mm thin Material Probe : Measuring range (steel): 1.0~50.0 mm
Operating temperature: -10~60°C
2. 5M Diameter 12 mm High Temperature Probe: Measuring range (steel): 1.0~225.0 mm (normal temperature)
Measuring range (steel) : 4.0~100.0 mm (high temperature)
Operating temperature: -10~300°C
3. Curved Surface Probe
4. USB, RS-232C data cable with software
5. Bluetooth data output with software
