Home > Instruments & Meters > Electronic Instrument > Clamp Meter > 4000 Count 1000A Resistance Frequency Digital Auto Range Clamp Meters

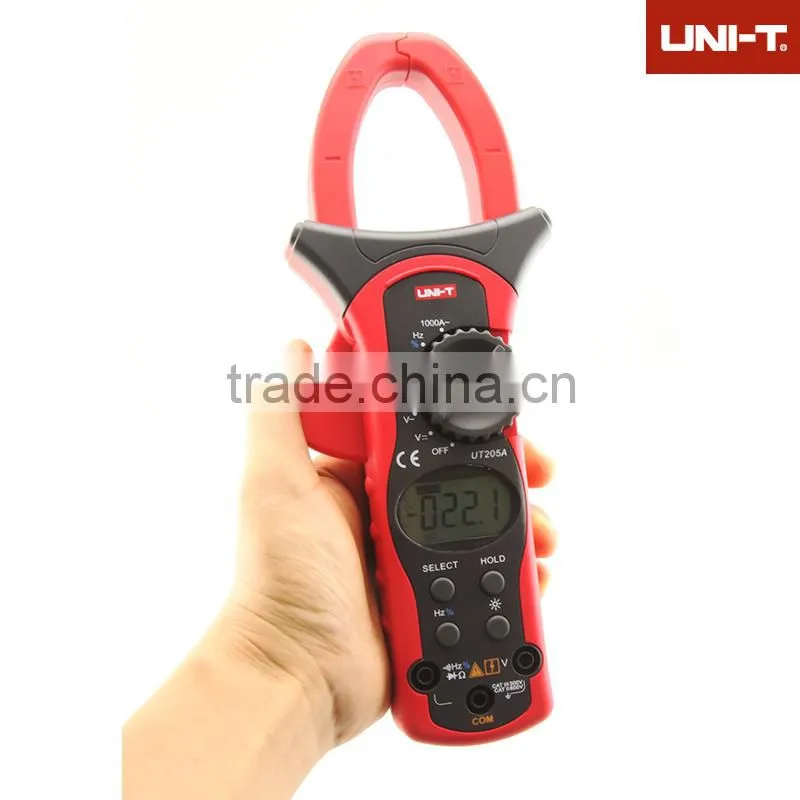

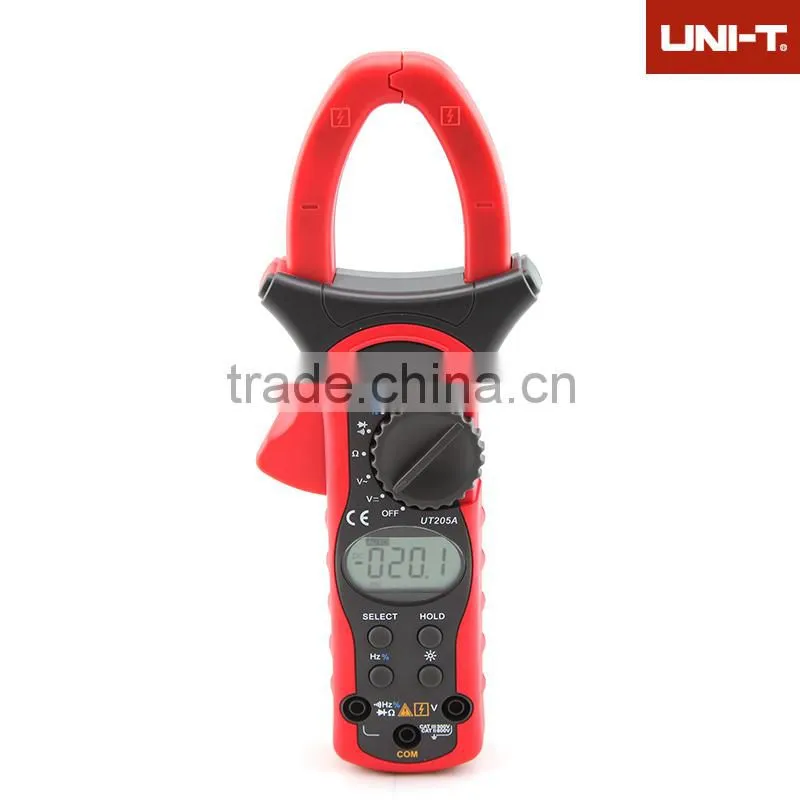

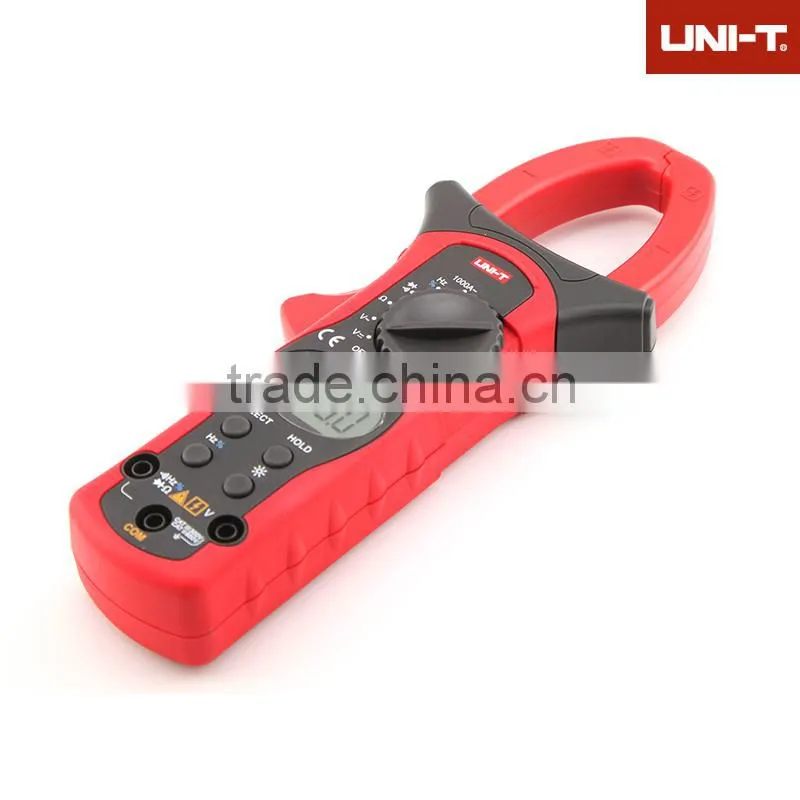

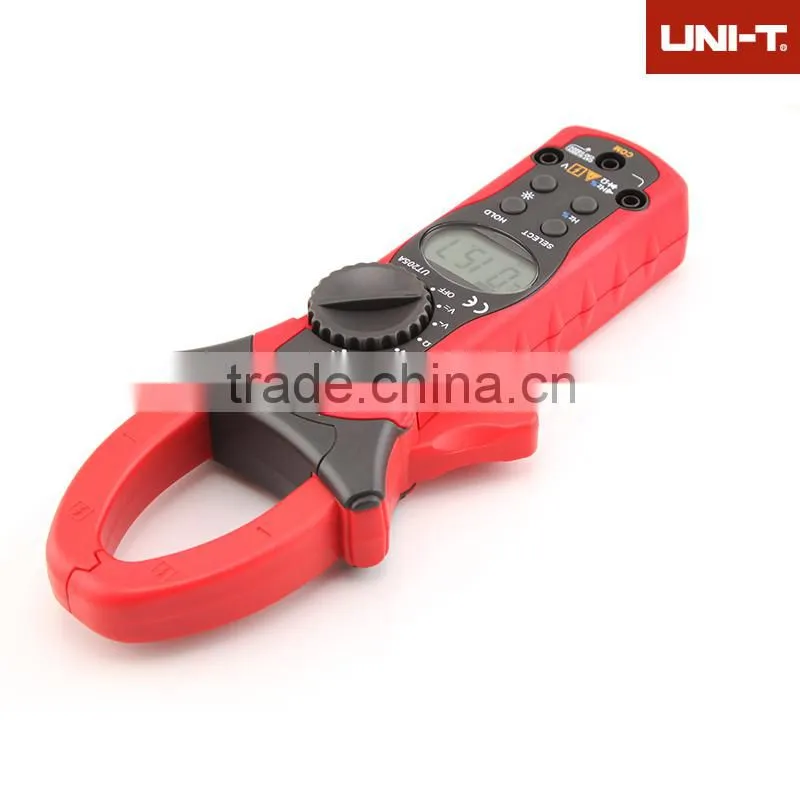

4000 Count 1000A Resistance Frequency Digital Auto Range Clamp Meters
US$ 25.5 - 30
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Model Number:
UT205A
Display Type:
Digital Only
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
True RMS 4000 Counts Resistance Frequency Temperature Large Lcd Display Mini Clamp Meter UT209AUS$ 62.07 - 66MOQ: 1 Set -
Low Price Digital Clamp Multimeter Ut203US$ 25.5 - 29MOQ: 1 Set
-
Unit Auto Range Clamp Meter With CE CertificateUS$ 12.31 - 14MOQ: 1 Set
-
Uni-t 1000A Electrical Instrument Clamp Resistance Meter UT208AUS$ 55.39 - 64MOQ: 1 Set
-
Clamp Multimeter,high Voltage Clamp Meter With Temperature MeasurementUS$ 27.25 - 31MOQ: 1 Set
Place of Origin
Guangdong, China
Model Number
UT205A
Display Type
Digital Only
Measuring Current Range
AC:400A/1000A
Measuring Voltage Range
AC:4V/40V/400V/600V,DC:400mV/4V/40V/400V/600V
Measuring Resistance Range
400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ
Dimensions
236mm X 97mm X40 mm
Weight
0.95kg
Specifications
| Specifications | Range | Best Accuracy |
| Model | UT205A | |
| AC Current (A) | 400A/1000A | ±(1.5%+5) |
| AC Voltage (V) | 4V/40V/400V/600V | ±(1.2%+5) |
| DC Voltage (V) | 400mV/4V/40V/400V/600V | ±(0.8%+1) |
| Resistance (Ω) | 400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ | ±(1%+2) |
| Frequency (Hz) | 10Hz~10MHz | ±(0.1%+3) |
Features
| Display Count | 4000 | |
| Auto Range | √ | |
| Jaw Capacity | 40mm | |
| Duty Cycle | 0.1%~99.9% | √ |
| Diode | √ | |
| Auto Power Off | √ | |
| Continuity Buzzer | √ | |
| Low Battery Indication | √ | |
| Data Hold | √ | |
| LCD Backlight | √ | |
| Full Icon Display | √ | |
| Input Impedance for DCV | Around 10MΩ | √ |
Packaging & Shipping
| General Characteristic | ||
| Power | 9V Battery(6F22) | |
| LCD Size | 37mm X 18 mm | |
| Product Color | Red and Grey | |
| Product Net Weight | 350g | |
| Product Size | 236mm X 97mm X40 mm | |

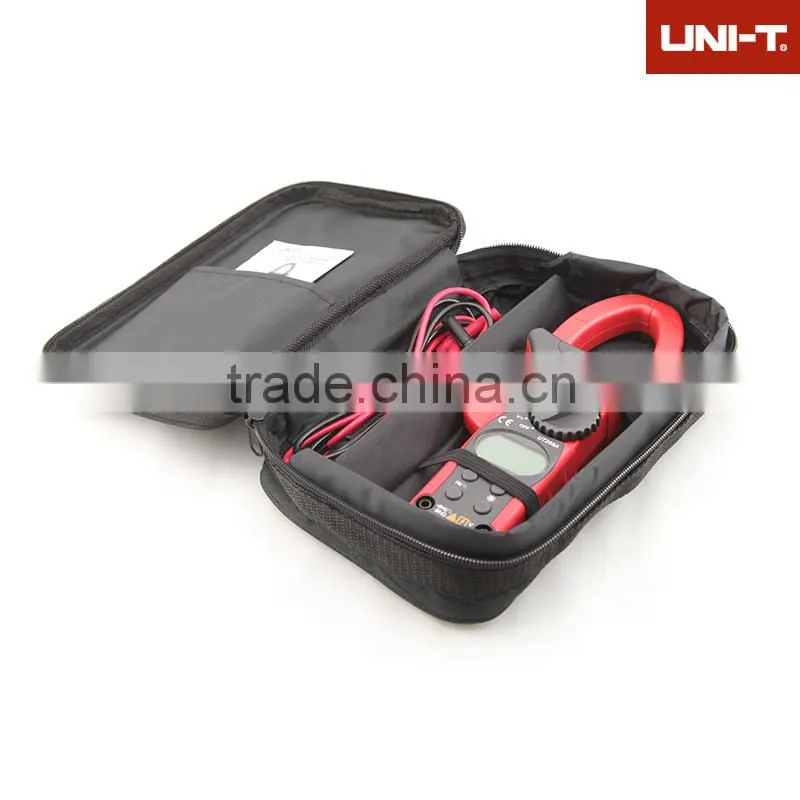

| Standard Accessories | Battery, Test Lead,Carrying Bag | |

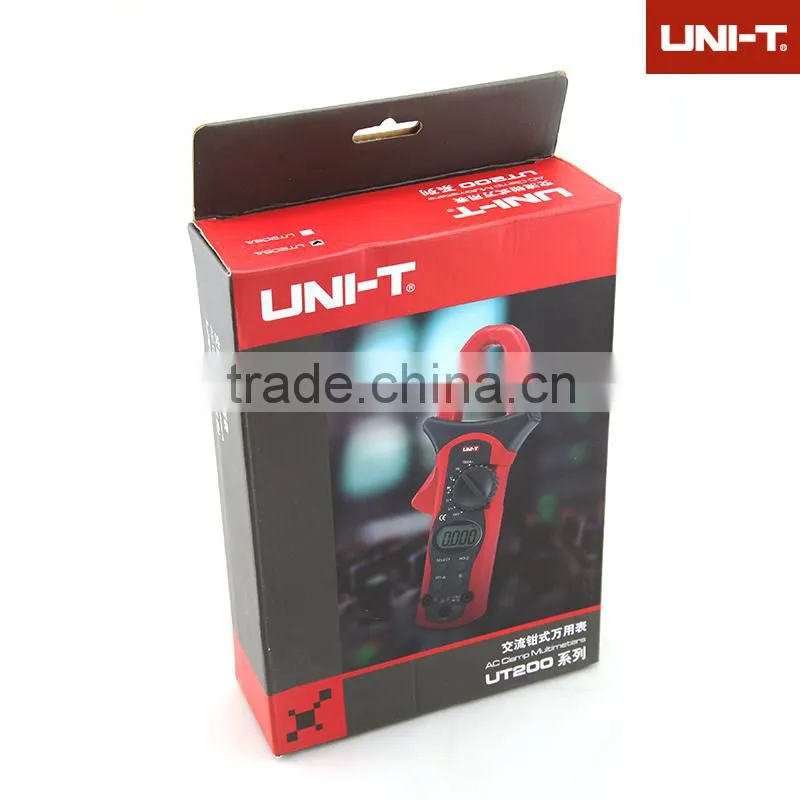

| Standard Individual Packing | Gift Box, English Manual | |
| Standard Quantity Per Carton | 20 PCs | |
| Standard Carton Measurement | 530mm X 360mm X 385mm (0.073 CBM Per Standard Carton) | |
| Standard Carton Gross Weight | 17Kg | |
