Clamp Multimeter,high Voltage Clamp Meter With Temperature Measurement
US$ 27.25 - 31
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Model Number:
UT204A
Display Type:
Digital Only
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
UNI-T UT206A Digital Clamp Meter Multimeter AC Amp AC/DC Volt Ohm Hz Temp MeterUS$ 28.49 - 33MOQ: 1 Set -
China Precision Digital Lcr Meter VC9805A+US$ 15 - 18MOQ: 1 Set
-
VC70C 3 5/6 6000 Counts Digital Multimeter VictorUS$ 25.12 - 29MOQ: 1 Set
-
True RMS 41 Stick Analog Bar Clamp Power Meter Clamp On MultimeterUS$ 75.61 - 82MOQ: 1 Set
-
Ac Clamp Meter Digital Avometer Clamp MeterUS$ 36.93 - 42MOQ: 1 Set
Place of Origin
Guangdong, China
Model Number
UT204A
Display Type
Digital Only
Measuring Current Range
40A/600A
Measuring Voltage Range
400mV/4V/40V/400V/600V
Measuring Resistance Range
400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ
Measuring Capacitance Range
40nF/400nF/4μF/40μF/200μF
Operating Temperature
-40 to 1000C
Dimensions
208mm X 76mm X30 mm
Weight
0.95kg
Specifications
Clamp Multimeter,high voltage clamp meter with Temperature measurement
| Specifications | Range | Best Accuracy |
| Model | UT204A | |
| AC Current (A) | 40A/600A | ±(2.5%+5) |
| DC Current (A) | 40A/600A | ±(2.5%+5) |
| AC Voltage (V) | 4V/40V/400V/600V | ±(1%+5) |
| DC Voltage (V) | 400mV/4V/40V/400V/600V | ±(0.8%+1) |
| Resistance (Ω) | 400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ | ±(1%+2) |
| Capacitance (F) | 4nF/40nF/400nF/4μF/40μF/100μF | ±(4%+3) |
| Frequency (Hz) | 10Hz ~ 10MHz | ±(0.5%+3) |
| 10MHz | Reference only | |
| Temperature (°C) | -40 °C ~ 1000°C | ±(2.5%+3) |
| Features | ||
| Display Count | 3999 | |
| Auto Range | √ | |
| Jaw Capacity | 28mm | |
| Diode | √ | |
| Auto Power Off | √ | |
| Continuity Buzzer | √ | |
| Low Battery Indication | √ | |
| Data Hold | √ | |
| MAX Mode | √ | |
| Setup | √ | |
| Input Impedance for DCV | Around 10MΩ | √ |
Detailed Images

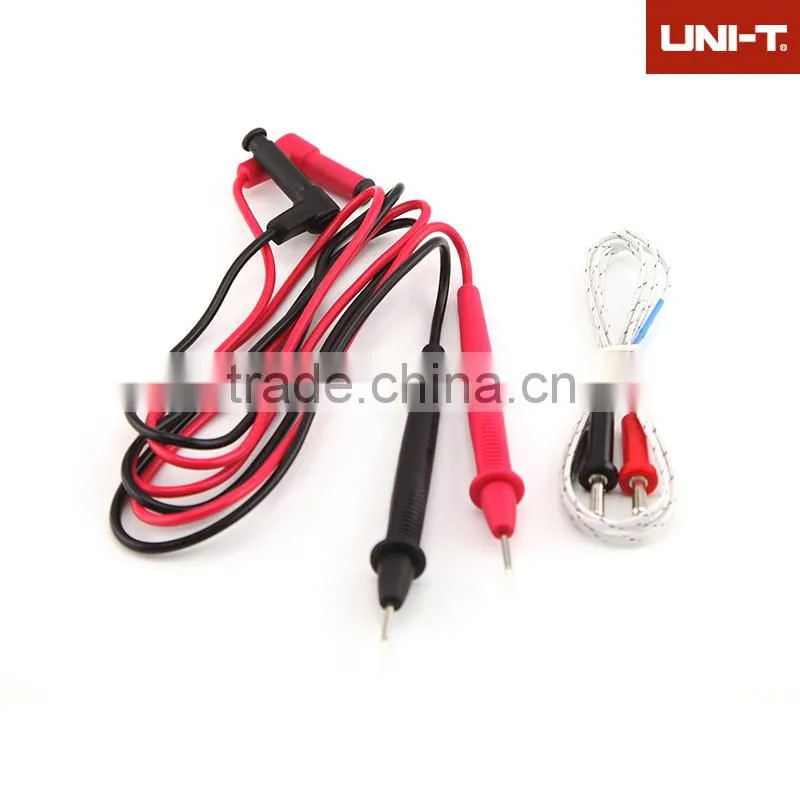

Test Leads :
Packaging & Shipping
| Power | 9V Battery(6F22) | |
| LCD Size | 35.6X 18mm | |
| Product Color | Red and Grey | |
| Product Net Weight | 260g | |
| Product Size | 208mm X 76mm X30 mm | |
| Standard Accessories | Battery, Test Lead,Carrying Bag,Point Contact Temperature Probe | |
| Standard Individual Packing | Gift Box, English Manual | |
| Standard Quantity Per Carton | 40 PCs | |
| Standard Carton Measurement | 540mm X 495mm X 335mm (0.09 CBM Per Standard Carton) | |
| Standard Carton Gross Weight | 25Kg | |
