Home > Instruments & Meters > Electronic Instrument > Clamp Meter > True RMS 4000 Counts Resistance Frequency Temperature Large Lcd Display Mini Clamp Meter UT209A

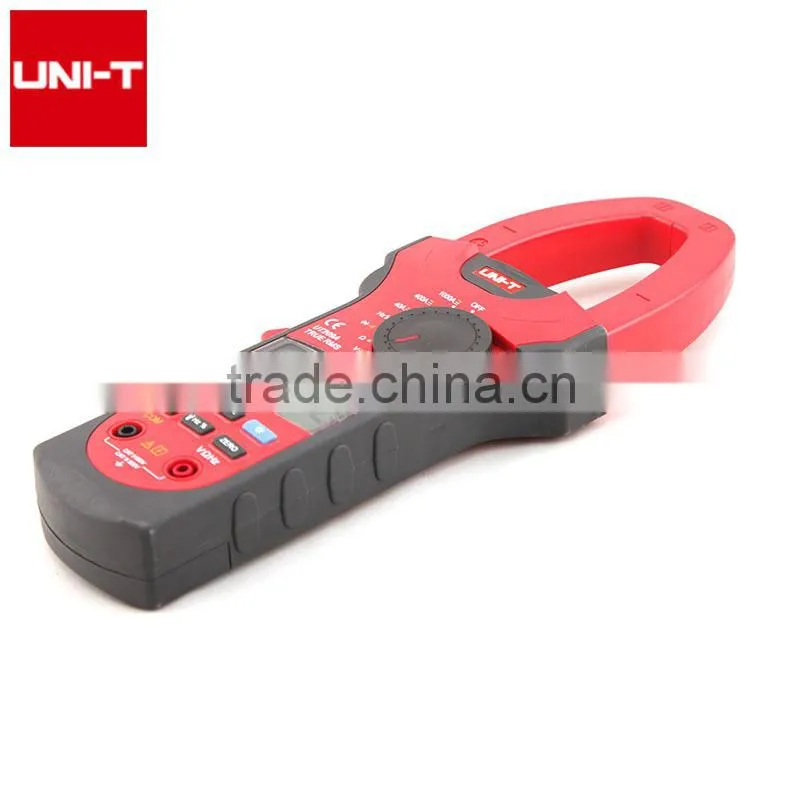

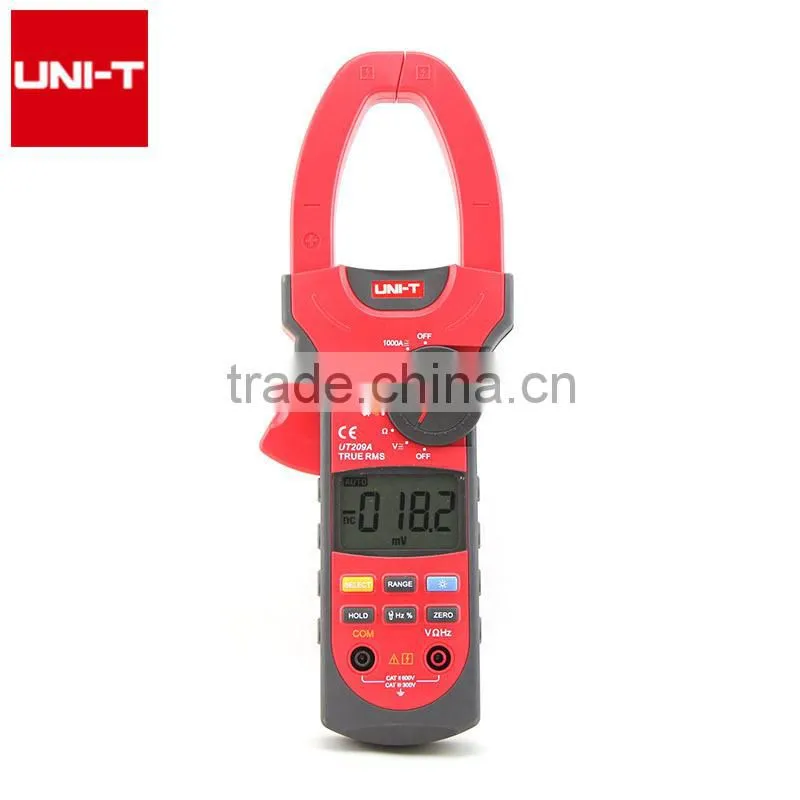

True RMS 4000 Counts Resistance Frequency Temperature Large Lcd Display Mini Clamp Meter UT209A
US$ 62.07 - 66
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Model Number:
UT209A
Display Type:
Digital Only
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Low Price Digital Clamp Multimeter Ut203US$ 25.5 - 29MOQ: 1 Set -
Unit Auto Range Clamp Meter With CE CertificateUS$ 12.31 - 14MOQ: 1 Set
-
Uni-t 1000A Electrical Instrument Clamp Resistance Meter UT208AUS$ 55.39 - 64MOQ: 1 Set
-
Clamp Multimeter,high Voltage Clamp Meter With Temperature MeasurementUS$ 27.25 - 31MOQ: 1 Set
-
UNI-T UT206A Digital Clamp Meter Multimeter AC Amp AC/DC Volt Ohm Hz Temp MeterUS$ 28.49 - 33MOQ: 1 Set
Place of Origin
Guangdong, China
Model Number
UT209A
Display Type
Digital Only
Measuring Current Range
40A/400A/1000A
Measuring Voltage Range
400mV/4V/40V/400V/1000V
Measuring Resistance Range
400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ
Measuring Capacitance Range
4nF/40nF/400nF/4μF/40μF/100μF
Dimensions
286mm X 105mm X45mm
Specifications
True RMS 4000 Counts Resistance Frequency Temperature Large Lcd Display mini clamp meter UT209A
Range |
Accuracy |
|
ACA |
40A/400A/1000A |
±(2%+2) |
DCA |
40A/400A/1000A |
±(1.5%+5) |
ACV |
400mV/4V/40V/400V/750V |
±(1.2%+3) |
DCV |
400mV/4V/40V/400V/1000V |
±(0.8%+1) |
Resistance |
400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ |
±(1%+2) |
Frequency |
10Hz/100Hz/1KHz/10KHz/1MHz/10MHz |
±(0.1%+3) |
Features
True RMS |
ACA/ ACV |
√ |
Max Reading |
|
3999 |
LCD Size |
47mm ×30mm |
|
Auto Range |
|
√ |
Jaw Size |
|
55mm |
Duty Cycle |
0.1%-99.9% |
|
LCD Backlight |
√ |
|
Diode Test |
|
√ |
Continuity Beep |
|
√ |
Low Battery Indication |
|
√ |
Data Hold |
|
√ |
Auto off |
|
√ |
Input Impedance |
≥10MΩ |

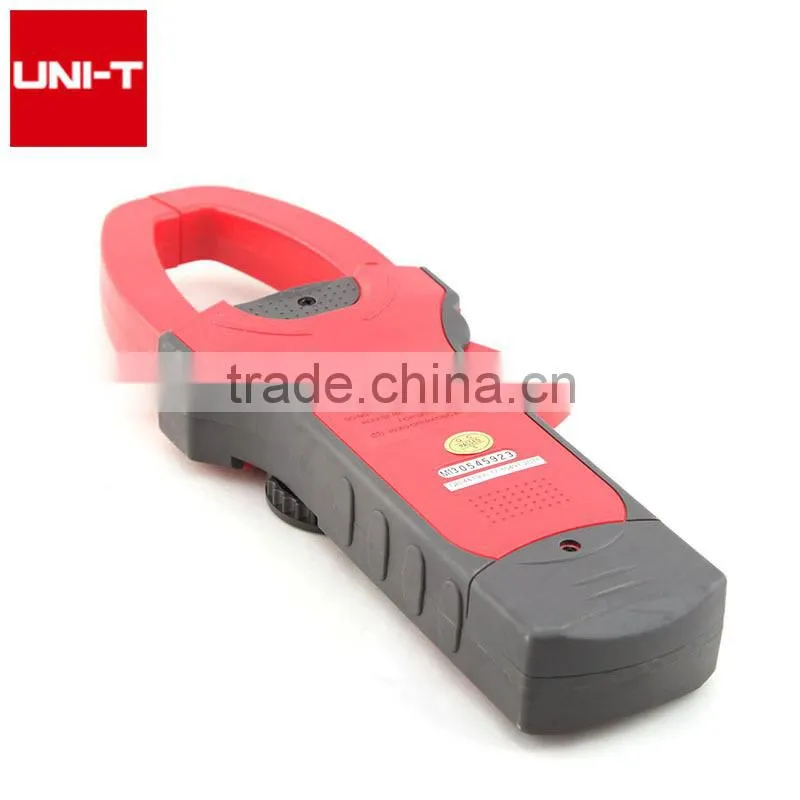

Side View : streamline design

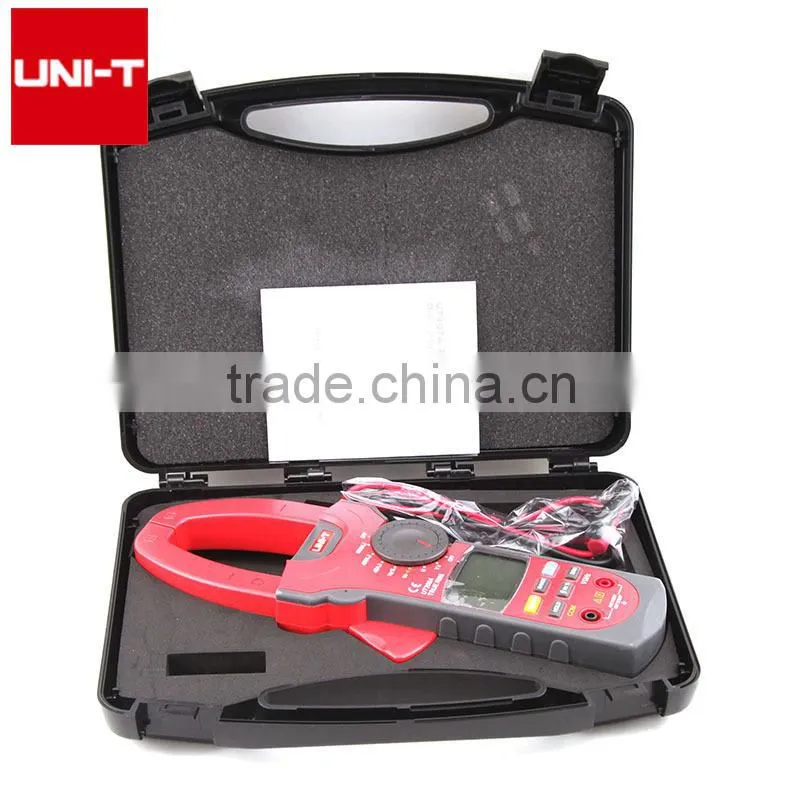

Packaging & Shipping
Power Supply |
1x 9V 6F22 |
Product Weight |
533g |
Product Size |
286mm X 105mm X45 mm |

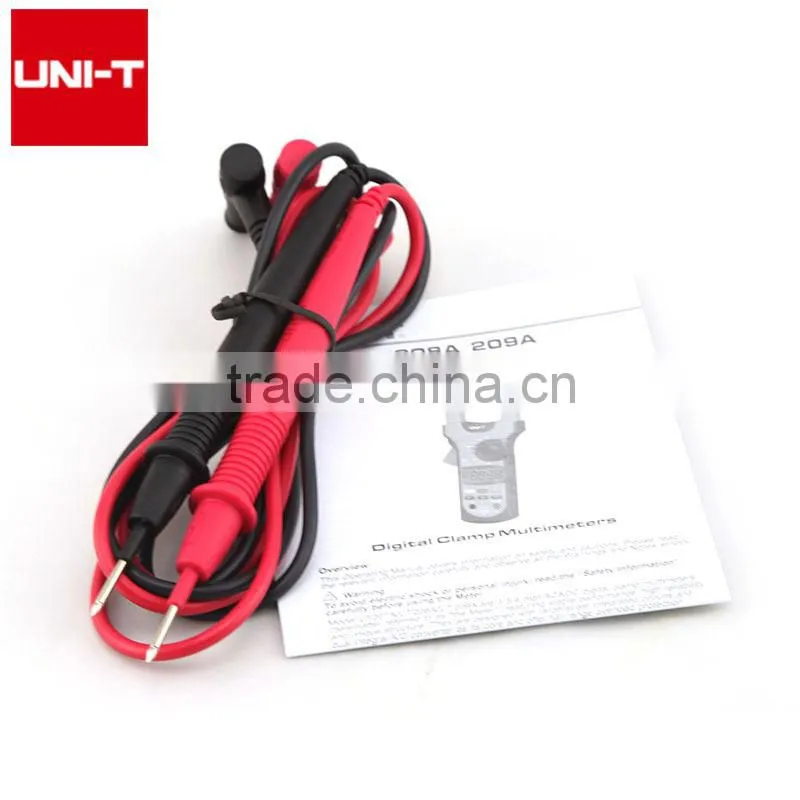

Accessories |
Test Leads |
