China Precision Digital Lcr Meter VC9805A+

China Precision Digital Lcr Meter VC9805A+ thumbnail-1
China Precision Digital Lcr Meter VC9805A+ thumbnail-2
China Precision Digital Lcr Meter VC9805A+ thumbnail-3
China Precision Digital Lcr Meter VC9805A+ photo-1
China Precision Digital Lcr Meter VC9805A+ photo-2
China Precision Digital Lcr Meter VC9805A+ photo-3
US$ 15 - 18 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Model Number:
VC9805A+
Measuring Current Range:
2mA/20mA/200mA/20A
Contact Supplier Request Quote Chat Now
Shenzhen Starmeter Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Model Number VC9805A+
Measuring Current Range 2mA/20mA/200mA/20A
Measuring Voltage Range 200mV/2V/20V/200V 1000V
Measuring Resistance Range 200Ω 2kΩ/20kΩ/200kΩ/2MΩ 20MΩ 200MΩ
Measuring Capacitance Range 20nF/200nF/2uF/20uF/2000uF
Measuring Inductance Range 2mH/20mH/200mH/2H/20H
Operating Temperature -40℃~1000℃
Dimensions 190*93.5*37mm

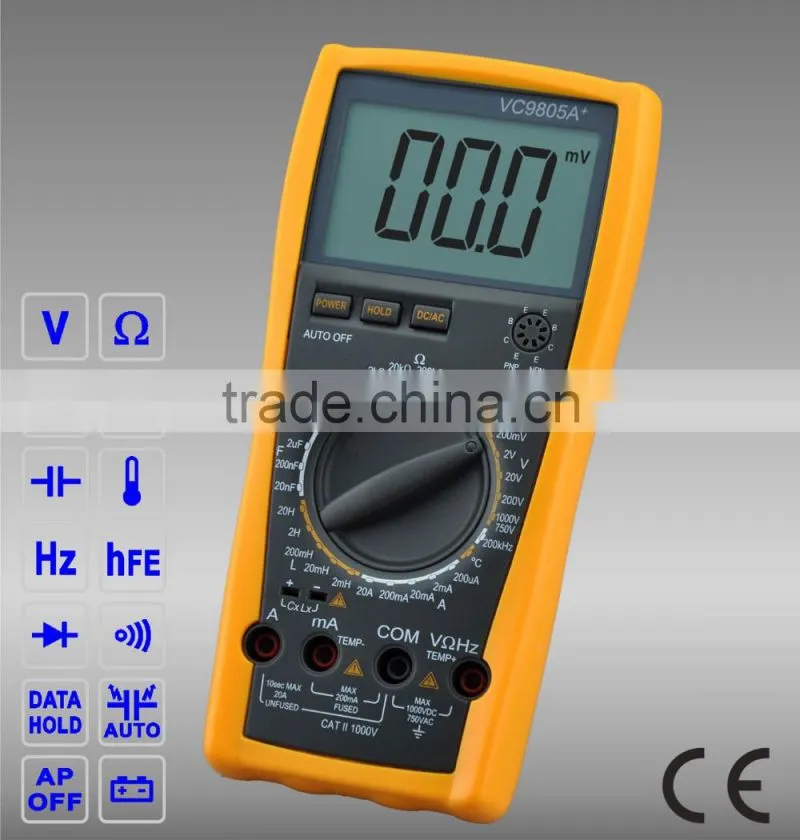

  china precision digital lcr meter VC9805A+

Features

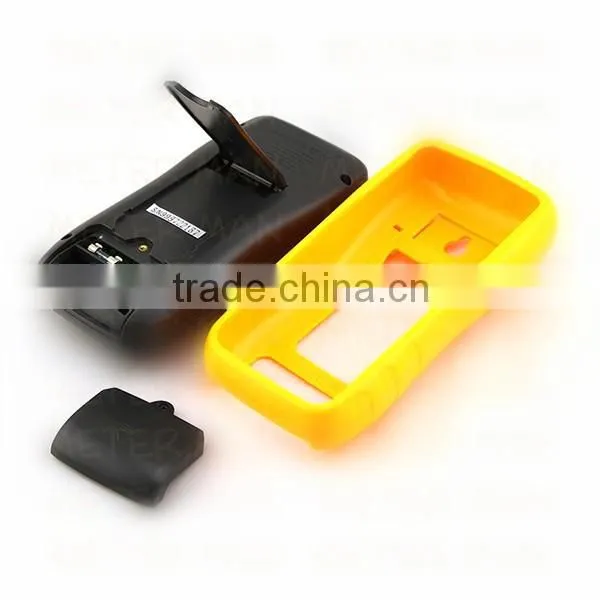

 1.New type holster, streamline design;

2.Large LCD makes the reading clearly;
3.Strong antimagnetic and anti-jamming performance;

4.Auto power off within 30 minutes;
5.Full function protection, anti high voltage circuit design(voltage dependent resistor:1300V);

6.Unit symbol display, very easy to reading;

7.self discharge when capacitance measuring;

8.Max. measuring range of capacitance:2000uF.

china precision digital lcr meter VC9805A+

Specifications

Basic function

Range

Basic accuracy

DCV

200mV/2V/20V/200V/1000V

±(0.5%+3)

ACV

200mV/2V/20V/200V/750V

±(0.8%+5)

DCA

200uA/2mA/20mA/200mA/20A

±(0.8%+3)

ACA

200uA/2mA/20mA/200mA/20A

±(1.0%+5)

Resistace

200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ

±(0.8%+4)

Inductance

2mH/20mH/200mH/2H/20H

±(2.5%+20)

Capacitance

20nF/200nF/2uF/20uF/2000uF

±(2.5%+20)

Frequency

200kHz

±(3.0%+15)

centigrade temperature

-40℃~1000℃

±(0.8%+4)



Special function

VC9805A+

Diode test

√

hFE test

√

Continuity alarming

Approx. less than 30Ω±10Ω

Low battery indication

Approx less than 7.5V

Data hold

√

Auto power off

Approx. 30minutes

Function protect

√

Anti-shock protect

√

Input impendence

10MΩ

Sampling rate

3times/s

AC frequency response

40-400Hz

Operation way

Manual range

Max. display

1999

LCD size

65×41mm

Power

9V (6F22)

Power dissipation

Quiescent current approx. 6mA

 china precision digital lcr meter VC9805A+china precision digital lcr meter VC9805A+

Packaging & Shipping

General characteristic

Color

Body: dark grey, holster: orange (pantone No.:1495U)

Weight

290g(including battery)

Meter size

185×93×35mm

Standard accessory

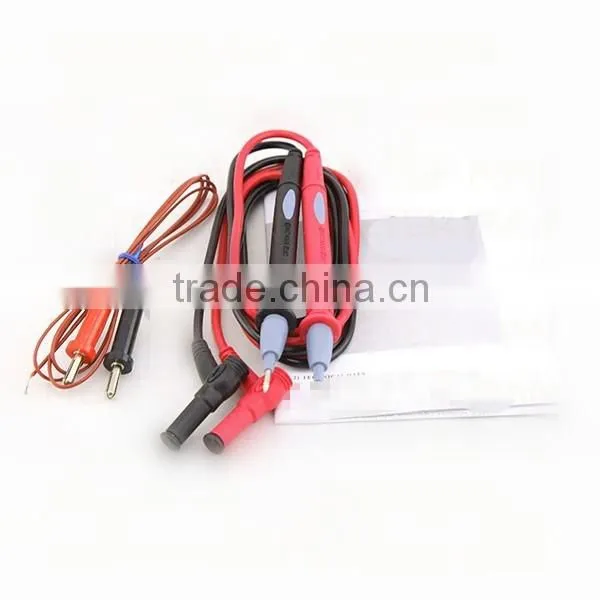

Test leads, bettery,manual,TP01 temperature probe

Packing

Gift box

Standard packing per carton

30pcs

Carton size

45.5×32.5×43.5cm

Standard G.W per carton

17kg
