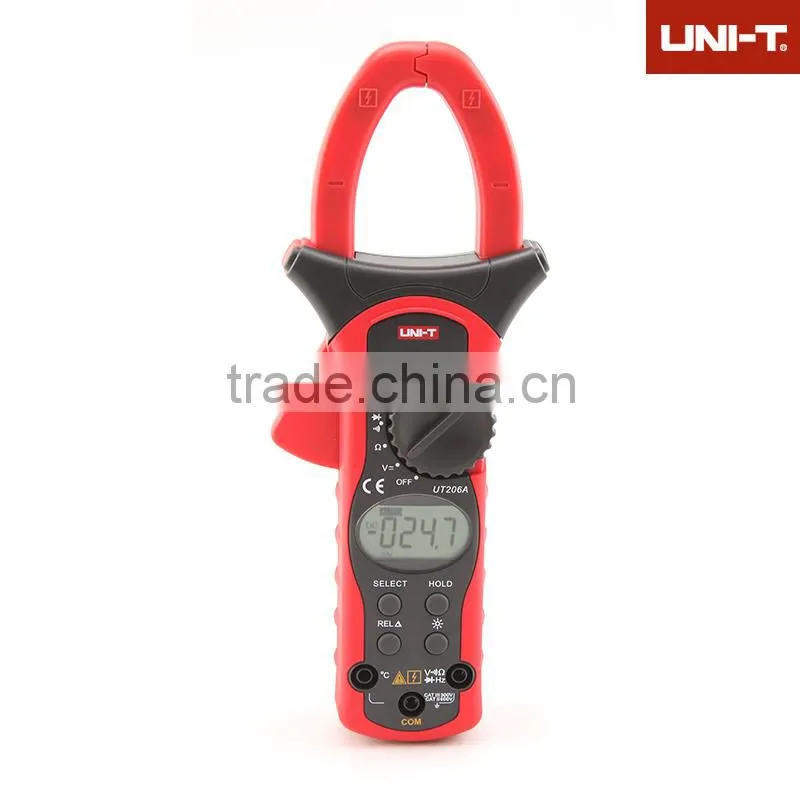

Auto Range UNI-T UT206A Digital Clamp Meter Multimeter AC Amp AC/DC Volt Ohm Hz Temp Meter
Range |
Best Accuracy |
|
AC Current (A) |
400A/1000A |
±(1.5%+5) |
AC Voltage (V) |
4V/40V/400V/600V |
±(1.2%+5) |
DC Voltage (V) |
400mV/4V/40V/400V/600V |
±(0.8%+1) |
Resistance (Ω) |
400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ |
±(1%+2) |
Frequency (Hz) |
10Hz~10MHz |
±(0.1%+3) |
Temperature (C) |
-40 -1000C |
±(2%+8) |

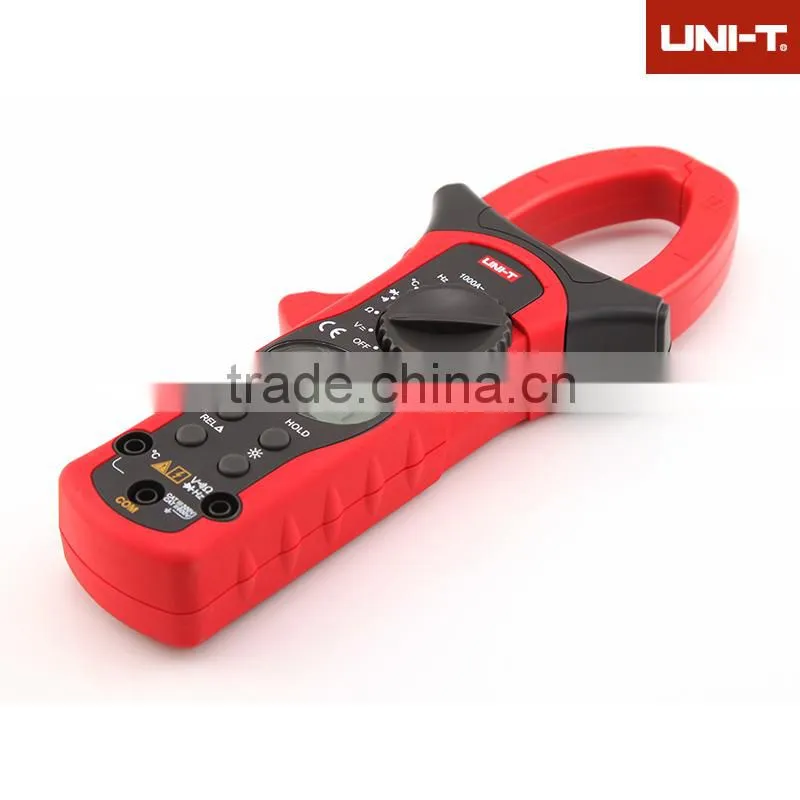

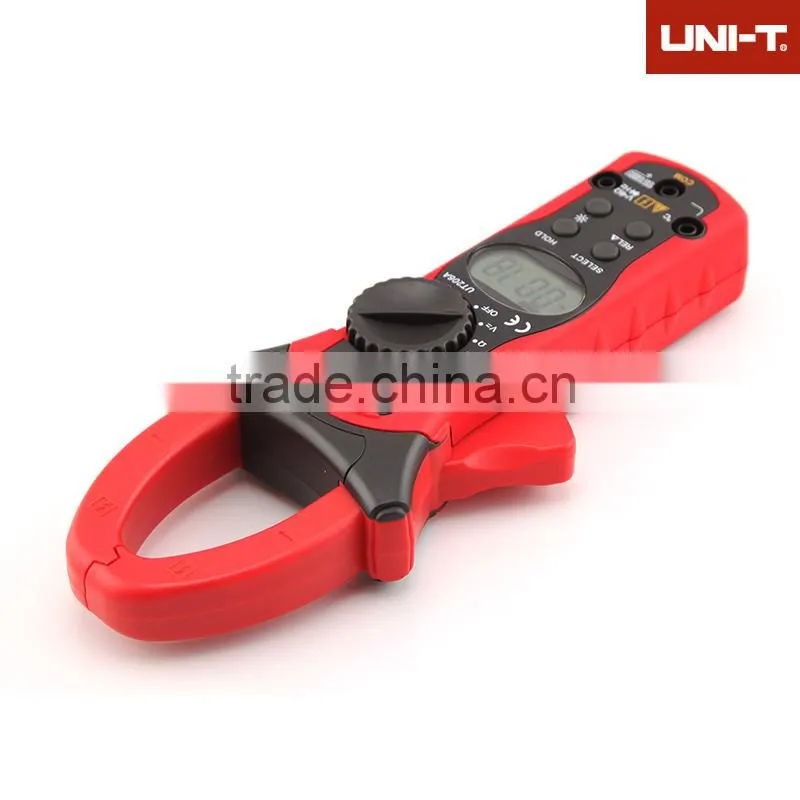

Side View : streamline design
Display Count |
|
4000 |
LCD Size |
37mm X 18 mm |
|
Auto Range |
|
√ |
Jaw Capacity |
|
40mm |
Diode |
|
√ |
Auto Power Off |
|
√ |
Continuity Buzzer |
|
√ |
Low Battery Indication |
|
√ |
Data Hold |
|
√ |
Relative Mode |
|
√ |
LCD Backlight |
|
√ |
Full Icon Display |
|
√ |
Input Impedance for DCV |
Around 10MΩ |
√ |

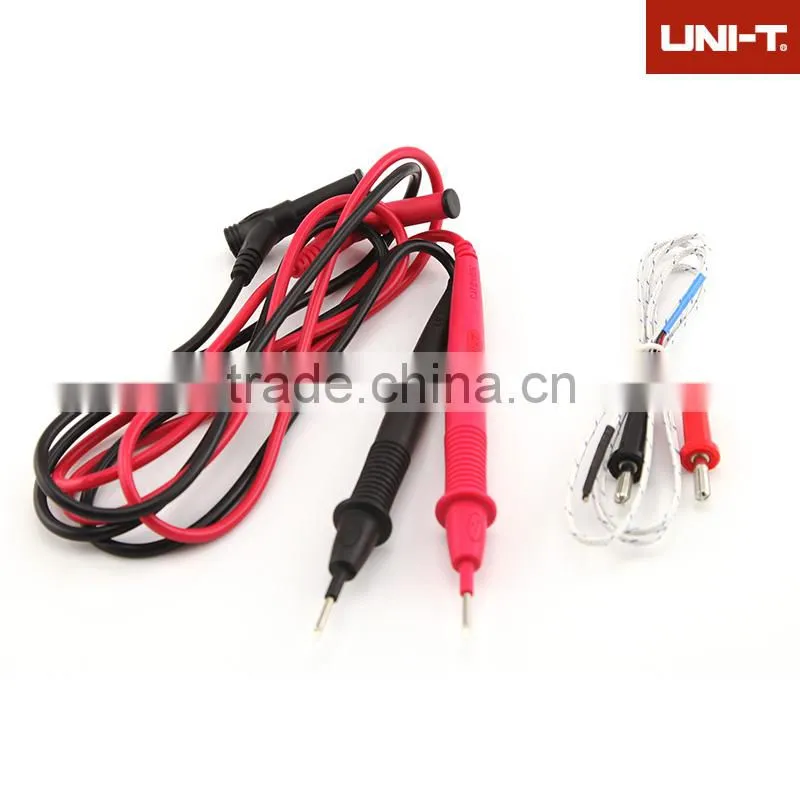

Test Leads :

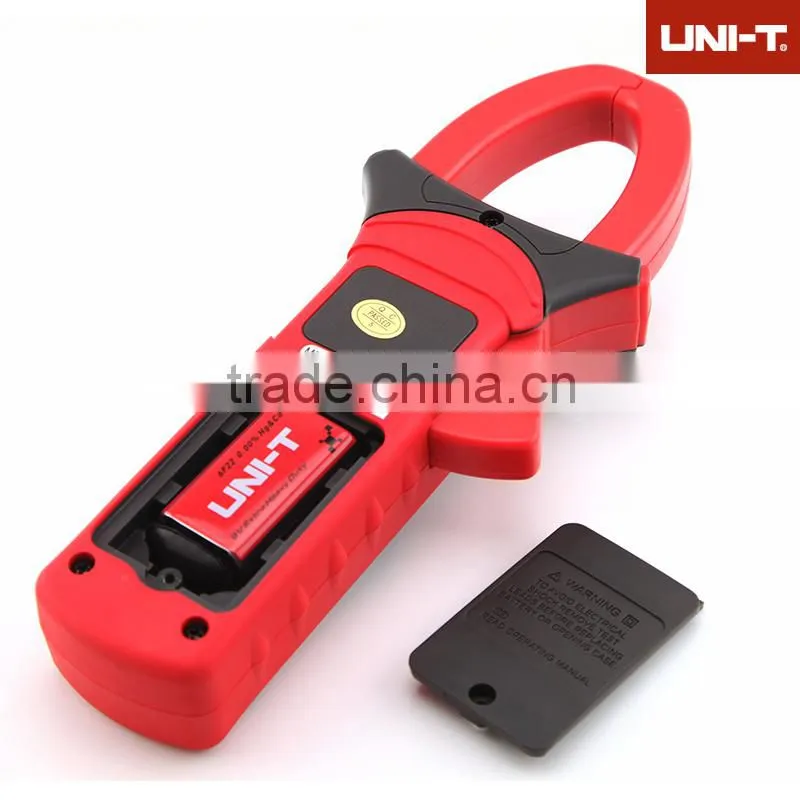

Back View :
Power |
9V Battery(6F22) |
Product Net Weight |
350g |
Product Size |
236mm X 97mm X40 mm |
Standard Accessories |

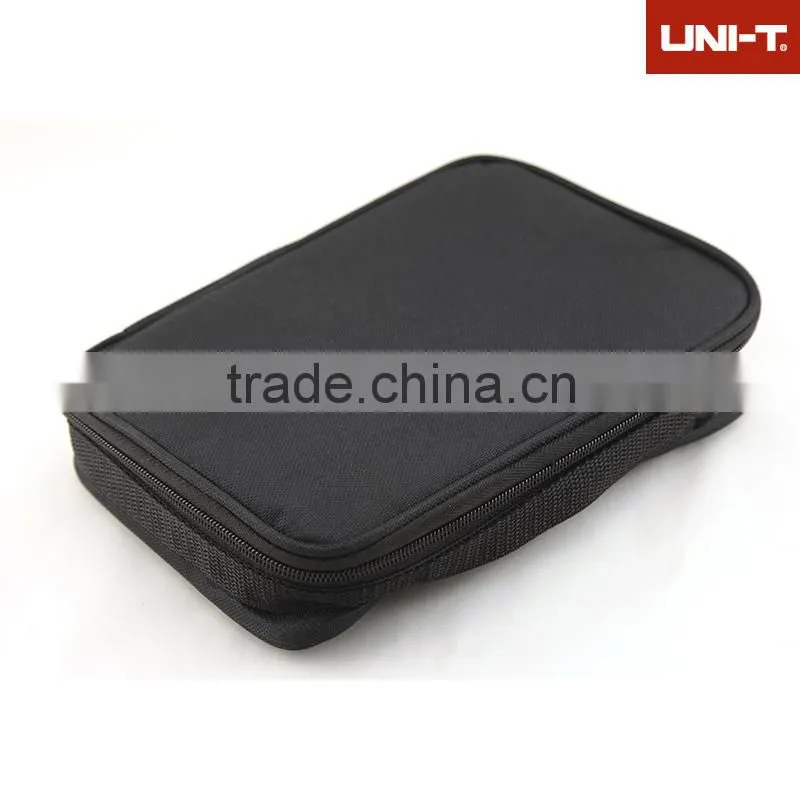

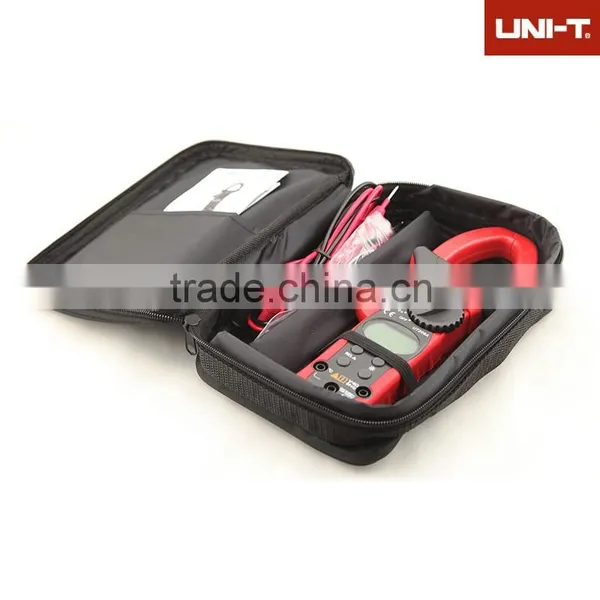

Test Lead, Carrying Bag,Point Contact Temperature Probe, Manual |
NO Battery will be send due to safety reason .
