4x2 Diesel Compression Loader Garbage Truck
7cbm 4x2 Diesel Compression loader Garbage Truck
l New style body :D1695B new style body, beautiful and elegant, luxurious interiors,comfortable driving and riding
l Special chassis: engineering vehicle chassis, strong bearing,strong lifting capability and stable performance
l Environmental friendly: U type sealing, high sealing performance avoid the secondary pollution
l Convenient: Garbage collection is convenient, using strong power manipulator automatic turning trash, biggest turning quality 120kg, can hang a 240L party for garbage barrel, convenient for loading
l The whole carriage all adopted rust electroplate process, the corrosion degree is greatly imporved.
l Emission standard is National IV.

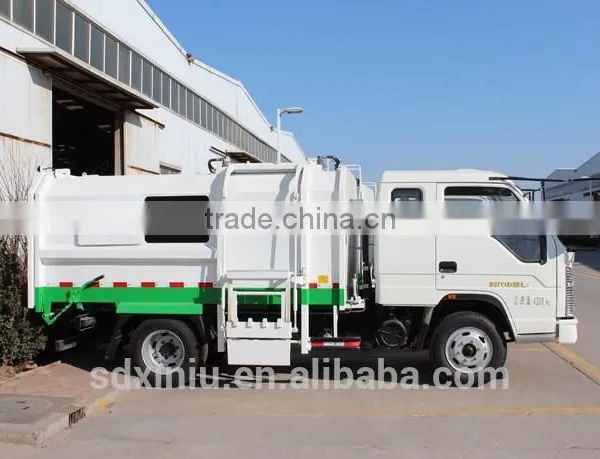

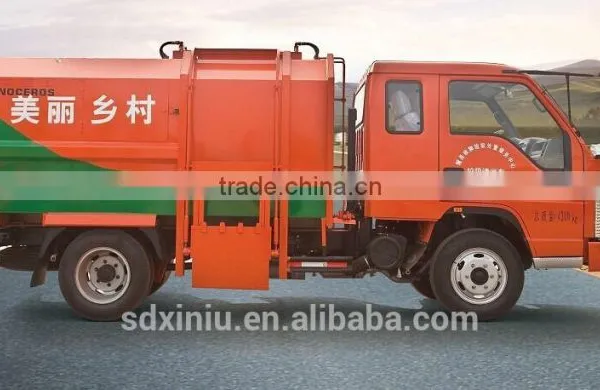

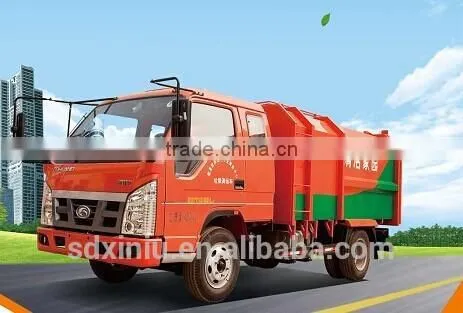

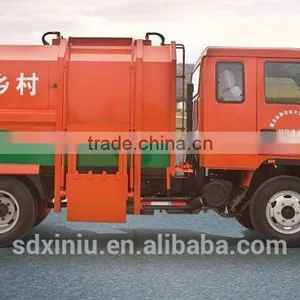

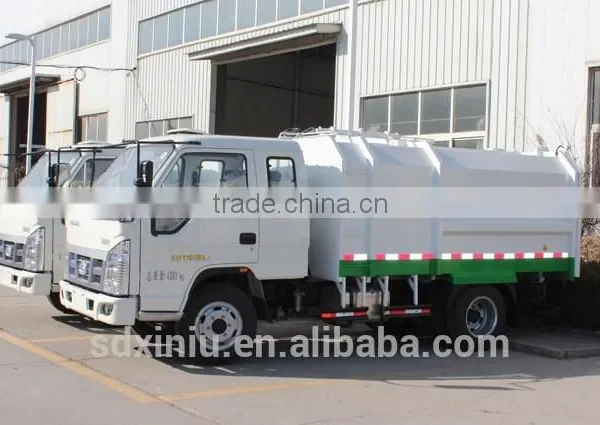

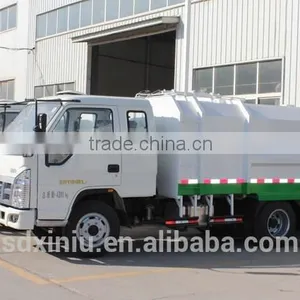

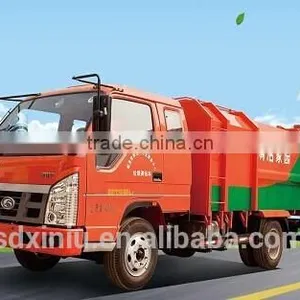

PHOTOS:
This is in a small

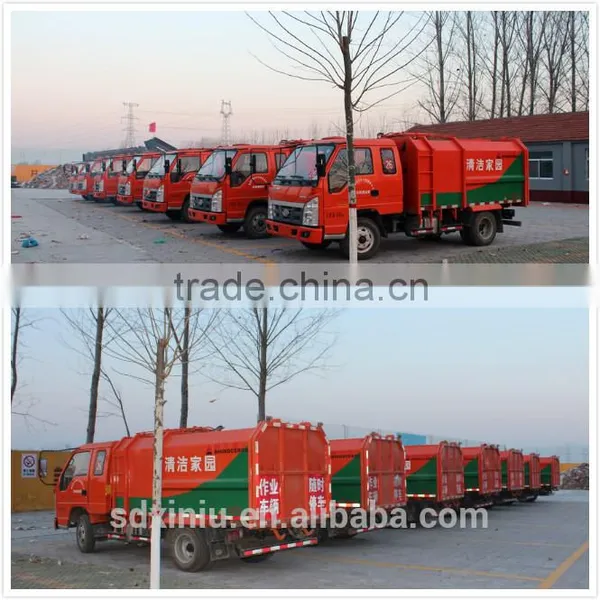

Early in the morning, 9 units XINIU garbage trucks filed out of the station, and start their cleaning work. ...
See how the users say:
"XINIU garbage truck is really good! performance is stable while
Here is the Rhinoceros factory:
Detail parameters of the 7cbm garbage truck:
Vehicle Bulletin |
BJ5045222-3 |
Chassis configuration |
BJ3045D9PB5-2 |
||
Overall dimension |
5550*2030*2420 mm |
Driver |
4*2 |
||
Container Volume |
7 cbm |
Tires |
6.50-16 |
||
Container dimension |
3280*1860*1535 mm |
Side door dimension |
460*650 mm |
||
Back door dimension |
420*510 mm |
Wheelbase |
3000 mm |
||
Way of garbage unloading |
Backside unloading |
Loading way |
Back door |
||
Other configurations |
Spare tires, heater,MP3, pre-device, optional A/C |
Steering gear |
Recirculating ball type steering |
||
|
|
|
|
||
Chassis configuration | |||||
Engine |
QUANCHAI 4A-68c40 |
Total weight/Curb weight |
4830/2970 kg |
||
Power(PS) |
50/68 |
Number of spring plate |
1043/5.833 |
||
Displacement(L) |
1.809/3200 |
Others |
Power steering, Single spare tire, Coil spring |
||
Vehicle |
D1695B |
|
|||
Gearbox |
5T20 |
|
|||
Chassis(mm) |
170*60*6+5/740 |
|
|
||
|
|
|
|
||
Upper part configuration | |||||
Oil cylinder model |
3TG1-E100 |
Double oil cylinder |
|
||
Rated pressure of hydraulic system (Mpa) |
16 |
Manipulator Max.flip mass |
120 kg |
||
Max. Dumping angle |
45° |
Way of garbage collection |
Hang drum/bulk type |
||
Volume of hydraulic oil tank(L) |
20 |
Volume of mechanical hand-held bucket (L) |
120-140 |
||
CERTIFICATION:
Waranty time:
1 year, or 2000 working hours. All the time technique service. we send to you spare parts together with the machine.
Payment term:
T/T, 30% in advance, 70% before shipment. L/T at sight.
