10.4inch Industrial Grade Open Frame Monitor for the Kiosk

Shenzhen Yan Teng Technology Co., Ltd.
10.4inch Industrial Grade Open Frame Monitor for the Kiosk thumbnail-1
10.4inch Industrial Grade Open Frame Monitor for the Kiosk thumbnail-2
10.4inch Industrial Grade Open Frame Monitor for the Kiosk photo-1
10.4inch Industrial Grade Open Frame Monitor for the Kiosk photo-2
US$ 100 - 300 MOQ: 1 Unit
Key Specifications
Get Latest Price
Products Status:
Stock
Application:
Other, Kiosk
Screen Size:
Other, 10.4inch
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Application Other, Kiosk
Screen Size Other, 10.4inch
Response Time 5ms
Brightness Other, 230cd/m
Interface Type D-Sub, DVI, HDMI
Contrast Ratio 600:1
Resolution Other, 800X600
Widescreen No
Panel Type TFT
Brand Name OEM
Model Number OP-104
Place of Origin Guangdong, China



6.5inch/7inch/8inch/10.4inch/12.1inch/15inch/17inch/18.4inch/18.5inch/19inch/22inch/24inch Touchscreen monitor



Product Description



Feature:

10.4'' industrial grade TFT LCD panel

High brightness & good image quality

Long lifetime up to 50,000 hours

Wide operational temperature range industrial LCD controller board

High environmental performance

Low power consumption

Minimum EMI emission

Touchscreen optional

OEM available, the back housing is highly customizable







Specification:



Model No.

OP-104

LCD panel

Size/Aspect ratio

10.4''/4:3

Pixel numbers

800(H)*600(V)

Brightness

230 cd/m2

Contrast Ratio

500:1

Viewing Angle

160° (H)/130° (V)

Colors

16.2M

Input terminals

PC signal

D-Sub15 pin*1

PC audio

Stereo headphone jack*1

Power plug

12 VDC jack

OSD Control

Menu/Select,Auto,Up,Down,Power

Operating condition

Temperature

-20°C to 50°C (Operating)

-30°C to 85°C (Storage )

Humidity

10% RH to 90% RH (Operating)

10% RH to 90% RH (Storage)

Power &
Power rating
(support DPMS)

Input Voltage

12V DC

Operation

‹16 watt

Stand-by

‹5 watt

Weight

N.W./G.W.

1.0Kgs/1.5Kgs

Mount/installation

VESA mount:75*75mm/Flanges

Optional

Touch screen(Resistive,Capacitive)

PC Mainboard

Speakers

Protect glass(Screen protected,double coating)










Applications:

Mainly Used in Closed-Circuit Surveillance Systems,
Car Video, Car navigation system,PC Operating Systems,
Vehicle Navigation Systems Supporting Display,
Can Also be Applied for Industrial Automation,
Industrial control system
Medical Machine Equipments,
Electric Power,
Petrification,
POS, ATM
Instrumentation Display Systems.







Pictures Show

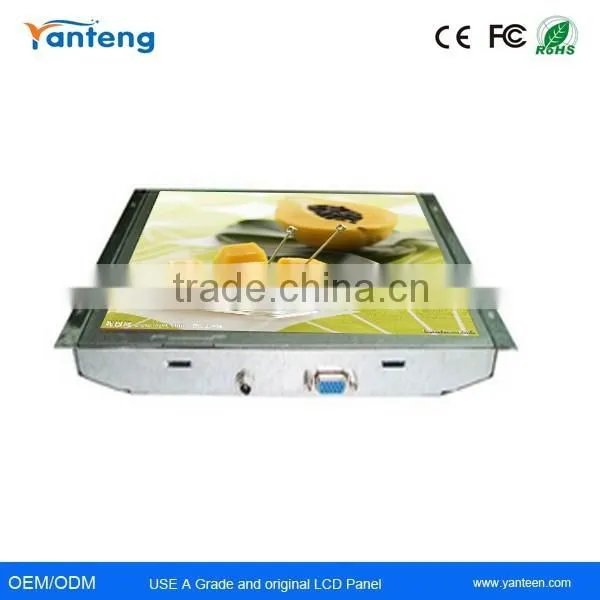

 10.4inch industrial grade Open frame monitor for the Kiosk



Packaging & Shipping



Shipping and Package:



Gift&neutral box

SEETEC strives to get all orders out as quickly as possible after QC Dept fully test them!

Express(UPS,DHL,Fedex,EMS,etc) is available.

Sea and Air delivery is available

From Monday to Saturday 8:00am-17:30pm for Shipping Time.

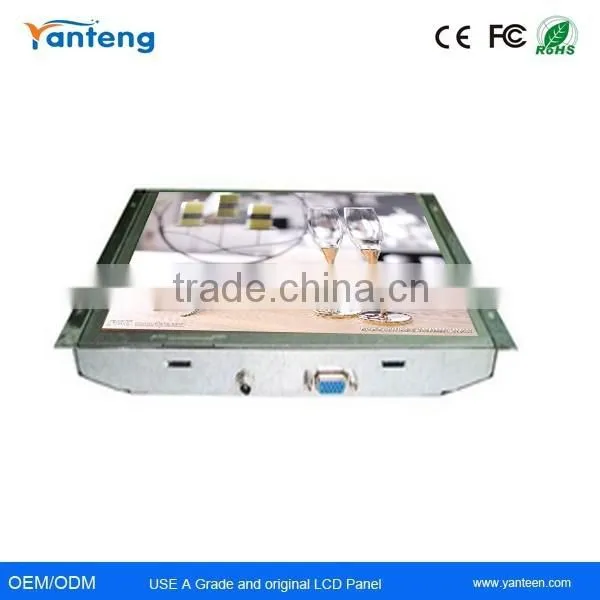

10.4inch industrial grade Open frame monitor for the Kiosk



Our Services



1.Powerfull Research&Development Experience

2.OEM&ODM Ability

3.Strict QC TEST Control

4.EASY & FAST Communicate

5.Responsible 24 hours sale service





Company Information

Yan Teng Technology Co.,Ltd is a professional manufacturer of LCD display through development and production together under one roof.LCD display including, Touch screen monitor, LCD CCTV monitor, Open frame monitor,

Digital signage, LCD video wall, LCD kiosk.We also deal in all kinds of name brand Indrustrial LCD panel.

 10.4inch industrial grade Open frame monitor for the Kiosk10.4inch industrial grade Open frame monitor for the Kiosk10.4inch industrial grade Open frame monitor for the Kiosk





FAQ



Q: Why choose Yan Teng?

A: 1. Professional Touchscreen monitor manufacture for years with great experience .

     2. Own factory , you could share direct factory price .

     3. Quality guaranteed by our QC.

     4. Low price , but in high quality .

     5. OEM/ODM supported







Q: What's the time of delivery ?

A:  It's subject to your order quantity and our production schedule . Usually , 3-5 working days for sample order , 15-20 working days for mass production after receipt of payments .







Q: What paying methods do you accept ?

A: T/T and WestUion .







Q: How is your warranty policy for goods ?

A: We focous on our after-sale service , and all our products share 12 months' warranty .













*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
