IPS Panel 18.5inch Open Frame Monitor With Touchscreen Option

IPS Panel 18.5inch Open Frame Monitor With Touchscreen Option thumbnail-1
IPS Panel 18.5inch Open Frame Monitor With Touchscreen Option thumbnail-2
IPS Panel 18.5inch Open Frame Monitor With Touchscreen Option thumbnail-3
IPS Panel 18.5inch Open Frame Monitor With Touchscreen Option photo-1

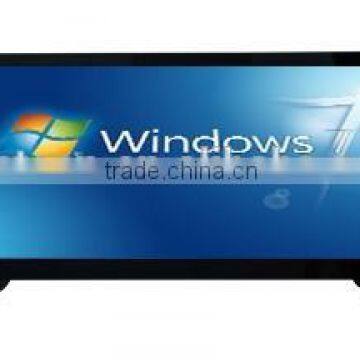

IPS Panel 18.5inch Open Frame Monitor With Touchscreen Option photo-2

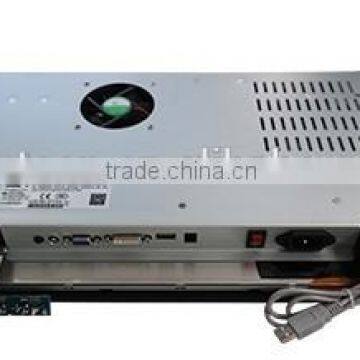

IPS Panel 18.5inch Open Frame Monitor With Touchscreen Option photo-3
US$ 320 - 450 MOQ: 1 Unit
Key Specifications
Get Latest Price
Products Status:
Stock
Application:
Other, Kiosk
Screen Size:
Other, 18.5"
Contact Supplier Request Quote Chat Now
Shenzhen Yan Teng Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Application Other, Kiosk
Screen Size Other, 18.5"
Response Time 5ms
Brightness 350cd/m
Interface Type D-Sub, DVI, HDMI
Contrast Ratio 500:1
Resolution 1366 x 768
Widescreen Yes
Panel Type TFT
Brand Name OEM
Model Number OP-1805
Place of Origin Guangdong, China



6.5inch/7inch/8inch/10.4inch/12.1inch/15inch/17inch/18.4inch/18.5inch/19inch/22inch/24inch Industrial open frame monitor



Product Description



Feature:

· 18.5" IPS panel, High definition panel
· High performance graphic controller on board
· Slim line backlight inverter on board
· Customized designs are welcome
· Cable sets, OSD and power supply available
· Low power consumption
· Long lifetime up to 70,000 hours & Minimum EMI emission
· Standard VGA input
· Touch screen type: SAW, Resistive, Capacitive, IR (optional)







Specification:



Model No.

OP-1805

LCD panel

Size

18.5"

Pixel numbers

1366*768

Brightness

350cd/m2

Contrast Ratio

500:1

Viewing Angle

178° (H)/178° (V)

Colors

 16.7M

Hardware Spec

Interface

VGA Input : D-Sub15 pin

Optional Interface

DVI. USB. HDMI,S-Video(Optional)

Power

Input: 100 ∼ 240V, 50~60Hz / Output : DC 12V, 3.5A

OSD Control

Auto adjust, Brightness, Contrast, Hori. / Vert. Position, Clock, phase, Color, Language..

Temperature

0°C to 50°C (Operating)

-20°C  to 60°C (Storage )

Humidity

10% RH to 90% RH Operating

10% RH to 90% RH Storage

Power Consumption

30 Watts ( Max )

Plug & Play

DDC 1/2B

Accessories

15-PIN VGA cable, Power cord, AC adaptor

Touch Screen(Optional)

Type

SAW, Resistive, Capacitive, IR optional

TouchScreen interface

Serial (RS232) or USB

Mounting

Panel-Mount, Rear-Mount, VESA 75mm/100mm , brackets included

Weight

Net weight 3.5kg , Gross weight 4.0kg












Applications:

Mainly Used in Closed-Circuit Surveillance Systems,
Car Video, Car navigation system,PC Operating Systems,
Vehicle Navigation Systems Supporting Display,
Can Also be Applied for Industrial Automation,
Industrial control system
Medical Machine Equipments,
Electric Power,
Petrification,
POS, ATM
Instrumentation Display Systems.







Pictures Show

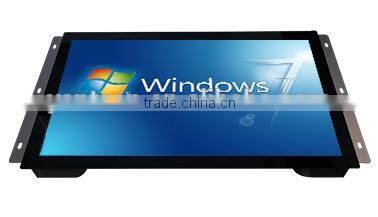

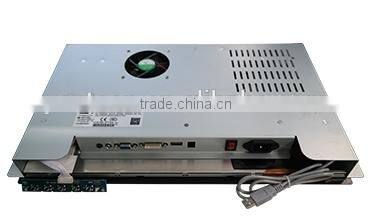

 IPS panel 18.5inch Open frame monitor with touchscreen optionIPS panel 18.5inch Open frame monitor with touchscreen option







Packaging & Shipping



Shipping and Package:

Neutral Carton box

SEETEC strives to get all orders out as quickly as possible after QC Dept fully test them!

Express(UPS,DHL,Fedex,EMS,etc) is available.

Sea and Air delivery is available

From Monday to Saturday 8:00am-17:30pm for Shipping Time.

IPS panel 18.5inch Open frame monitor with touchscreen option



Our Services



1.Powerfull Research&Development Experience

2.OEM&ODM Ability

3.Strict QC TEST Control

4.EASY & FAST Communicate

5.Responsible 24 hours sale service





Company Information

Yan Teng Technology Co.,Ltd is a professional manufacturer of LCD display through development and production together under one roof.LCD display including, Touch screen monitor, LCD CCTV monitor, Open frame monitor,

Digital signage, LCD video wall, LCD kiosk.We also deal in all kinds of name brand Indrustrial LCD panel.





IPS panel 18.5inch Open frame monitor with touchscreen optionIPS panel 18.5inch Open frame monitor with touchscreen option



IPS panel 18.5inch Open frame monitor with touchscreen option





FAQ



Q: Why choose Yan Teng?

A: 1. Professional Touchscreen monitor manufacture for years with great experience .

     2. Own factory , you could share direct factory price .

     3. Quality guaranteed by our QC.

     4. Low price , but in high quality .

     5. OEM/ODM supported







Q: What's the time of delivery ?

A:  It's subject to your order quantity and our production schedule . Usually , 3-5 working days for sample order , 15-20 working days for mass production after receipt of payments .







Q: What paying methods do you accept ?

A: T/T and WestUion .







Q: How is your warranty policy for goods ?

A: We focous on our after-sale service , and all our products share 12 months' warranty .













*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
