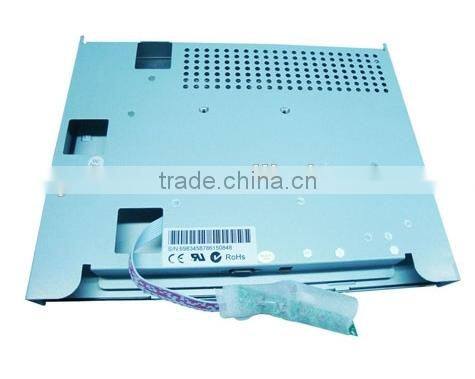

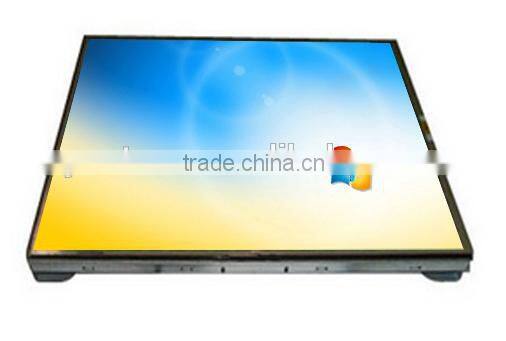

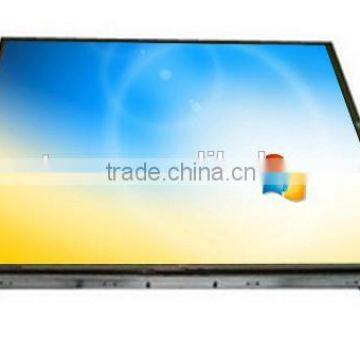

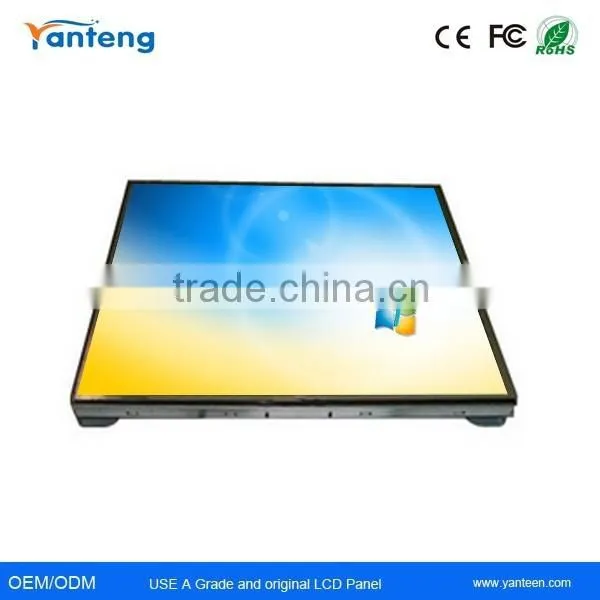

Help Center15inch Industrial Grade Open Frame Monitor With Touchscreen Option
Related Products
-
17inch Industrial Grade Open Frame Monitor With Touchscreen OptionUS$ 180 - 350MOQ: 1 Unit -
Square Screen 19inch Industrial Grade Open Frame Monitor With Touchscreen OptionUS$ 250 - 400MOQ: 1 Unit
-
IPS Panel 18.5inch Open Frame Monitor With Touchscreen OptionUS$ 320 - 450MOQ: 1 Unit
-
Metal Casing Widescreen19inch Industrial Grade Open Frame MonitorUS$ 180 - 350MOQ: 1 Unit
-
High Resolution 21.5inch Industrial Open Frame Monitor for the KioskUS$ 300 - 400MOQ: 1 Unit
6.5inch/7inch/8inch/10.4inch/12.1inch/15inch/17inch/18.4inch/18.5inch/19inch/22inch/24inch Industrial open frame monitor
Feature:
15'' industrial grade TFT LCD panel
High brightness & good image quality
Long lifetime up to 50,000 hours
Wide operational temperature range industrial LCD controller board
High environmental performance
Low power consumption
Minimum EMI emission
Touchscreen optional
OEM available, the back housing is highly customizable
Available Sizes: 15" 17" 19" 21.5" 22"
Specification:
| Model No. | OP-1501 | |
| LCD panel | Size/Aspect ratio | 15''/4:3 |
| Pixel numbers | 1024(H)*768(V) | |
| Brightness | 400 cd/m2 | |
| Contrast Ratio | 700:1 | |
| Viewing Angle | 160° (H)/140° (V) | |
| Colors | 16.2M | |
| Input terminals | PC signal | D-Sub15 pin*1 |
| Power plug | 12 VDC jack | |
| OSD Control | Menu/Select,Auto,Up,Down,Power | |
| Operating condition | Temperature | -20°C to 60°C (Operating) |
| -30°C to 70°C (Storage ) | ||
| Humidity | 10% RH to 90% RH (Operating) | |
| 10% RH to 90% RH (Storage) | ||
|
Power & Power rating (support DPMS) |
Input Voltage | 12V DC |
| Operation | 30 watt | |
| Stand-by | ‹5 watt | |
| Weight | N.W./G.W. | 3.0Kgs/4.0Kgs |
| Mount/installation | VESA mount:75*75mm/Flanges | |
| Optional | Touch screen(Resistive,Capacitive) | |
| PC Mainboard | ||
| Speakers | ||
| Protect glass(Screen protected,double coating) | ||
Applications:
Mainly Used in Closed-Circuit Surveillance Systems,
Car Video, Car navigation system,PC Operating Systems,
Vehicle Navigation Systems Supporting Display,
Can Also be Applied for Industrial Automation,
Industrial control system
Medical Machine Equipments,
Electric Power,
Petrification,
POS, ATM
Instrumentation Display Systems.
Shipping and Package:
Neutral Carton box
SEETEC strives to get all orders out as quickly as possible after QC Dept fully test them!
Express(UPS,DHL,Fedex,EMS,etc) is available.
Sea and Air delivery is available
From Monday to Saturday 8:00am-17:30pm for Shipping Time.
1.Powerfull Research&Development Experience
2.OEM&ODM Ability
3.Strict QC TEST Control
4.EASY & FAST Communicate
5.Responsible 24 hours sale service

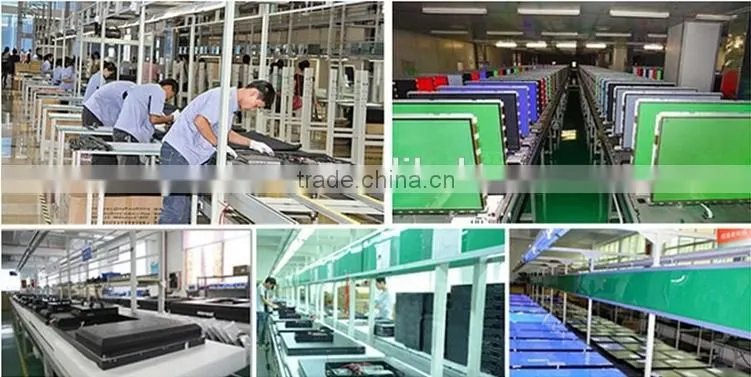

Yan Teng Technology Co.,Ltd is a professional manufacturer of LCD display through development and production together under one roof.LCD display including, Touch screen monitor, LCD CCTV monitor, Open frame monitor,
Digital signage, LCD video wall, LCD kiosk.We also deal in all kinds of name brand Indrustrial LCD panel.
Q: Why choose Yan Teng?
A: 1. Professional Touchscreen monitor manufacture for years with great experience .
2. Own factory , you could share direct factory price .
3. Quality guaranteed by our QC.
4. Low price , but in high quality .
5. OEM/ODM supported
Q: What's the time of delivery ?
A: It's subject to your order quantity and our production schedule . Usually , 3-5 working days for sample order , 15-20 working days for mass production after receipt of payments .
Q: What paying methods do you accept ?
A: T/T and WestUion .
Q: How is your warranty policy for goods ?
A: We focous on our after-sale service , and all our products share 12 months' warranty .
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
