SMC Type CJP Series Single Acting Pneumatic Pin Cylinder

Specifications

1.SMC Type CJP Series Single acting Pneumatic Pin Cylinder
2.Single Acting.
3.Bore size: 6mm,10mm,15mm.
4.1 year warranty

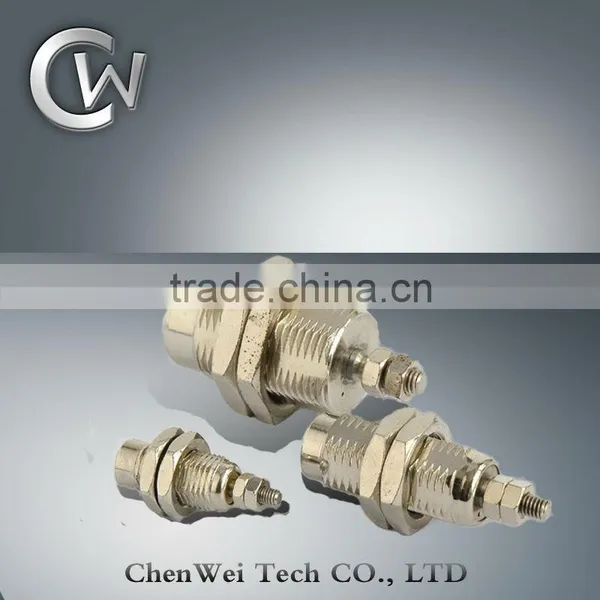

SMC Type CJP Series Single acting Pneumatic Pin Cylinder

Features:

1.CJPB series Pneumatic cylinder(Single acting).

2.Equivalent to SMC CJPB series  Pneumatic cylinder, with the same appearance.

3.Bore size(mm): 6, 10, 15.

4.Single acting, Single rod, Spring return

5.Panel mounting or plug mounting is potional.

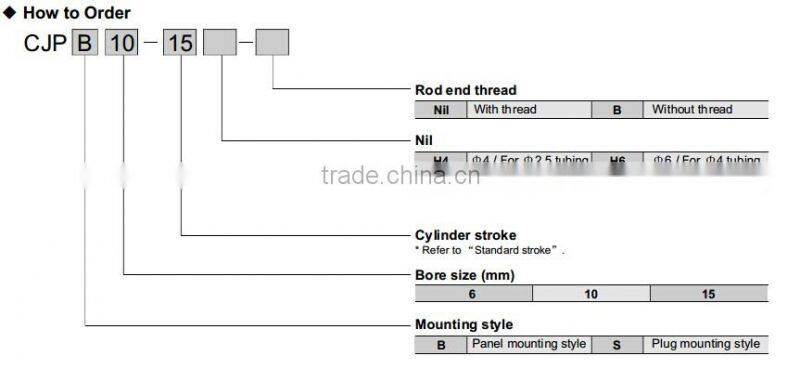

How to Order:



Specification:

Bore size (mm)		6	10	15
Fluid		Air
Action		Single acting, Single rod, Spring return.
Minimum operating pressure		0.2 MPa	0.15 MPa
Maximum operating pressure		0.7 MPa
Proof pressure		1.05 MPa
Ambient and fluid temperature		-20 to 80°C (No freezing)
Cushion		None
Lubrication		Non-lube
Piston rod dia.		3 mm	5 mm	6 mm
Rod end thread	With Thread(Male)	M3x0.5	M4x0.7	M5x0.8
	Without thread	-
Port Size		M5x0.8



Main Material:



No.	Description	Material	Note
1.	Cylinder barrel	Brass	Electroless nickel plated
2.	Piston rod	Stainless steel	-
3.	Rod cover	Brass	Electroless nickel plated
4.	Piston	Stainless steel	-
5.	Seal	NBR	-

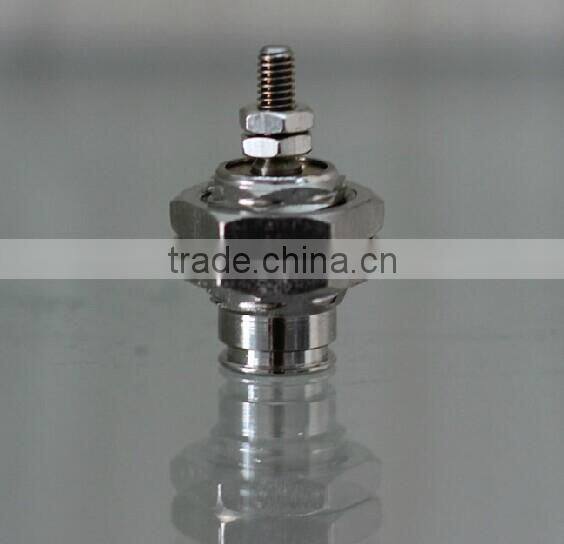

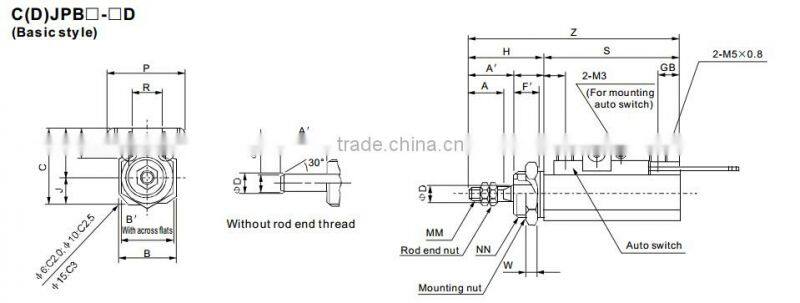

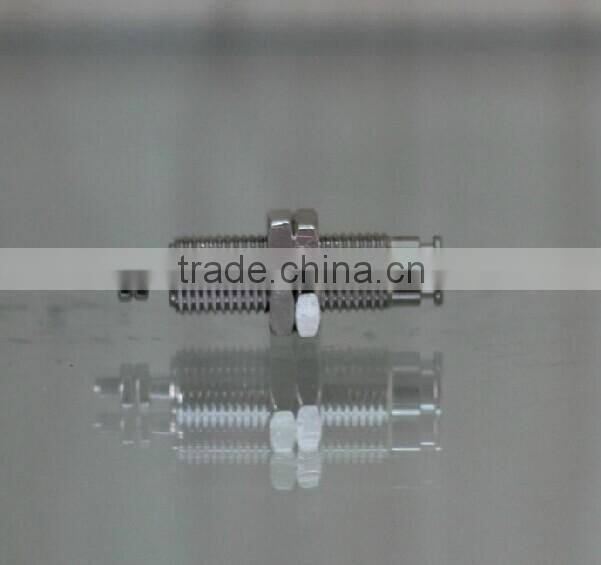

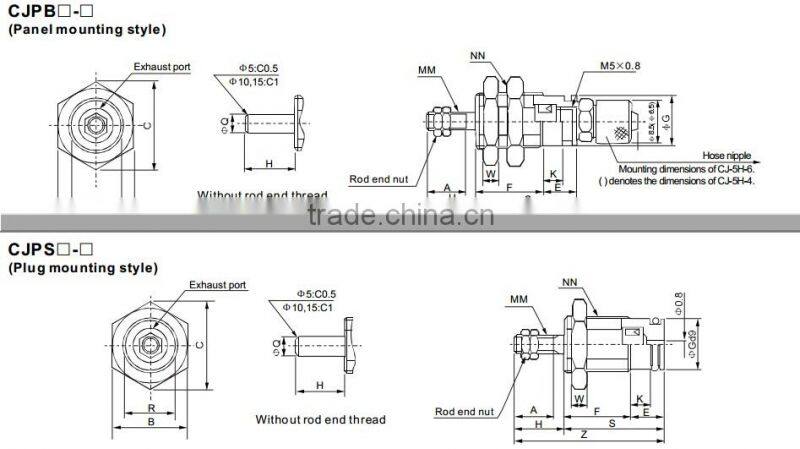

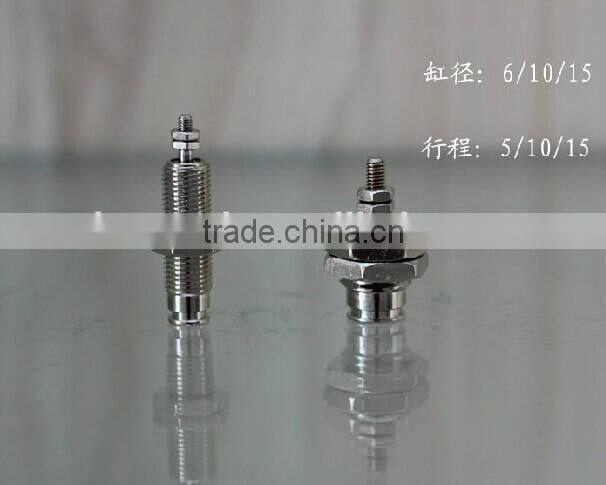

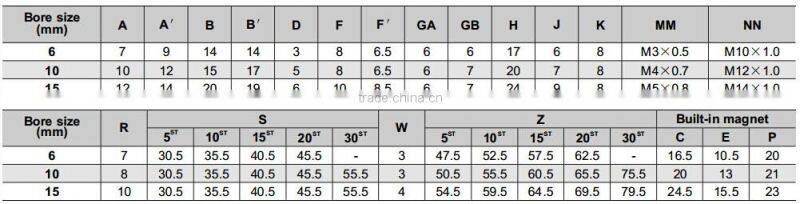

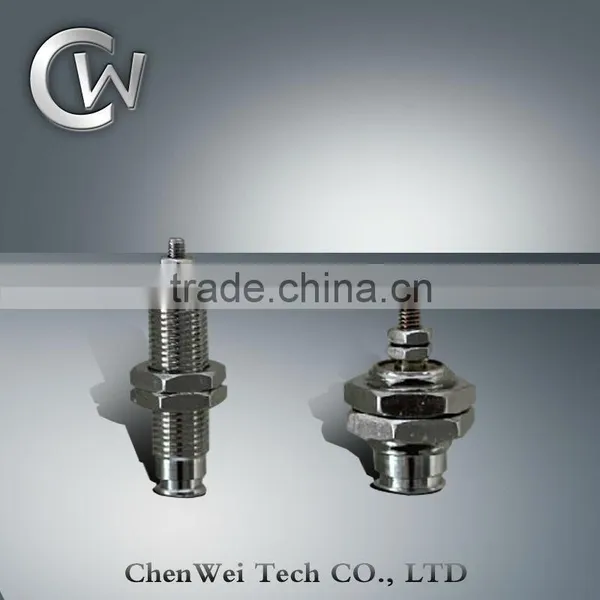

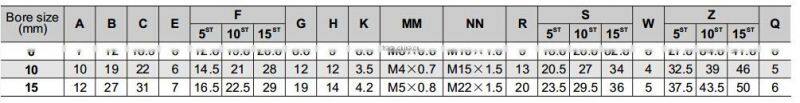

Dimensions and Sizes:
