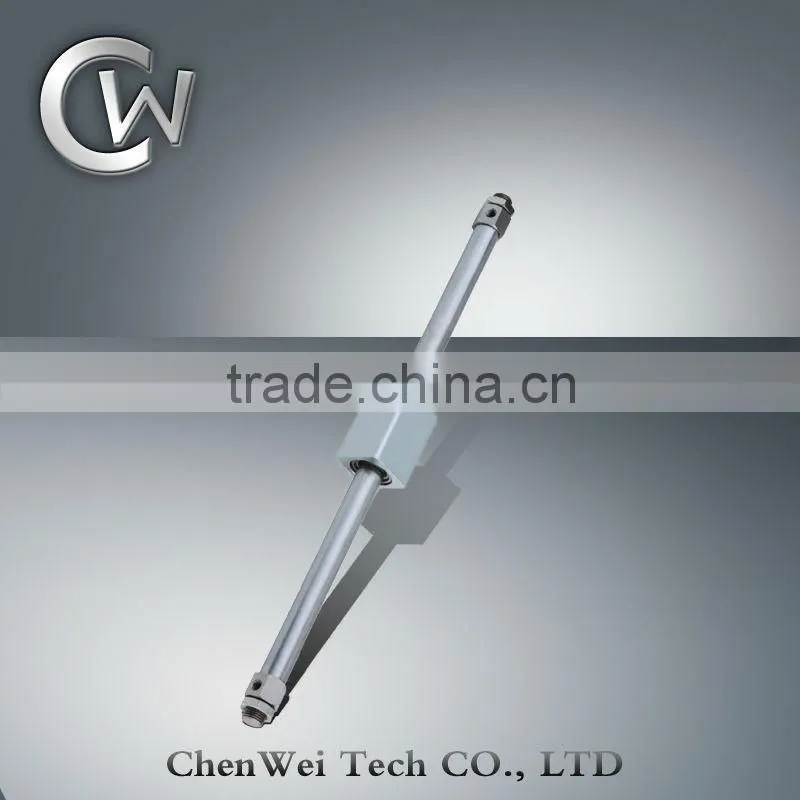

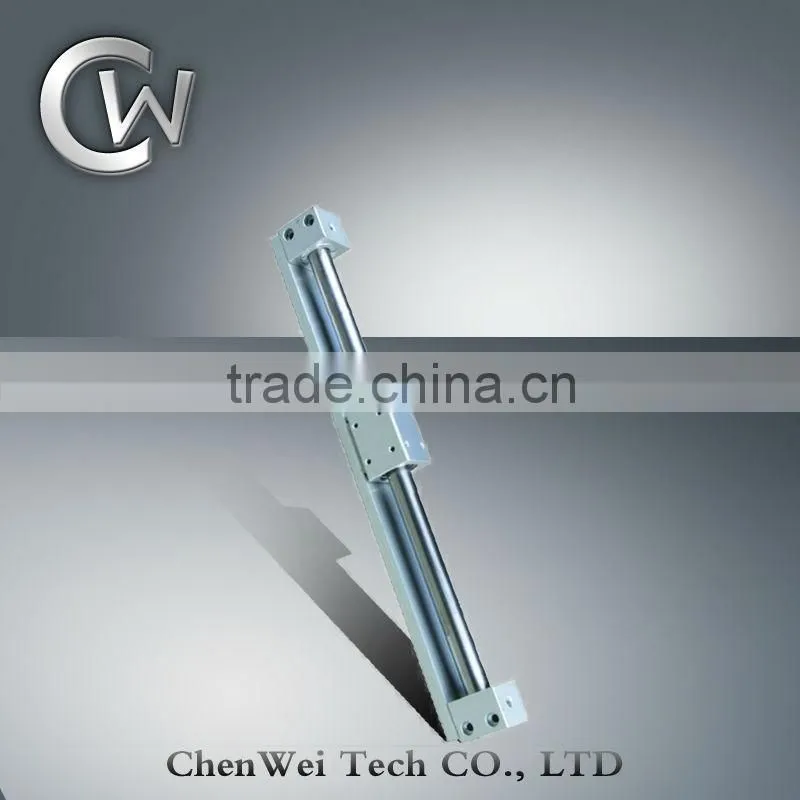

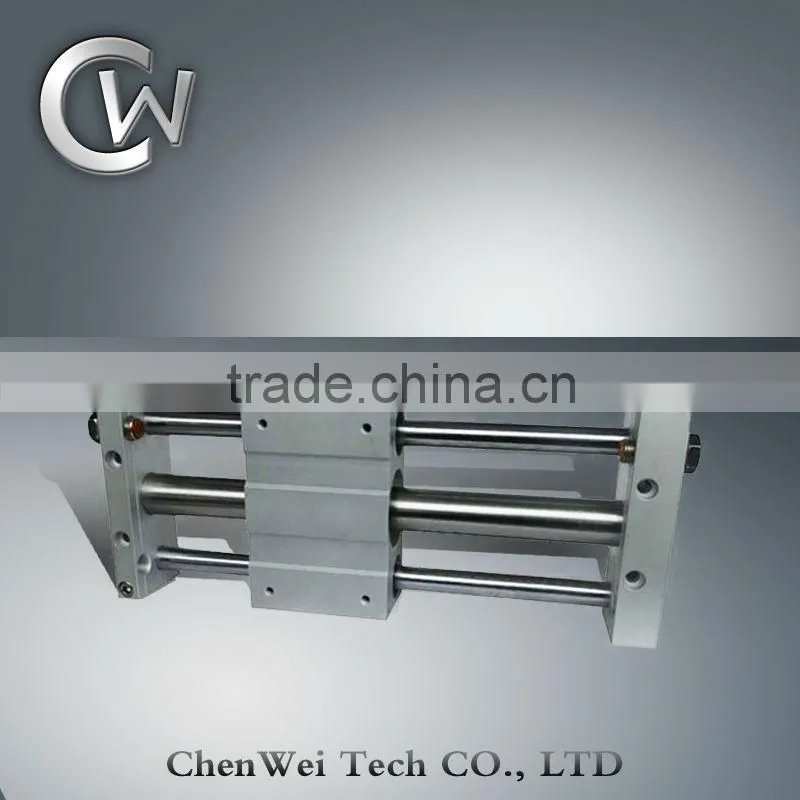

SMC Type CY1L Series Rodless Pneumatic Cylinder-Ball Bushing Bearing

Specifications

1:SMC Type CY1L Series Rodless Pneumatic Cylinder-Ball Bushing Bearing
2:without piston rod.
3:Double acting
4.Good quality

SMC Type CY1L Series Rodless Pneumatic Cylinder-Ball Bushing Bearing

Features:

1.CY1S series rodless pneumatic cylinder are very wide used in automationline
2.Normally bore size: 6mm, 10mm, 15mm, 20mm, 25mm, 32mm, 40mm, 50mm,63mm.
3.Use rubber cushion standard type to keep the cylinder operatingsoomthly, safely and quietly.
4.Easier and various mounting.

5. Ball bushing bearing type.

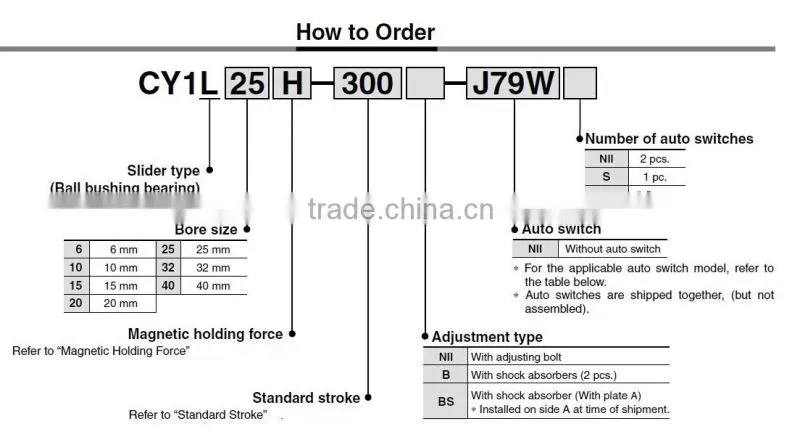

How to Order:



Specification:

Bore size(mm)	6	10	15	20	25	32	40
Workingfluid	Compressedair
Proof pressure	1.05MPa
Working pressure	0.18~0.7MPa
Working temperature	~10~60 degree
Piston speed	50~500mm/s
Cushion	Rubber bumper at both end
Lubrication	no need lubrication
Mounting method	Direct mount type

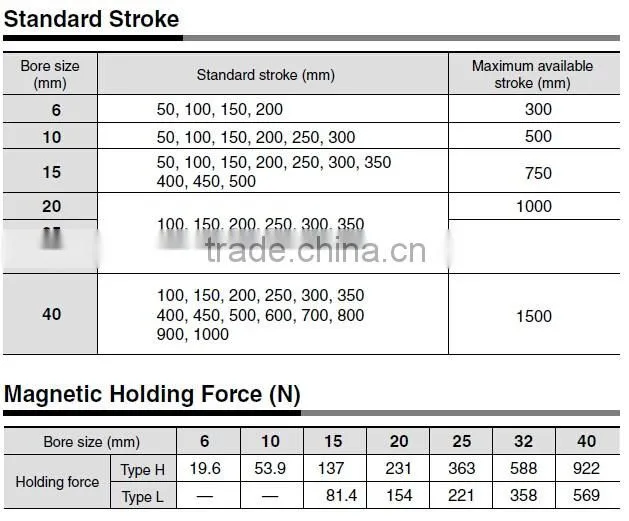

Standard Stroke:



Main Mterial:

No	Description	Material
01	Cylinder Body	Aluminium Alloy
02	Cylinder Tube	Stainless Steel
03	Cylinder Cover	Aluminium Alloy
04	Piston	Aluminium Alloy
05	Cushion Gasket	Polyurethane
06	Wearing Ring	Special Resin
07	Piston Seal	NBR
08	Wiper Scraper Seal	Special Resin
