Help CenterCY1B32X100mm Magnetically Coupled Rodless Pneumatic Cylinder
Related Products
-
Stainless Steel Mini Cylinder- ISO6432-Double Acting Mini Pneumatic CylinderUS$ 4 - 10MOQ: 10 Pieces -
AIRTAC Type TN Series Twin Rod Pneumatic Cylinders-Dual Rod Air CylinderUS$ 5 - 15MOQ: 1 Piece
-
SMC Type CJP Series Single Acting Pin CylinderUS$ 2 - 5MOQ: 10 Pieces
-
FESTO Standard ADVU Compact CylinderUS$ 5 - 20MOQ: 5 Pieces
-
MK Series Port Thread Type Rotary Clamp CylinderUS$ 10 - 20MOQ: 2 Pieces
Specifications
1:SMC type CY1B32X100mm Magnetically Coupled Rodless Pneumatic Cylinder2:without piston rod.
3:Double acting
4.good quality

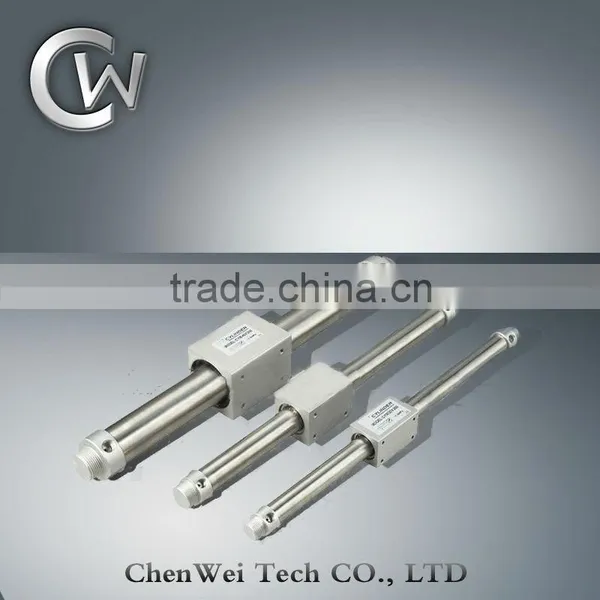

CY1B32X100mm Magnetically Coupled Rodless Pneumatic Cylinder
Features:
1) Basic magnetically coupled rodless cylinder.
2) Bore size 10,15,20,25,32,40
3) Strokes from 50 to 1600mm
4) Available with high or low magnetic holding force
5) Long life time with no external leakage

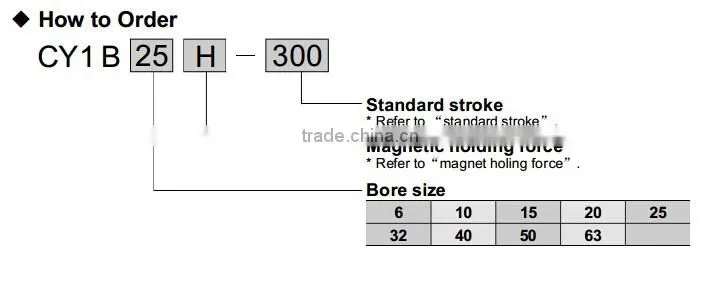

How to Order:
Specification:
| Bore size(mm) | 10 | 15 | 20 | 32 | 40 | ||||
| Fluid | Filtered compressed air | ||||||||
| Proof pressure | 1.05Mpa | ||||||||
| Operating pressure range | 0.18~0.7Mpa | ||||||||
| Ambient and fluid temperature | -20~80ºC(No freezing) | ||||||||
| Piston speed | 50~400mm/s | ||||||||
| Port size | M5X0.8 | Rc1/8 | Rc1/4 | ||||||
| Cushion | Rubber bumpers at both ends | ||||||||
| Mounting orientation | Unrestricted | ||||||||
| Mounting nuts(2pcs) | Standard equipment(Accessory) | ||||||||

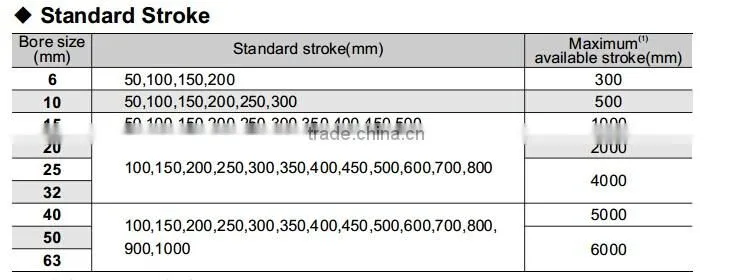

Standard Stroke:
Main Mterial:
| No | Description | Material |
| 01 | Cylinder Body | Aluminium Alloy |
| 02 | Cylinder Tube | Stainless Steel |
| 03 | Cylinder Cover | Aluminium Alloy |
| 04 | Piston | Aluminium Alloy |
| 05 | Cushion Gasket | Polyurethane |
| 06 | Wearing Ring | Special Resin |
| 07 | Piston Seal | NBR |
| 08 | Wiper Scraper Seal | Special Resin |

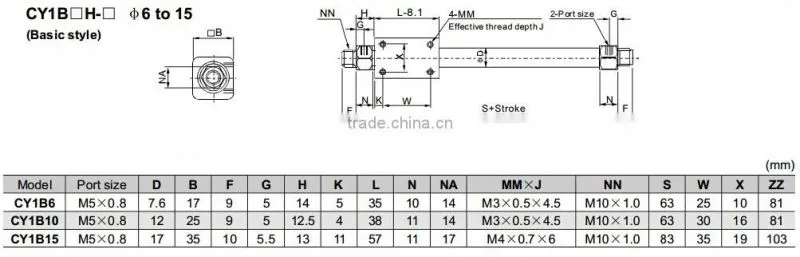

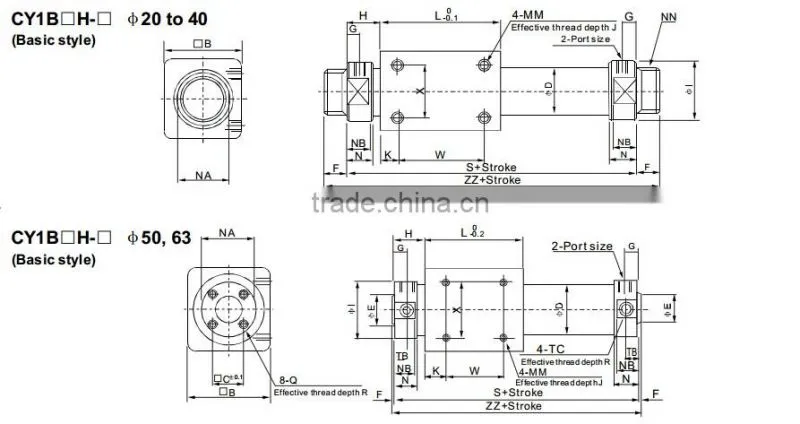

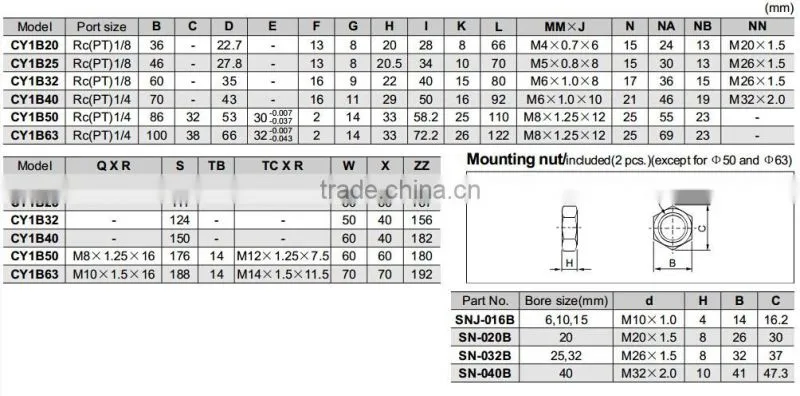

Dimensions and sizes
1: Usually we ship your order by sea or by air...
2: We do our best to ship your order within 1 week after receiving your payment
3: We'll tell you the tracking number once your order has been sent.
Package
1:Inner packing: opp bag, then carton box for each product.
2:Outer packing: export standard carton, Foam outside protecting the goods against damage
Payment
1: We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal.
Why choose us
1: Various style for each products and completely series pneumatic products for you to choose from.
2: Large stock for fast shipping.
3: High quality with competitive price
4: Sample order & small quantity order is ok
6: Provide free products information.
7. Reliable quality assured and active after-sell service
Feel free to contact us at anytime if you have any problems or questions on your purchase. We will resolve any problems such as damaged, not as described, missing parts, and lost items. All emails will be replied within 24 hours except Saturday. & Sunday and Chinese holidays. If you have any other requirements or questions, welcome to visit our website, or just contact with us directly. Thank you!
