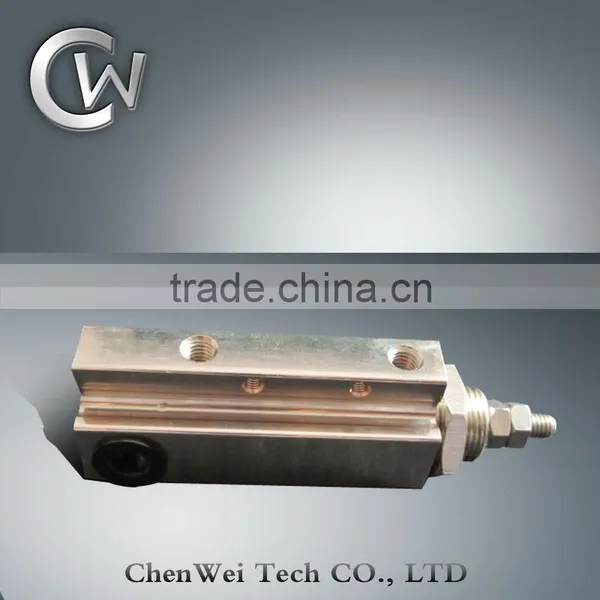

Help CenterCJP Series Double Acting Pneumatic Needle Cylinder
Related Products
-
SMC Type CJP Series Double Acting Needle CylinderUS$ 2 - 5MOQ: 10 Pieces -
SMC Type CJP Series Single Acting Pneumatic Pin CylinderUS$ 2 - 5MOQ: 10 Pieces
-
SMC Type CY1L Series Rodless Pneumatic Cylinder-Ball Bushing BearingUS$ 40 - 100MOQ: 2 Pieces
-
SMC Type CY1S Series Rodless Magnetic Cylinder-Slide Bearing TypeUS$ 40 - 100MOQ: 2 Pieces
-
SMC Type CY1R Magnetic Rodless CylinderUS$ 40 - 100MOQ: 2 Pieces
Specifications
1.CJP Series Double Acting Pneumatic Needle Cylinder2.Double Acting.
3.Bore size: 6mm,10mm,15mm.
4.1 year warranty
SMC Type CJP Series Double Acting Needle Cylinder
Features:
1.Equivalent to SMC CJP2 series pin pneumatic cylinder, with the same appearance.
2.New style of SMC.
3.Bore size(mm): 4, 6, 10, 16.
4.Double acting, Single rod.
5.Built-in magnet is optional.
How to Order:
Specification:
| Bore size (mm) | 6 | 10 | 15 | |
| Fluid | Filtered air | |||
| Action | double acting, single rod | |||
| Minimum operating pressure | 0.12MPa | 0.06 MPa | ||
| Maximum operating pressure | 0.7MPa | |||
| Proof pressure | 1.05MPa | |||
| Ambient and fluid temperature | ~10~70℃ | |||
| Cushion | rubber bumper | |||
| Lubrication | no need | |||
| Piston rod dia. | 3 mm | 5 mm | 6 mm | |
| Rod end thread | With Thread(Male) | M3x0.5 | M4x0.7 | M5x0.8 |
| Without thread | ||||
| Port Size | M5X0.8 | |||
Main Material:
| No. | Description | Materia | Note | |
| 1. | Cylinder barrel | Aluminum alloy | Hard anodized | |
| 2. | Piston rod | Stainless steel | - | |
| 3. | Rod cover | ø4, ø6, ø10 | Brass | Electroless nickel plated |
| ø16 | Aluminum alloy | Clear anodized | ||
| 4. | Piston | ø4 | Stainless steel | - |
| ø6, ø10 | Brass | - | ||
| ø16 | Aluminum alloy | Chromated | ||
| 5. | Seal | NBR | - | |
Dimensions and Sizes:
