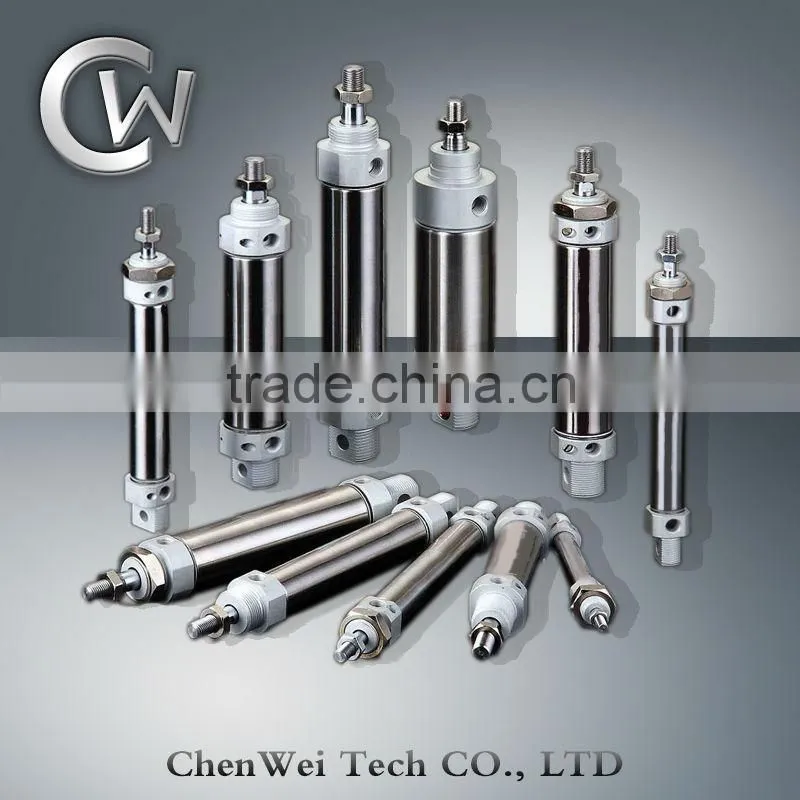

SMC Type CDM2B32X50mm Magnet Stainless Pneumatic Cylinder-Mini Cylinder

Specifications

1.SMC Type CDM2B32X50mm Magnet Stainless Pneumatic Cylinder-Mini Cylinder
2.Equivalent to SMC type
3.Bore size: 20~40mm

SMC Type CDM2B32X50mm Magnet Stainless Pneumatic Cylinder-Mini Cylinder

Features:

1.CM2 series  Stainless Steel Cylinder Pneumatic .

2.Equivalent to SMC CM2 series Stainless Steel Cylinder Pneumatic , with the same appearance.

3.Bore size(mm): 20, 25, 32, 40.

4.Double acting, Single/Double rod

5.Rubber bumper, or with adjustable air cushion at both ends(Option).

6.Built-in magnet is optional.

7.Cylinder kits, barrel, piston is available.

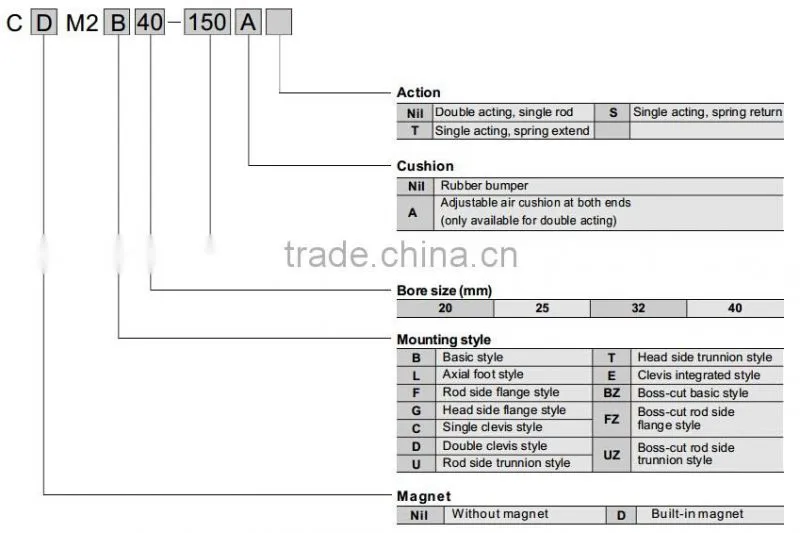

How To Order:

Specification:

Bore size (mm)		20	25	32	40
Fluid		Air
Action	CM2	Double acting, Single/Double rod
	CM2-S/T	Single acting, Single rod, Spring return/extend
Minimum operating pressure	Double acting	0.05 MPa
	Spring return	0.18 MPa
	Spring extend	0.23 MPa
Maximum operating pressure		1.0 MPa
Proof pressure		1.5 Mpa
Ambient and fluid temperature		-20 to 80°C (No freezing)
Cushion	Double acting	Rubber bumper
		Adjustable air cushion at both ends
	Single acting	Rubber bumper
Lubrication		Non-lube
Piston rod dia.		8 mm	10 mm	12 mm	14 mm
Rod end thread		M8x1.25	M10 x 1.25		M14 x 1.5
Port size		G1/8			G1/4

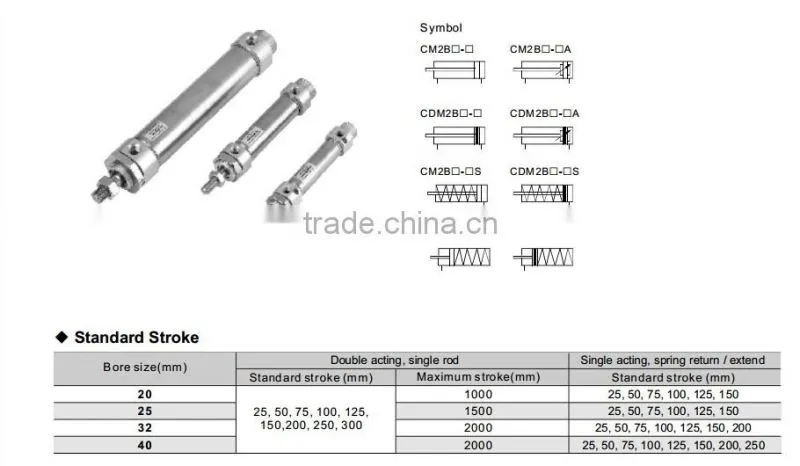

Standard Stroke:

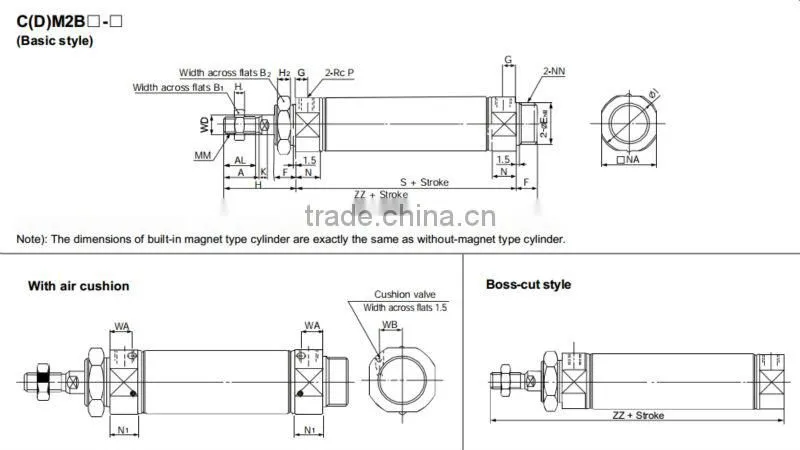

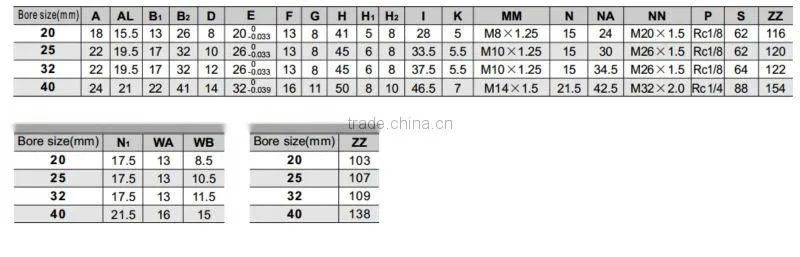

Dimensions and sizes
