Specifications
1.CJ2D Pneumatic Cylinder For Sewing Machine-Pin Cylinder2.Interchange with SMC
3.with magnet
4.Double clevis at the end

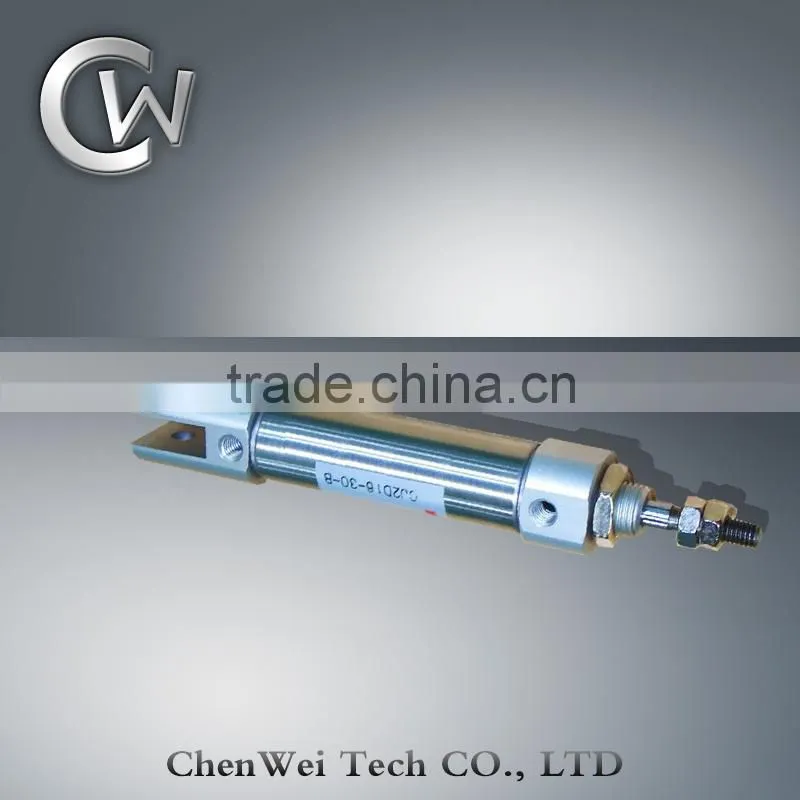

CJ2D Pneumatic Cylinder For Sewing Machine-Pin Cylinder
Features:
1.CJ2 Series mini cylinder.
2.Equivalent to SMC CJ2 Series mini cylinder, with the same appearance.
3.Bore size(mm): 6, 10, 16.
4.Double acting, Single/Double rod
5.Rubber bumper, or with adjustable air cushion at both ends(Option).
6.Built-in magnet is optional.
7.Cylinder kits, barrel, piston is available.
How To Order:
Specification:
| Bore size (mm) | 6 | 10 | 16 | |
| Fluid | Air | |||
| Action | CJ2-D | Double acting, Single/Double rod | ||
| CJ2-S/T | Single acting, Single rod, Spring return/extend | |||
| Minimum operating pressure | Double acting | 0.12 MPa | 0.06 MPa (air cushion 0.1 MPa) | |
| Spring return | 0.2 MPa | 0.15 MPa | ||
| Spring extend | 0.25 MPa | |||
| Maximum operating pressure | 0.7 MPa | |||
| Proof pressure | 1.0 MPa | |||
| Ambient and fluid temperature | -20 to 80°C (No freezing) | |||
| Cushion | Double acting | Rubber bumper | ||
| - | Adjustable air cushion at both ends | |||
| Single acting | Rubber bumper | |||
| Lubrication | Non-lube | |||
| Piston rod dia. | 3 mm | 4 mm | 5 mm | |
| Rod end thread | M3x0.5 | M4x0.7 | M5x0.8 | |
| Port size | M5x0.8 | |||
Standard Stroke:
