Home > Industrial Equipment & Components > Valve > Ball Valve > 2P Series 2/2 Way Plastic Solenoid Valve With Engineering Plastic Body

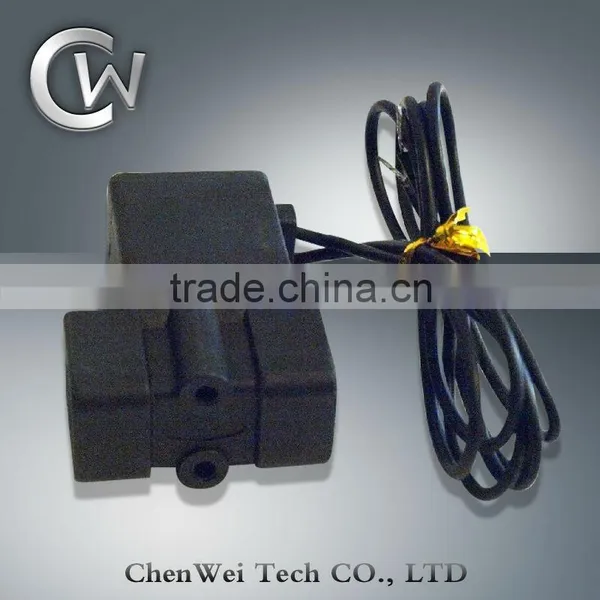

2P Series 2/2 Way Plastic Solenoid Valve With Engineering Plastic Body

US$ 2 - 5 MOQ: 2 Pieces

Key Specifications

Get Latest Price

Standard or Nonstandard:

Standard

Structure:

Regulating

Pressure:

Medium Pressure

Contact Supplier Request Quote Chat Now

Shanghai Chenwei Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ningbo or shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Standard or Nonstandard Standard

Structure Regulating

Pressure Medium Pressure

Power Pneumatic

Material Other, plastic

Temperature of Media Medium Temperature

Media Other, air, water, oil,gas

Port Size G1/8, G1/4

Place of Origin Zhejiang, China

Model Number 2P025-06,2P025-08

Brand Name CW

Specifications

1.2P Series 2/2 way Plastic Solenoid Valve
2.Engineering plastic body
3.port:G1/8,G1/4
4.1 year warranty

2P Series 2/2 way Plastic Solenoid Valve with Engineering Plastic Body

Features:

1) port size: 1/8", 1/4"

2) Working Medium: gas, air, water

3) Action Type: direct acting type

4) Valve Body: Engineering plastic

5) Valve Control Style: NC (normal close)

6) Working Pressure: 0~0.7MPa

7) Max. Proof Pressure: 1.05MPa

8) Seal Material: NBR, VITON is available.

9) Working Temperature: -5~80°C

10) Voltage: DC12V, DC24V, AC24V, AC110V, AC220V ,AC380V 50/60HZ,

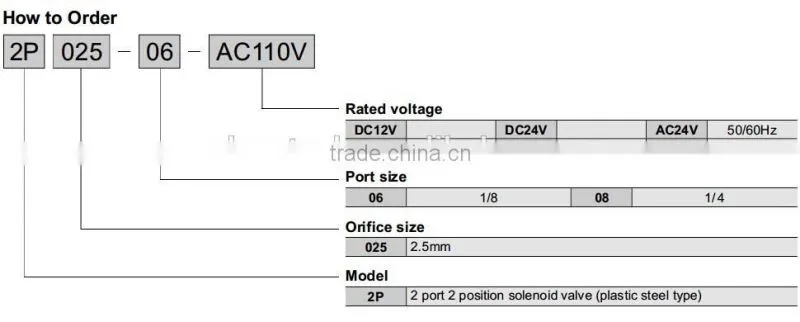

How To Order:

Specification:

Model	2P025-06	2P025-08
Fluid	Air, Water, Oil, Gas
Operation	Direct Drive Type
Type	Normal Closed Type
Aperture of flow rate(mm)	2.5
Cv value	0.23
Port size	NPT1/8'' or NPT1/4''
Operation fluid viscosity	20 CST Below
Operation pressure	0 ~ 0.7MPa
Max.Proof pressure	1.05MPa
Operation temperature range	-5 ~ +80C
Voltage range	±10%
Conventional Voltage	12V ,24V, 220V ,110V
Metarial of body	Engineering Plastic
Material of oil seal	NBR(EPDM or VITON)

Power consumption	AC220V	2.0W
	DC12V,AC110V,AC380V	2.5W
	DC24V	3.0W
	AC24V	3.5W
Allowable voltage range	-15%~10%
IP rate	IP65
Insulation rate	Class F
Action	Internally piloted
Min. activate time	0.05 s
Lubrication	Needless

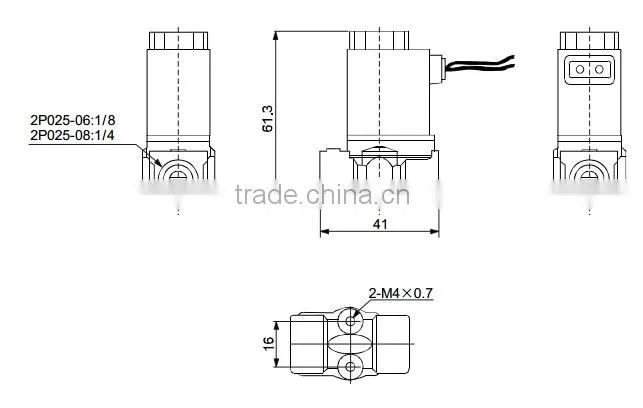

Dimensions and Sizes:

Shippment

1: Usually we ship your order by sea or by air...
2: We do our best to ship your order within 1 week after receiving your payment
3: We'll tell you the tracking number once your order has been sent.

Package
1:Inner packing: opp bag, then carton box for each product.
2:Outer packing: export standard carton, Foam outside protecting the goods against damage

Payment
1: We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal.

Why choose us
1: Various style for each products and completely series pneumatic products for you to choose from.
2: Large stock for fast shipping.
3: High quality with competitive price
4: Sample order & small quantity order is ok

5:Customize according to your special demand.
6: Provide free products information.
7. Reliable quality assured and active after-sell service

Feel free to contact us at anytime if you have any problems or questions on your purchase. We will resolve any problems such as damaged, not as described, missing parts, and lost items. All emails will be replied within 24 hours except Saturday. & Sunday and Chinese holidays. If you have any other requirements or questions, welcome to visit our website, or just contact with us directly. Thank you!
