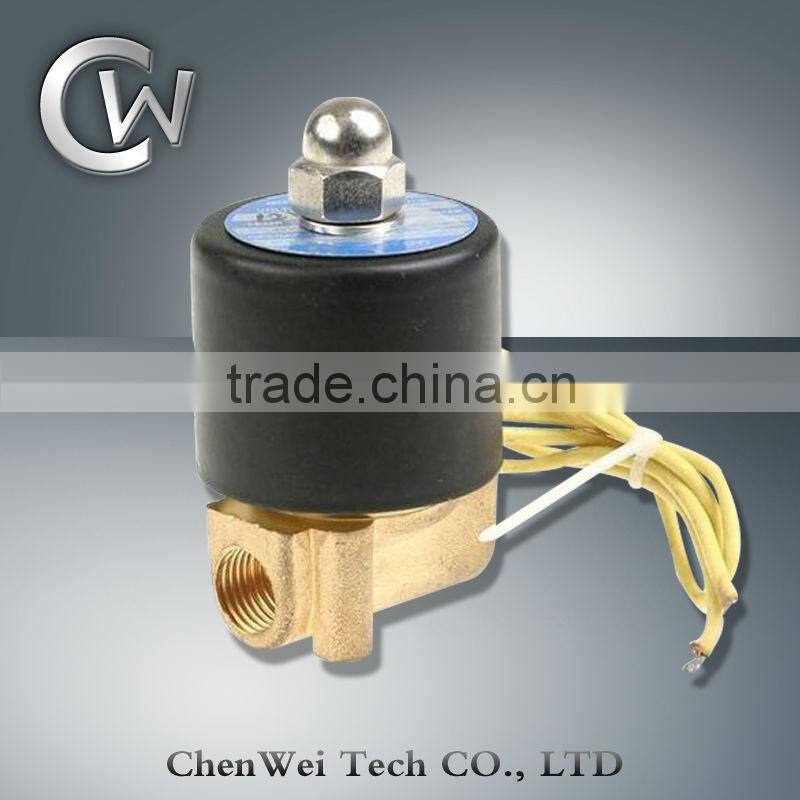

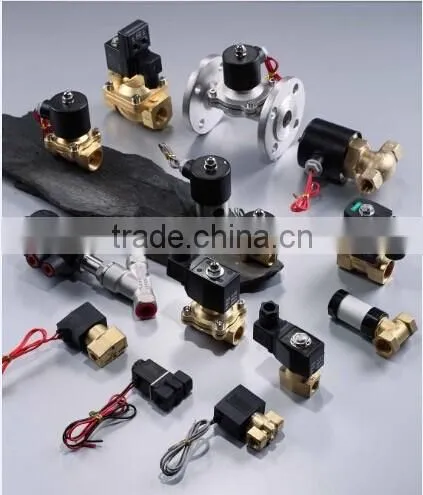

2WH Series 2 Way 2 Position Brass High Pressure Solenoid Valve

Specifications

1.2 Way 2 Position Brass High Pressure Solenoid Valve
2.Normally closed type
3.Port size:1/8", 1/4", 3/8"
4.1 year warranty

2WH Series 2 Way 2 Position Brass High Pressure Solenoid Valve

Features:                                                                                                                                   2WH Series 2 Way 2 Position Brass High Pressure Solenoid Valve with thread size from G1/8" to G3/8".

1.Port size: G1/8"~ G3/8"

2.Motion pattern: Direct Action

3.Working Medium: Air,Water,Oil,Gas

4.Type: Normal closed Type

5.Working Pressure: 0-2.0MPa. Max,Pressure Resistance: 3.5Mpa

6.Operating Temperature: -5-80°C

7.Voltage Range: ±10%

8.Material of valve body: Brass

9.Material of seal: NPR,EPDM or VITON

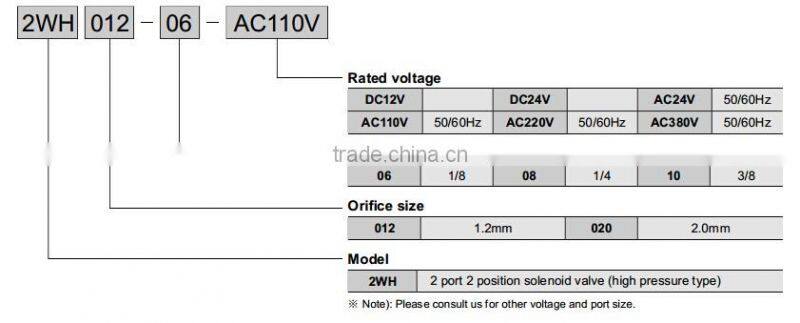

How To Order:

Specification:

Model	2WH012-06	2WH012-08	2WH020-10
Fluid	Air, Water, Oil
Action	Direct Acting, Normally Closed
Type of Actuation	2 port 2 position
Orifice Size	1.2mm		2mm
Cv	0.05		0.15
Port Size	G1/8	G1/4	G3/8
Viscosity Limit	Under 20CST
Operating Pressure Range	Air.water:0~2.0MPa,
Proof Pressure	3.5MPa
Ambient and Fluid Temperature	-5 ~ 80 degrees centigrate
Allowable Voltage Range	±10% of rated voltage
Material of Body	Brass
Seal Material	NBR



Power consumption	AC220V	2.0W
	DC12V,AC110V,AC380V	2.5W
	DC24V	3.0W
	AC24V	3.5W
Allowable voltage range	-15%~10%
IP rate	IP65
Insulation rate	Class F
Action	Internally piloted
Min. activate time	0.05 s
Lubrication	Needless

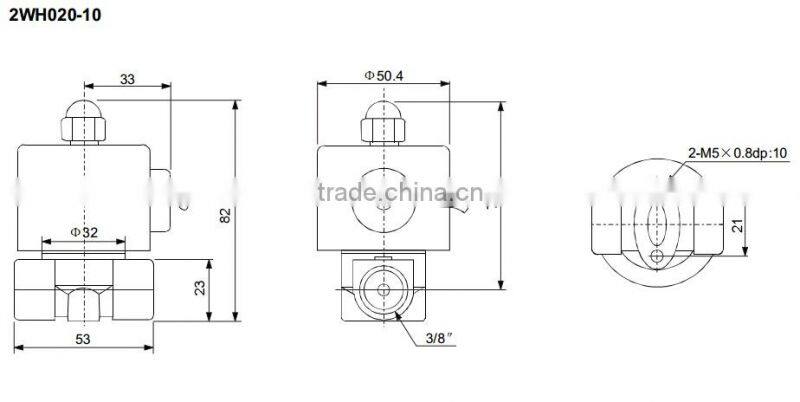

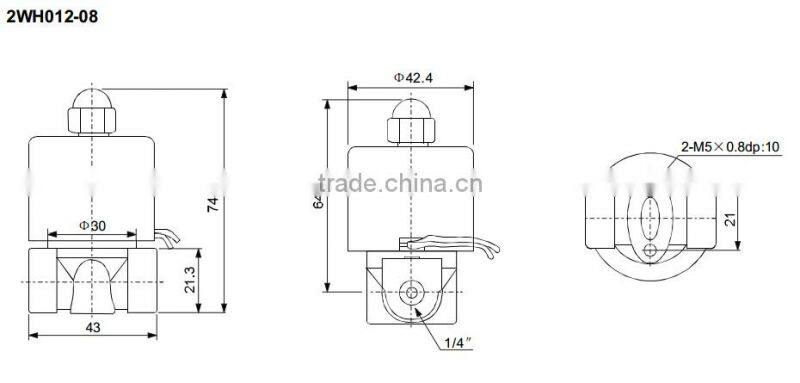

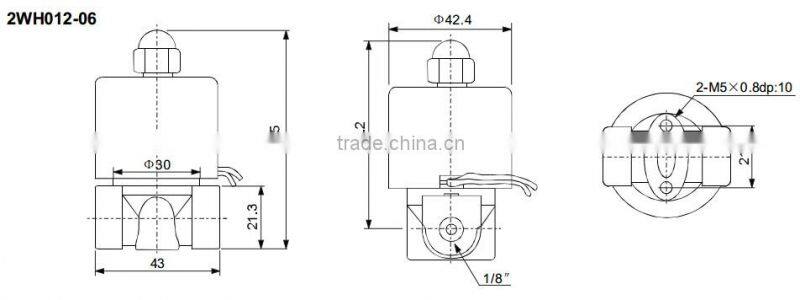

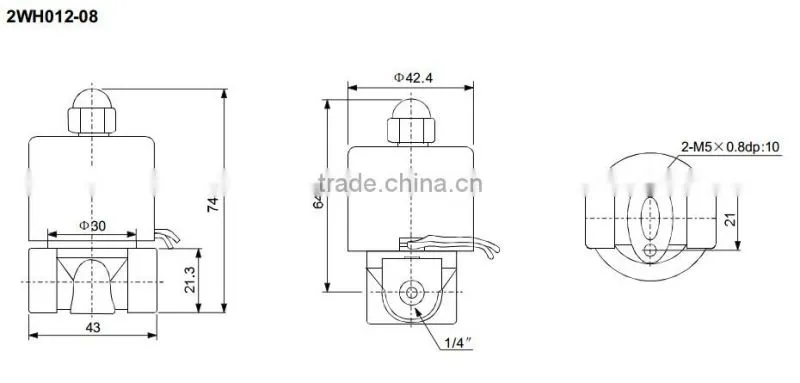

Dimensions and Sizes:
