2WB Series Stainless Steel Solenoid Valve
Features: 2WB Series Stainless Steel Solenoid Water Valve with thread size from G1/8" to G2".
1.Port size: G1/8"~ G2"
2.Motion pattern: Direct Action, diaphragm type
3.Working Medium: Air,Water,Oil,Gas
4.Type: Normal closed Type
5.Working Pressure: 0-1.0MPa.
6.Operating Temperature: -5-80°C
7.Voltage Range: ±10%
8.Material of valve body: Stainless steel
9.Material of seal: NPR,EPDM or VITON

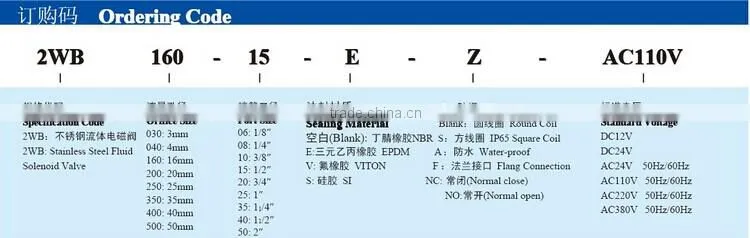

How To Order:
Specification:
| Working Medium | Air,Water,Oil,Gas |
| Motion Patern | Direct Drive,Diaphragm type |
| Type | Normal Closed Type |
| Working pressure | 0~1.0MPa |
| Operation Fluid Viscosity | ≤20 CST) |
| Operating Temperature Range | -5~80°C |
| Voltage Range | ±10% |
| Material of Valve Body | Stainless Steel |
| Material of Oil Seal | NBR,EPDM or VITON |
| Model | Orifice size(mm) | CV Value | Connection Size | Working Pressure | Max.Working Pressure |
| (MPa) | (MPa) | ||||
| 2WB025-06 | 3 | 0.23 | G1/8” | 0~0.7 | 1 |
| 2WB025-08 | G1/4” | ||||
| 2WB040-10 | 4 | 0.6 | G3/8” | ||
| 2WB160-10 | 16 | 4.8 | G3/8” | Water:0~0.5 | 1.05 |
| 2WB160-15 | G1/2” | Air:0~0.7 | |||
| 2WB200-20 | 20 | 7.6 | G3/4” | Oil:0~0.5 | |
| 2WB250-25 | 25 | 12 | G1” | Gas:0~0.7 | |
| 2WB350-35 | 35 | 24 | G1-1/4” | ||
| 2WB400-40 | 40 | 29 | G1-1/2” | ||
| 2WB500-50 | 50 | 48 | G2” |
| Power consumption | AC220V | 2.0W |
| DC12V,AC110V,AC380V | 2.5W | |
| DC24V | 3.0W | |
| AC24V | 3.5W | |
| Allowable voltage range | -15%~10% | |
| IP rate | IP65 | |
| Insulation rate | Class F | |
| Action | Internally piloted | |
| Min. activate time | 0.05 s | |
| Lubrication | Needless | |

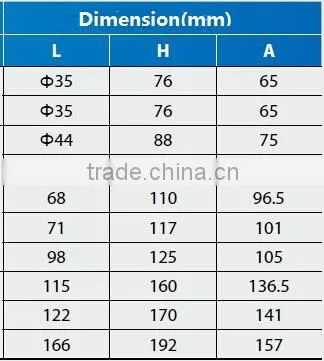

Dimensions and Sizes:
