Home > Industrial Equipment & Components > Valve > Ball Valve > US/2L Series 2 Way Steam Solenoid Valve-Brass Solenoid Valve

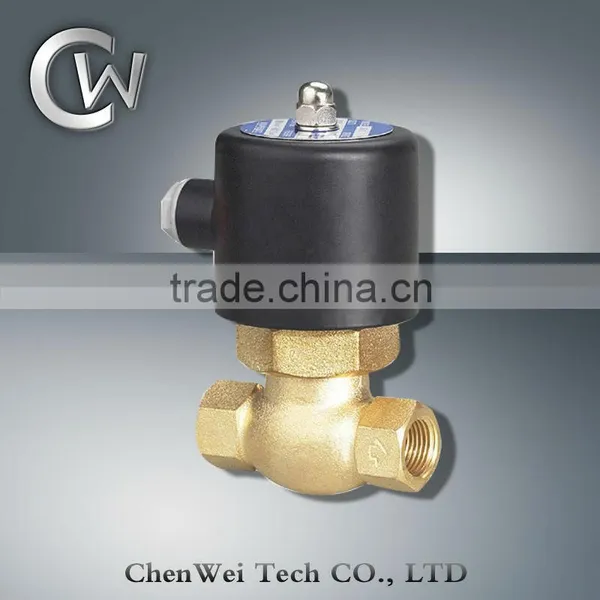

US/2L Series 2 Way Steam Solenoid Valve-Brass Solenoid Valve

US$ 10 - 20 MOQ: 2 Pieces

Key Specifications

Get Latest Price

Standard or Nonstandard:

Standard

Structure:

Regulating

Pressure:

Medium Pressure

Contact Supplier Request Quote Chat Now

Shanghai Chenwei Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ningbo or shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Standard or Nonstandard Standard

Structure Regulating

Pressure Medium Pressure

Power Pneumatic

Material Brass

Temperature of Media High Temperature

Media Other, air, water, steam

Port Size G1/2 to G2"

Place of Origin Zhejiang, China

Model Number US/2L

Brand Name CW

Specifications

1.US Series 2 way Steam Solenoid Valve-Brass Solenoid Valve
2.Medium: steam
3.Temperature:-5~+180 degree
4.port:G1/2 to G2

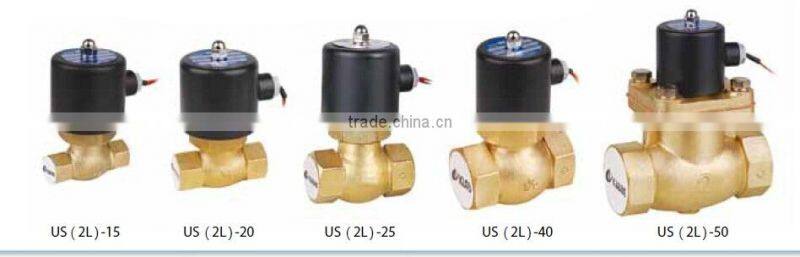

US/2L Series 2 way Steam Solenoid Valve-Brass Solenoid Valve

Features:

1) port size: 1/2" ~ 2"

2) Working Medium: steam, air, water

3) Action Type: pilot operated

4) Valve Body: Brass or Stainless Steel

5) Valve Control Style: NC (normal close)

6) Orifice Size: 17,22,30,50

7) Working Pressure: 0~1.5MPa

8) Max. Proof Pressure: 1.5MPa

9) Seal Material: PTFE

10) Working Temperature: -5~185°C

11) Wiring Form: lead wire type, DIN connector, explosion-proof coil

12) Voltage: DC12V, DC24V, AC24V, AC110V, AC220V ,AC380V 50/60HZ,

Specification:

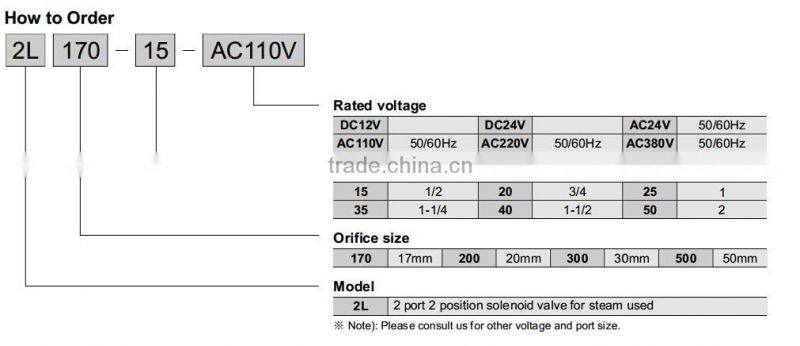

Model	2L170-15	2L170-20	2L200-25	2L300-35	2L400-40	2L500-50
Fluid	Air, Water, Steam
Action	internally pilot acting, normally closed
Type	2 port 2 position
Aperture (mm)	17mm		20mm	30mm		50mm
Cv value	4.8		12	20		48
Port size	G1/2''	G3/4''	G1''	G1-1/4''	G1-1/2''	G2"
Operation fluid viscosity	20 CST Below
Operating pressure	0.1 ~ 1.5MPa
Max. Proof pressure	2.25MPa
Operating temperature	-5 ~ 180C
Alowable Voltage range	±10% of rated voltage
Material of body	Brass
Material of oil seal	PTFE

Power consumption	AC220V	2.0W
	DC12V,AC110V,AC380V	2.5W
	DC24V	3.0W
	AC24V	3.5W
Allowable voltage range	-15%~10%
IP rate	IP65
Insulation rate	Class F
Action	Internally piloted
Min. activate time	0.05 s
Lubrication	Needless

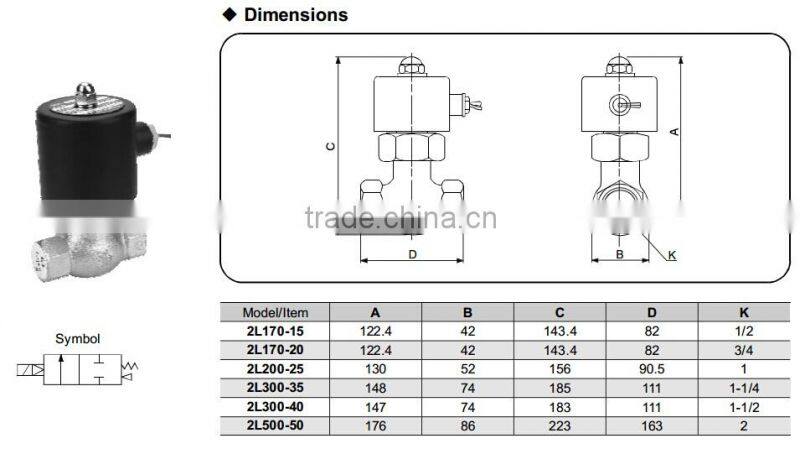

Dimensions and Sizes:

Shippment

1: Usually we ship your order by sea or by air...
2: We do our best to ship your order within 1 week after receiving your payment
3: We'll tell you the tracking number once your order has been sent.

Package
1:Inner packing: opp bag, then carton box for each product.
2:Outer packing: export standard carton, Foam outside protecting the goods against damage

Payment
1: We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal.

Why choose us
1: Various style for each products and completely series pneumatic products for you to choose from.
2: Large stock for fast shipping.
3: High quality with competitive price
4: Sample order & small quantity order is ok

5:Customize according to your special demand.
6: Provide free products information.
7. Reliable quality assured and active after-sell service

Feel free to contact us at anytime if you have any problems or questions on your purchase. We will resolve any problems such as damaged, not as described, missing parts, and lost items. All emails will be replied within 24 hours except Saturday. & Sunday and Chinese holidays. If you have any other requirements or questions, welcome to visit our website, or just contact with us directly. Thank you!
